Description
Eastman 30YE50V048B Description

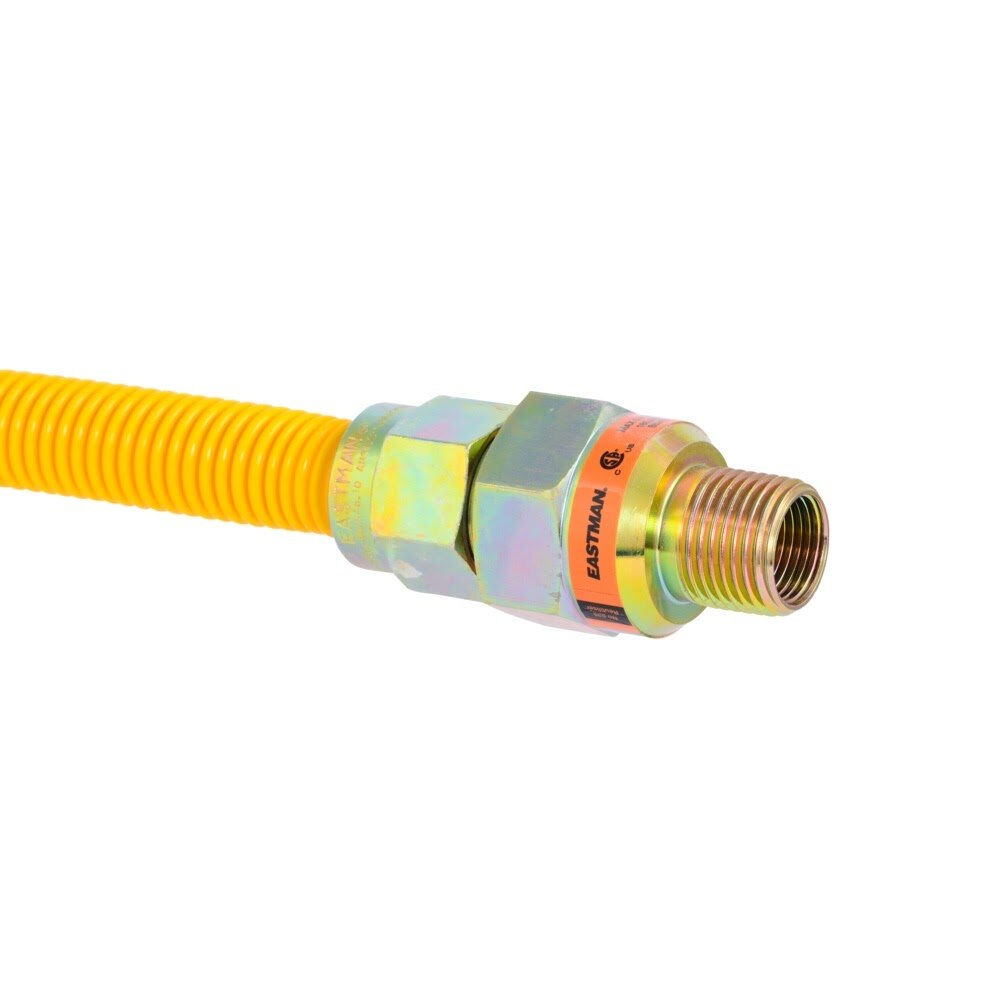

This Eastman gas connector is built with 5/8 in. OD stainless steel tubing and a yellow epoxy coating for added corrosion, chemical, and UV resistance. The 48 in. connector features 1/2 in. MIP x 1/2 in. MIP ends and an excess flow valve that helps restrict gas flow during a catastrophic rupture or disconnect. It is designed for gas ranges, boilers, furnaces, and other high-demand appliances and is approved for indoor and outdoor use.
Eastman 30YE50V048B Includes
- (1) 48 in. 5/8 in. OD coated stainless steel gas connector
- (1) 1/2 in. MIP fitting tapped 3/8 in. FIP
- (1) 1/2 in. MIP excess flow valve tapped 3/8 in. FIP
Eastman 30YE50V048B Features
- 5/8 in. OD x 48 in. gas connector for high-demand appliances
- 1/2 in. MIP x 1/2 in. MIP connections
- Excess flow valve helps restrict gas flow during catastrophic ruptures or disconnects
- Yellow epoxy coating helps resist corrosion, chemical stains, and UV exposure
- Stainless steel construction provides high tensile strength
- Deep corrugations enhance flexibility and maneuverability during installation
- Smooth burnished connector ends help seal with less torque
- Compatible with natural, manufactured, mixed, and liquefied petroleum gases and LP gas-air mixtures
- Approved for indoor and outdoor use
Eastman 30YE50V048B Specifications
| Product Type | Gas Connector |
| Outer Diameter | 5/8 in. |
| Length | 48 in. |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Inlet Fitting Type | MIP |
| Outlet Fitting Type | MIP |
| Material | Stainless Steel |
| Coating | Yellow epoxy coating |
| Valve Type | Excess Flow Valve |
| Working Pressure | 1/2 psi |
| Temperature Rating | -20 degrees F to 150 degrees F |
| Gas Type | Natural, manufactured, mixed and liquefied petroleum gases and LP gas-air mixtures |
| BTU Rating | Up to 106,000 BTU |
| Application | Gas ranges, boilers, furnaces, and smaller BTU residential tankless water heaters |
| Indoor/Outdoor | Indoor and outdoor use |
