Description
Eastman 30YE515036B Description

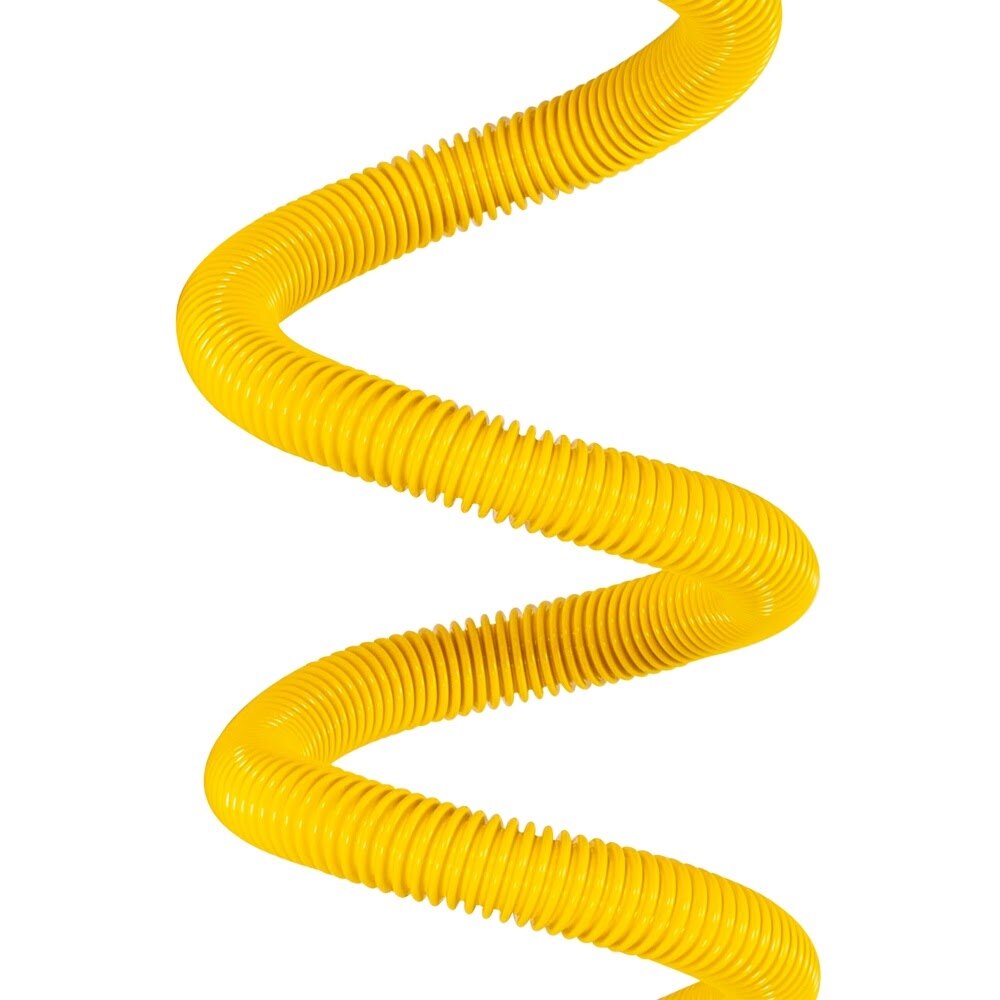

The Eastman 36 in. gas connector features a 5/8 in. OD stainless steel tube with a yellow epoxy coating and 1/2 in. FIP x 1/2 in. MIP fittings. Designed for furnaces, boilers, and other major gas appliances, it is leak tested for dependable indoor or outdoor installation.
Eastman 30YE515036B Includes
- (1) 36 in. 5/8 in. OD epoxy-coated gas connector
- (1) 1/2 in. FIP fitting
- (1) 1/2 in. MIP tapped 3/8 in. FIP fitting
Eastman 30YE515036B Features
- 5/8 in. OD stainless steel gas connector with 1/2 in. FIP x 1/2 in. MIP fittings
- Yellow epoxy coating helps resist corrosion, common household chemical stains, and UV exposure
- Approved for indoor and outdoor use
- 100 percent leak tested for dependable performance
- High tensile strength stainless steel is less susceptible to work hardening
- Smooth burnished connector ends help seal with less torque for easier installation
- Designed to connect furnaces, boilers, and other high-usage gas appliances to a shut-off valve
- Certified for appliances with gas ratings up to 125,000 BTU
Eastman 30YE515036B Specifications
| Length | 36 in. |
| Outer Diameter | 5/8 in. |
| Inlet Size | 1/2 in. |
| Inlet Fitting Type | FIP |
| Outlet Size | 1/2 in. |
| Outlet Fitting Type | MIP |
| Material | Stainless steel |
| Finish | Yellow epoxy-coated |
| Application | Furnace and boiler |
| Working Pressure | 1/2 psi |
| Packaging Type | Bagged |
| Indoor/Outdoor Use | Yes |
| BTU Rating | Up to 125,000 BTU |
| Each Shipping Weight | 0.91 lb |
