Description
Eastman 30YE555560 Description

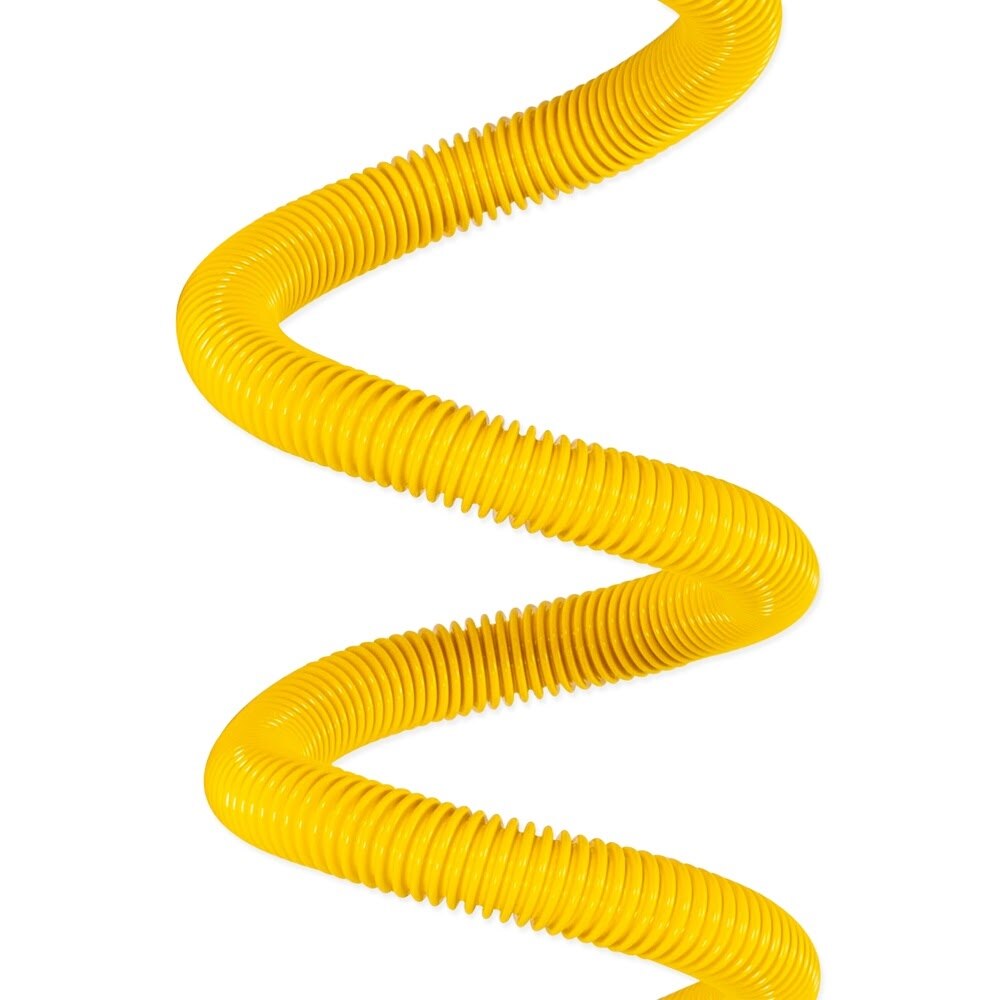

This Eastman gas connector features a 60 in. long, 5/8 in. OD corrugated stainless steel body with a yellow protective coating and 3/4 in. FIP x 3/4 in. FIP connections. Designed for most ranges, boilers, and other high-usage gas appliances, it is compatible with natural gas and LP installations, rated up to 93,200 BTUs, and approved for indoor or outdoor use.
Eastman 30YE555560 Includes
- (1) 60 in. 5/8 in. OD Gas Connector
- (2) 3/4 in. FIP Fittings
Eastman 30YE555560 Features
- 5/8 in. OD gas connector with 60 in. overall length
- 3/4 in. FIP inlet and 3/4 in. FIP outlet connections
- Corrugated stainless steel construction for flexibility
- Yellow protective coating helps resist corrosion, stains, and UV exposure
- Designed for most ranges, boilers, and other high-usage gas appliances
- Compatible with natural gas and LP applications
- Approved for indoor and outdoor use
- Rated for appliances up to 93,200 BTUs
- Factory leak tested for reliable performance
- Working temperature range of -20 to 150 Degree F
- Lead-free construction
- Backed by a 5-year limited warranty
Eastman 30YE555560 Specifications
| Type | Gas connector |
| Connector Length | 60 in. |
| Outside Diameter | 5/8 in. |
| Connection Size | 3/4 in. FIP x 3/4 in. FIP |
| Inlet Fitting End Type | FIP |
| Outlet Fitting End Type | FIP |
| Material | Corrugated stainless steel |
| Coating | Yellow epoxy coating |
| Fitting Material | Zinc |
| Gas Type | Natural Gas and LP |
| Appliance Compatibility | Most ranges and boilers |
| BTU Rating | 93,200 BTU |
| Maximum Pressure | 0.5 PSI |
| Working Temperature Range | -20 to 150 Degree F |
| Indoor/Outdoor Use | Yes |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Leak Tested | Yes |
| Lead-Free | Yes |
| Warranty | 5-year limited |
| Product Width | 1.30 in. |
| Product Height | 1.14 in. |
| Shipping Weight | 1.22 lb |
| Certifications | ANSI Z21.24/CSA 6.10, ANSI Z21.69/CSA 6.16, ANSI Z21.75/CSA 6.27 |
