Description
Eastman 60022 Description

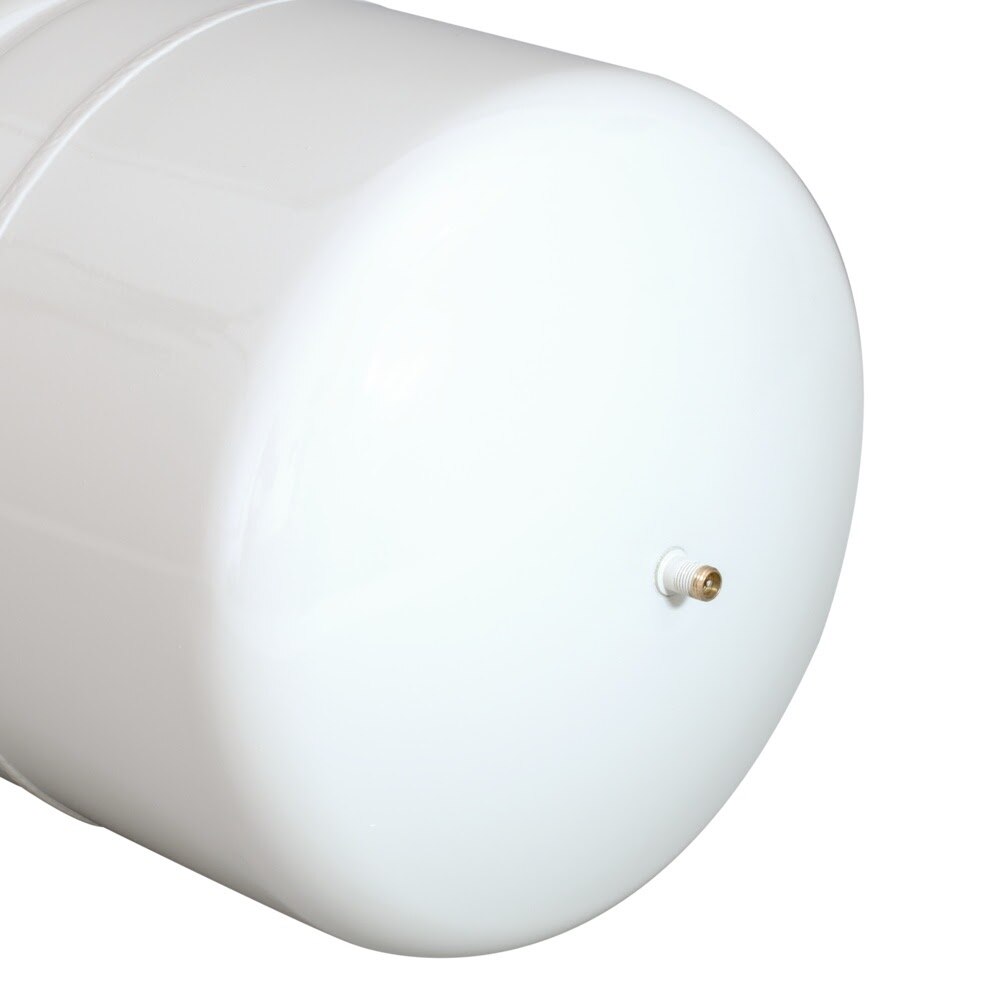

The Eastman thermal expansion tank helps protect residential water heater systems by absorbing pressure increases caused by thermal expansion. This 2 gallon tank is factory pre-charged to 40 PSI and features a 3/4 in. MIP connection, a butyl rubber diaphragm, and 304 stainless steel fittings for reliable performance with 30 to 160 gallon water heaters.
Eastman 60022 Includes
- (1) 2 Gallon Thermal Expansion Tank
Eastman 60022 Features
- Designed to help prevent dangerous pressure build-ups in water heater systems
- Suitable for residential water heaters from 30 gal. to 160 gal.
- Factory pre-charged to 40 PSI
- Built with a butyl rubber diaphragm
- Equipped with 304 stainless steel fittings
- 3/4 in. male pipe thread connection
- Maximum working pressure of 150 PSI
- Maximum operating temperature of 210 Degree F
- Helps prevent hot water from backflowing into the cold water line
- Complies with NSF-61 and Lead-Free requirements
Eastman 60022 Specifications
| Brand | Eastman |
| Part Number | 60022 |
| Product Type | Thermal Expansion Tank |
| Nominal Capacity | 2 gal. |
| Tank Volume | 2.1 gal. |
| Recommended Water Heater Size | 30 gal. to 160 gal. |
| Connection Size | 3/4 in. MIP |
| Factory Pre-Charge | 40 psi |
| Maximum Working Pressure | 150 psi |
| Maximum Operating Temperature | 210 Degree F |
| Minimum Air Charge | 80 psi |
| Fitting Material | 304 stainless steel |
| Diaphragm Material | Butyl rubber |
| Compliance | NSF-61, Lead-Free, UPC approved |
| Warranty | 6 year limited warranty |
| Product Width (in) | 7.87 |
| Product Length (in) | 7.87 |
| Product Height (in) | 12.20 |
| Product Weight (lbs) | 5.07 |
