Description

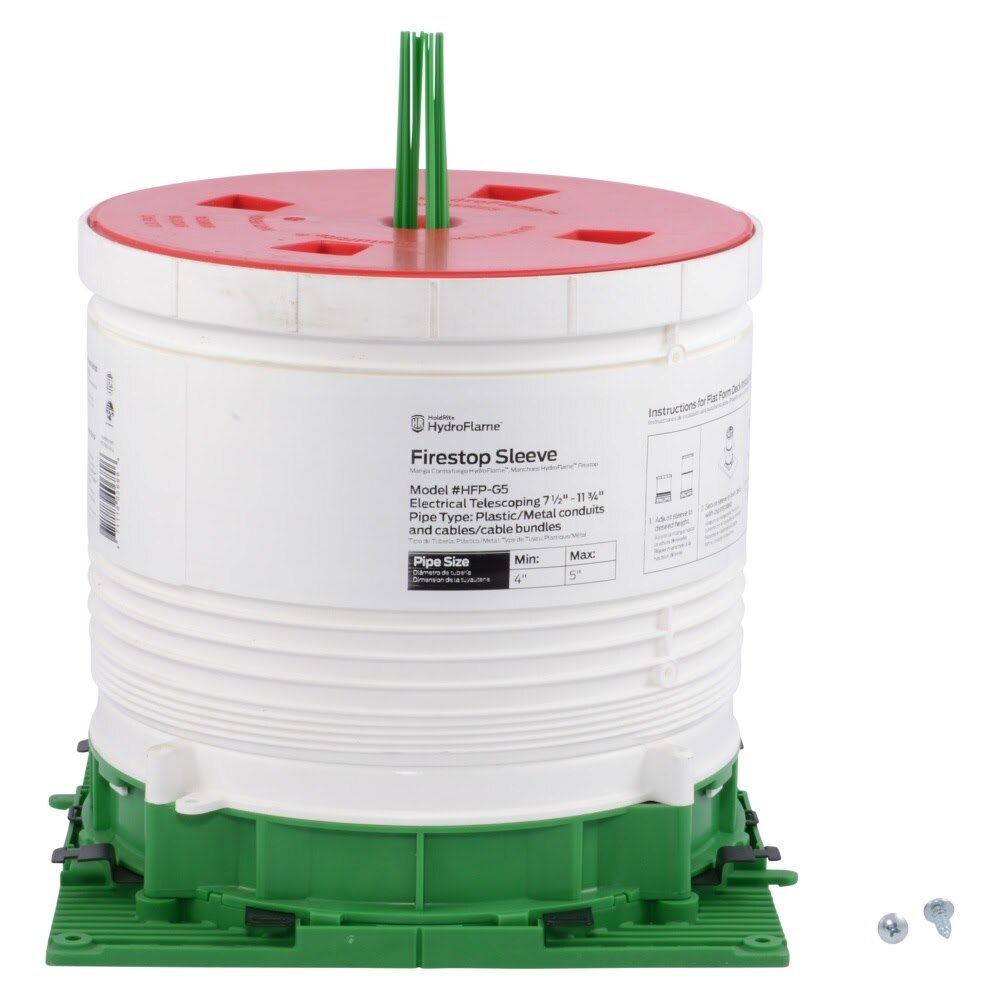

HoldRite HFP-G5 Description
The HoldRite HydroFlame Pro Series telescoping electrical firestop sleeve is designed for new commercial concrete floor construction and provides built-in fire, smoke, gas, and water protection. This adjustable sleeve fits 4 in. to 5 in. plastic or metal conduits, as well as cables or cable bundles, with a telescoping height range of 7-1/2 in. to 11-3/4 in.
HoldRite HFP-G5 Includes
- (1) Telescoping electrical firestop sleeve
- (1) Safety cap
- (1) Green locator whisker set
- (2) Screws
HoldRite HFP-G5 Features
- Adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments
- Can be cut down as low as 2-1/2 in.
- Built-in fire, smoke, gas, and water protection
- UL W-Rated seal provides watertight performance for most penetrant types and sizes
- Safety caps meet OSHA hole cover requirements
- Green locator whisker helps identify electrical penetrations above the slab after concrete is poured
- Green base helps identify electrical penetrations from underneath the slab
- Allows for contraction, expansion, movement, and off-center penetrants
- Interlocking base capability assists with layout alignment
- Reduces piping system noise transfer by maintaining annular spacing
- Suitable for flat deck concrete, post tension concrete slabs, and concrete over metal decking
- Extensions available for slabs over 11-3/4 in.
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- ASTM E90 acoustic isolation data available
- ASTM G21 mold and mildew tested
HoldRite HFP-G5 Specifications
| Brand | HoldRite |
| Model | HFP-G5 |
| Product Type | Electrical Firestop Telescoping Deck Sleeve |
| Series | HydroFlame Pro Series |
| Pipe Size | 4 in. to 5 in. |
| Compatible Penetrants | Plastic or metal conduits, cables, or cable bundles |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Minimum Cut-Down Height | 2-1/2 in. |
| Adjustment Increment | 1/4 in. |
| Application | New commercial concrete floor construction |
| Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| ULC Rating | 50 Pa |
| Each Length | 8 in. |
| Each Width | 7.87 in. |
| Each Height | 7.5 in. |
| Each Shipping Weight | 2.64 lb |
