HoldRite HFP-M3 Description

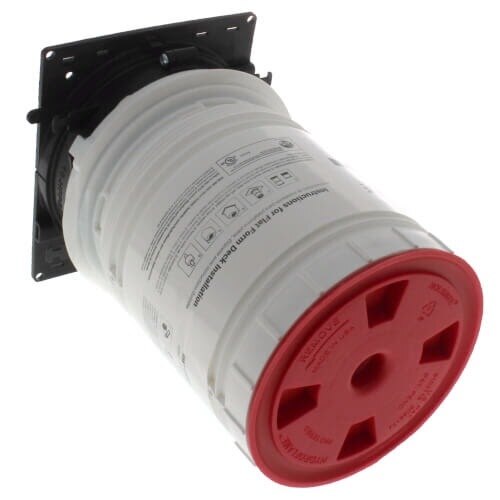

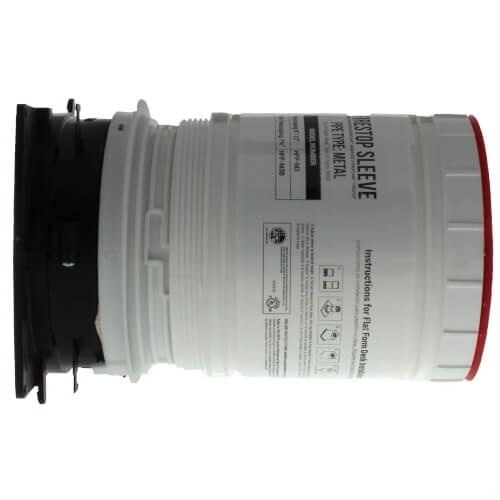

The HoldRite HydroFlame Pro Series HFP-M3 fire stop telescoping deck sleeve is designed for 2 in. to 3 in. metal pipe penetrations. Its adjustable telescoping body fits slab depths from 7-1/2 in. to 11-3/4 in. and helps provide fire, smoke, gas, and water protection in cast-in-place concrete and corrugated metal deck applications.
HoldRite HFP-M3 Includes
- (1) HydroFlame Pro Series Fire Stop Telescoping Deck Sleeve
HoldRite HFP-M3 Features
- Designed for 2 in. to 3 in. metal pipe penetrations
- Telescoping sleeve adjusts from 7-1/2 in. to 11-3/4 in. tall
- Suitable for flat concrete form decks cast in place
- Can be used with corrugated metal decks when a corrugated deck plate is required
- Height adjusts in 1/4 in. increments
- Can be cut as short as 2-1/2 in.
- Black base and black whiskers identify a metal piping system
- Includes locator whiskers to help identify buried sleeves and pipe type
- Built-in protection against fire, smoke, gas, and water
- UL Listed firestop device with 2 or 3 hour F-ratings
- UL W-Rated seal is water-tight for most penetrants
- Allows for contraction, expansion, movement, and off-center pipes
- Helps reduce piping system noise transfer by maintaining annular spacing
- Safety caps meet OSHA hole cover requirements
HoldRite HFP-M3 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Fire Stop Telescoping Deck Sleeve |
| Model | HFP-M3 |
| Nominal Penetrant Size | 2 in. to 3 in. |
| Penetrating Pipe Type | Metal |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Height Adjustment Increment | 1/4 in. |
| Minimum Cut Height | 2-1/2 in. |
| Deck Compatibility | Flat concrete form decks; corrugated metal decks with corrugated deck plate |
| Fire Rating | UL Listed, 2 or 3 hour F-ratings |
| Water Rating | UL W-Rated seal |
| UL 50 Pa Rating | Yes |
| Shipping Weight | 1.42 lb |
