Description
HoldRite HFP-P3 Description

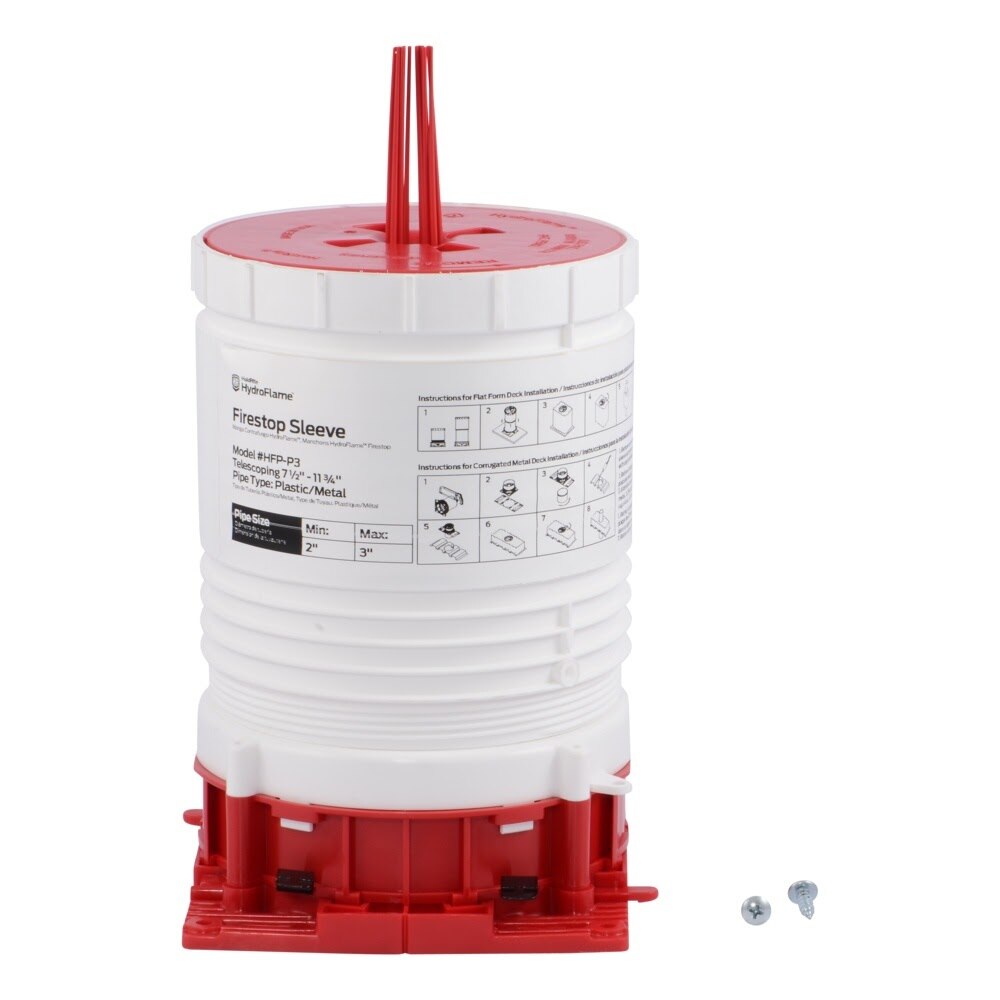

The HoldRite HydroFlame Pro Series HFP-P3 telescoping firestop deck sleeve is designed for 2 in. to 3 in. plastic or metal pipe penetrations and adjusts from 7-1/2 in. to 11-3/4 in. tall in 1/4 in. increments. It provides built-in fire, smoke, gas and water protection for flat concrete form decks or corrugated metal decks while allowing for pipe movement and off-center installation.
HoldRite HFP-P3 Includes
- (1) Telescoping firestop deck sleeve
- (1) Safety cap
- (1) Locator whisker
- (2) Mounting screws
HoldRite HFP-P3 Features
- Telescoping sleeve adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments
- Can be cut as short as 2-1/2 in.
- Designed for 2 in. to 3 in. plastic or metal pipe penetrations
- Suitable for flat concrete form decks and corrugated metal decks
- Built-in fire, smoke, gas and water protection
- UL W-Rated seal provides watertight performance for most penetrant types and sizes
- Allows contraction, expansion, movement and off-center pipe installations
- Helps reduce piping system noise transfer by maintaining annular spacing
- Locator whiskers help identify buried sleeves and pipe type
- Safety cap helps meet OSHA hole cover requirements
- Interlocking base assists with layout alignment
- Tested to ASTM E814, UL 1479 and CAN/ULC S115 standards
HoldRite HFP-P3 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-P3 |
| Product Type | Telescoping firestop deck sleeve |
| Compatible Pipe Material | Plastic or metal |
| Minimum Pipe Size | 2 in. |
| Maximum Pipe Size | 3 in. |
| Adjustable Height Range | 7-1/2 in. to 11-3/4 in. |
| Height Adjustment Increment | 1/4 in. |
| Minimum Cut Length | 2-1/2 in. |
| Deck Compatibility | Flat concrete form decks; corrugated metal decks with corrugated deck plate |
| Protection Type | Fire, smoke, gas and water |
| UL Rating | W-Rated seal |
| Standards Tested | ASTM E814, UL 1479, CAN/ULC S115 |
| Acoustic Test Data | ASTM E90 |
| Mold and Mildew Test | ASTM G21 |
| FBC Compatibility | CPVC |
| Color Identification | Red base and red whiskers |
| Each Shipping Weight | 1.46 lb |
| Case Quantity | 10 |
