Description

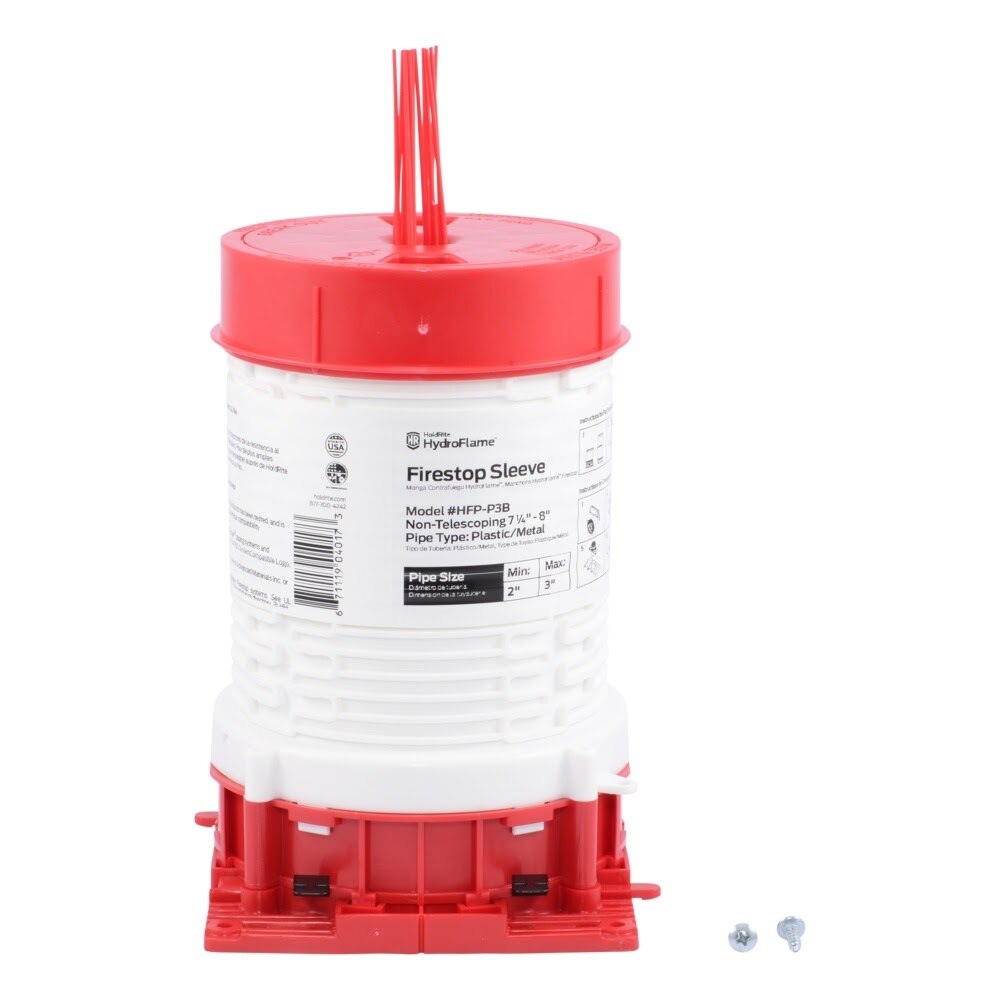

HoldRite HFP-P3B Description
The HoldRite HydroFlame Pro Series HFP-P3B firestop deck sleeve is designed for 2 in. to 3 in. plastic or metal pipe penetrations in flat concrete form decks and corrugated metal deck applications. This non-telescoping sleeve features an adjustable safety cap for 7-1/4 in. to 8 in. heights, can be cut as short as 3-1/2 in., and provides built-in fire, smoke, gas, and water protection.
HoldRite HFP-P3B Includes
- (1) Firestop Deck Sleeve
- (1) Adjustable Safety Cap
- (1) Locator Whisker Set
- (2) Screws
HoldRite HFP-P3B Features
- Designed for 2 in. to 3 in. plastic or metal pipe penetrations
- Non-telescoping sleeve with adjustable cap
- Height adjusts from 7-1/4 in. to 8 in.
- Can be cut down to as short as 3-1/2 in.
- Suitable for flat concrete form deck installations
- Works with corrugated metal decks when used with a corrugated deck plate
- Compatible with insulated and non-insulated pipes
- Includes locator whiskers to help identify buried sleeves and pipe type
- Dimensions on the sleeve allow simple height adjustment when cutting
- Safety cap meets OSHA hole cover requirements
- UL Listed firestop device with 2 or 3 hour F-ratings
- Built-in fire, smoke, gas, and water protection
- UL W-Rated seal provides water-tight performance for most penetrants
- Allows for contraction, expansion, movement, and off-center pipes
- Helps reduce piping system noise transfer by maintaining annular spacing
- Interlocking base capability assists with layout alignment
HoldRite HFP-P3B Specifications
| Series | HydroFlame Pro Series |
| Model | HFP-P3B |
| Product Type | Firestop Deck Sleeve |
| Sleeve Type | Non-Telescoping |
| Compatible Pipe Type | Plastic and Metal |
| Pipe Size Range | 2 in. to 3 in. |
| Height Range | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 3-1/2 in. |
| Cap Type | Adjustable Safety Cap |
| Material | UL Listed Intumescent Composite |
| Main Sleeve Body and Safety Cap Material | Polypropylene |
| Mid-Body Seal Material | Thermoplastic Rubber (TPR) |
| Locator Whisker Material | Polypropylene |
| Fire Ring Material | 24GA CRS |
| Deck Compatibility | Flat concrete form decks and corrugated metal decks |
| Pipe Insulation Compatibility | Insulated and non-insulated pipes |
| Fire Rating | UL Listed 2 or 3 hour F-ratings |
| Water Rating | UL W-Rated seal |
| Mold and Fungus Resistance | ASTM G-21 |
| Interlocking Base | Yes |
| Box Quantity | 10 |
| Each Shipping Weight | 1.2 lb |
| Each Length | 5.888 in. |
| Each Width | 5.324 in. |
| Each Height | 7.454 in. |
