Description
HoldRite HFP-P4 Description

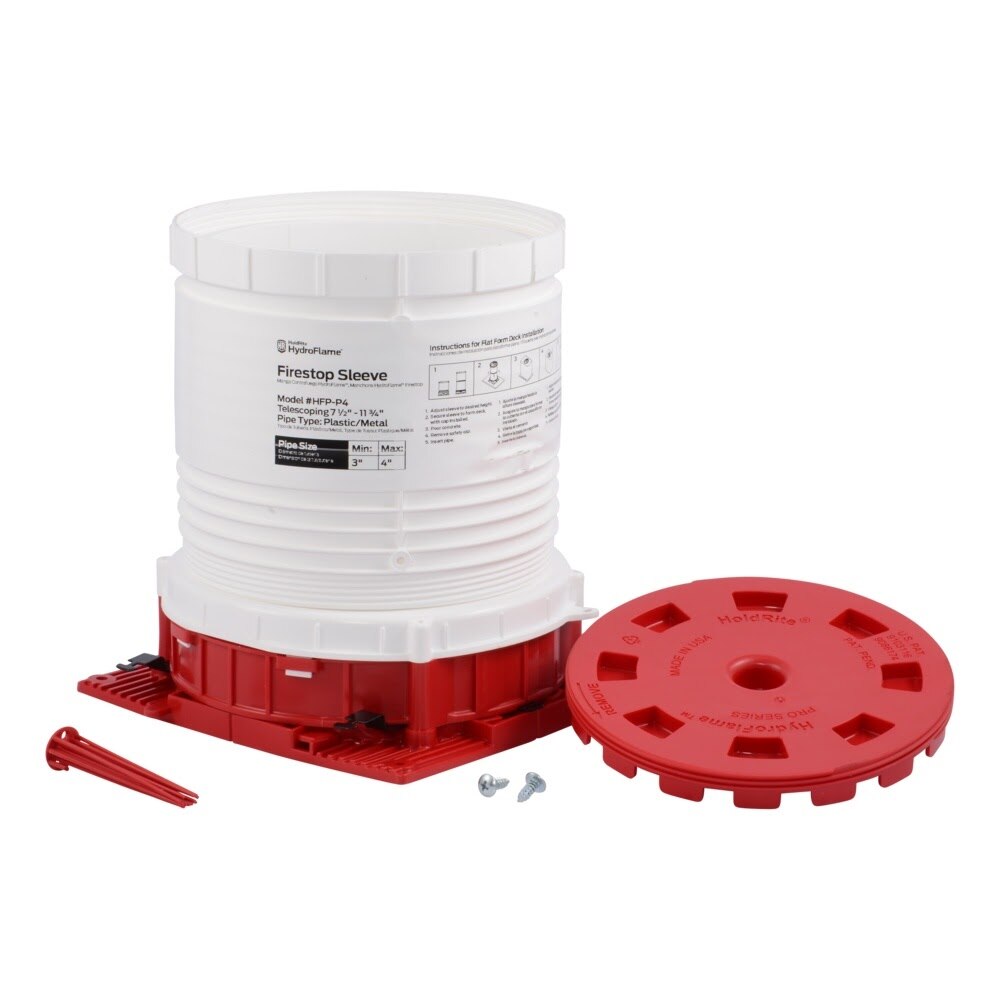

The HoldRite HydroFlame Pro Series telescoping firestop deck sleeve is designed for 3 in. to 4 in. plastic or metal pipe penetrations. Its adjustable telescoping body installs from 7-1/2 in. to 11-3/4 in. tall in 1/4 in. increments, helping eliminate jobsite cutting while providing built-in fire, smoke, gas, and water protection for flat concrete form decks or corrugated metal decks.
HoldRite HFP-P4 Includes
- (1) HydroFlame Pro Series Fire Stop Telescoping Deck Sleeve
- (1) Safety Cap
- (1) Locator Whisker
- (2) Screws
HoldRite HFP-P4 Features
- Telescoping design adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments
- Can be cut down to as short as 2-1/2 in.
- Designed for 3 in. to 4 in. plastic or metal pipe penetrations
- Built-in fire, smoke, gas, and water protection
- UL W-Rated sleeve design is watertight for most penetrant types and sizes
- Allows for contraction, expansion, movement, and off-center pipes
- Helps reduce piping system noise transfer by maintaining annular spacing
- Includes locator whiskers for buried sleeve location and pipe type identification
- Safety caps meet OSHA hole cover requirements
- Interlocking base capability assists with layout alignment
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- FBC compatible for CPVC
HoldRite HFP-P4 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-P4 |
| Product Type | Fire Stop Telescoping Deck Sleeve |
| Pipe Size | 3 in. to 4 in. |
| Pipe Type | Plastic/Metal |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Adjustment Increment | 1/4 in. |
| Minimum Cut Height | 2-1/2 in. |
| Each Length | 6.75 |
| Each Width | 6.75 |
| Each Height | 7.625 |
| Each Shipping Weight | 1.92 lb |
| ULC Rating | 50 Pa |
| Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Mold and Mildew Standard | ASTM G21 |
| UPC | 671119040036 |
