Description
HoldRite HFP-P4B Description

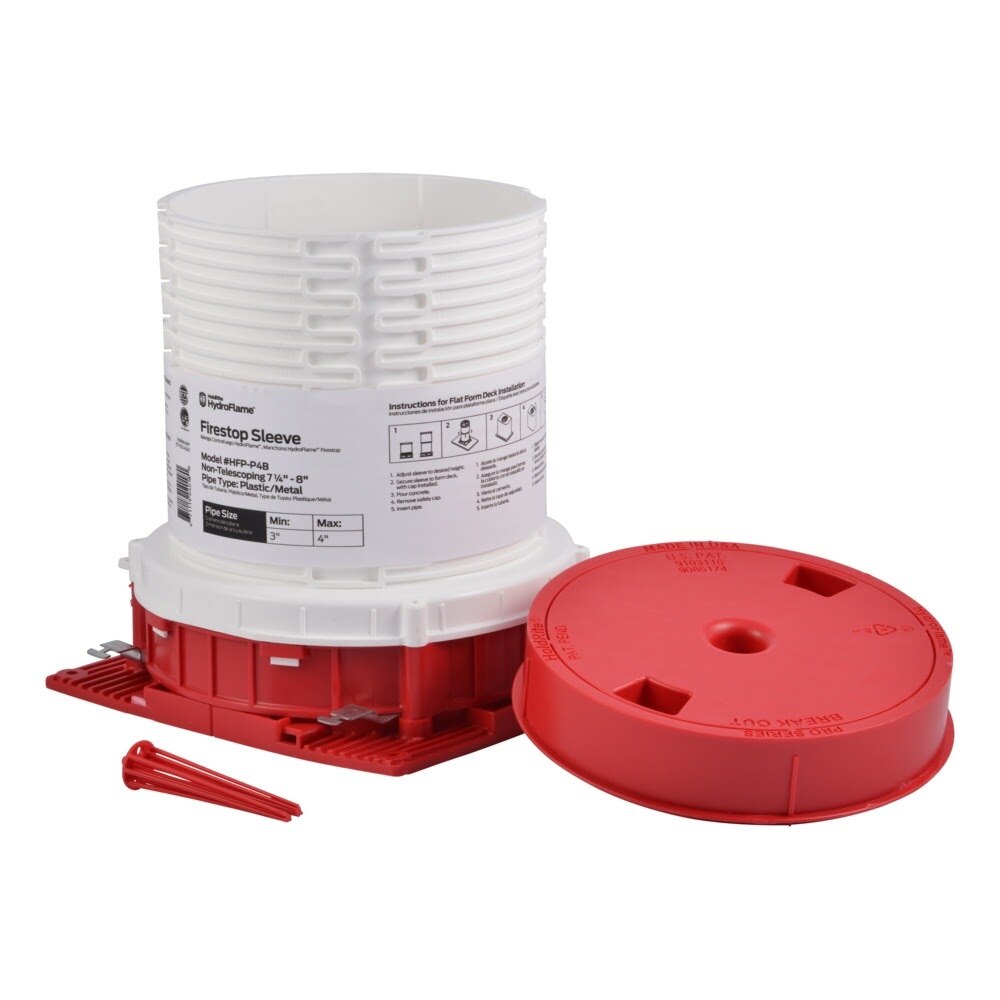

The HoldRite HydroFlame Pro Series firestop deck sleeve is designed for 3 in. to 4 in. plastic or metal pipe penetrations in flat concrete form decks. It features an adjustable cap for 7-1/4 in. to 8 in. sleeve height, built-in fire, smoke, gas, and water protection, and locator whiskers to help identify pipe type and locate buried sleeves.
HoldRite HFP-P4B Includes
- (1) HydroFlame Pro Series firestop deck sleeve
- (1) Adjustable cap
- (1) Locator whisker set
HoldRite HFP-P4B Features
- Fits 3 in. to 4 in. plastic or metal pipe penetrations
- Adjustable cap allows sleeve height from 7-1/4 in. to 8 in.
- Can be cut down to as short as 3-1/2 in.
- Designed for use with flat concrete form decks
- Built-in fire, smoke, gas, and water protection
- Locator whiskers help locate buried sleeves and identify pipe type
- Dimensions on the sleeve support simple height adjustment when cutting
- Safety cap meets OSHA hole cover requirements
- UL W-Rated seal is water-tight for most penetrants
- Allows for contraction, expansion, movement, and off-center pipes
- Helps reduce piping system noise transfer by maintaining annular spacing
- Interlocking base capability assists with layout alignment
- Also suitable for floor drains, shower drains, closet flanges, multi-pipe penetrations, and line sets
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- ASTM E90 acoustic isolation data available
- ASTM G21 mold and mildew data available
- FBC compatible for CPVC
HoldRite HFP-P4B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-P4B |
| Product Type | Firestop deck sleeve with adjustable cap |
| Pipe Material Compatibility | Plastic or metal |
| Minimum Pipe Size | 3 in. |
| Maximum Pipe Size | 4 in. |
| Sleeve Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 3-1/2 in. |
| Installation Type | Flat concrete form deck |
| Adjustment Increment | 1/4 in. |
| Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Seal Rating | UL W-Rated |
| Product Length | 6.875 in. |
| Product Width | 6.75 in. |
| Product Height | 7.875 in. |
| Product Weight | 1.61 lb |
