Description
HoldRite HFP-P5 Description

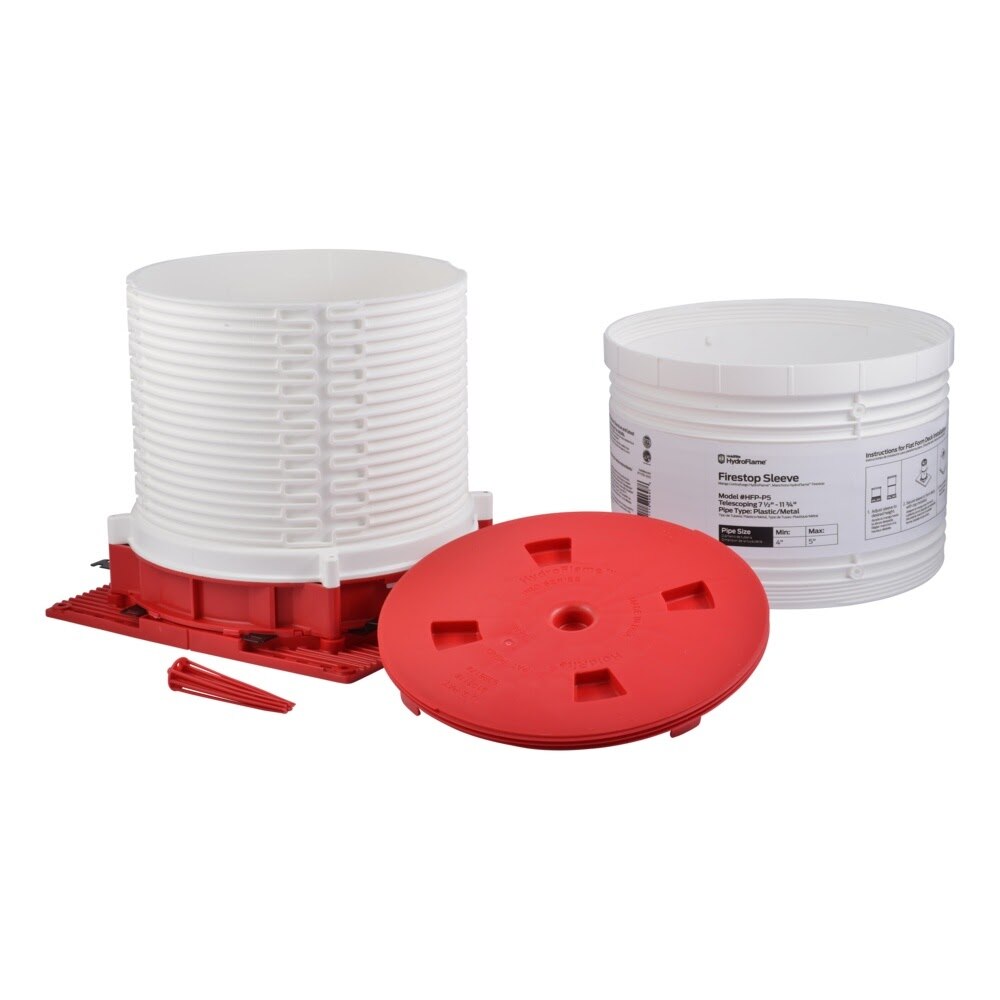

The HoldRite HydroFlame Pro Series telescoping firestop deck sleeve is designed for 4 in. to 5 in. plastic or metal pipe penetrations. Its telescoping body adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments for fast installation on concrete form decks, while helping provide fire, smoke, gas, and water protection.
HoldRite HFP-P5 Includes
- (1) HydroFlame Pro Series Firestop Telescoping Deck Sleeve
HoldRite HFP-P5 Features
- Telescoping design adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments
- Can be cut as short as 2-1/2 in.
- Designed for 4 in. to 5 in. plastic or metal pipe penetrations
- Built-in fire, smoke, gas, and water protection
- UL W-Rated sleeve design is watertight for most penetrant types and sizes
- Allows for contraction, expansion, movement, and off-center pipes
- Helps reduce piping system noise transfer by maintaining annular spacing
- Interlocking base assists with layout alignment
- Safety caps meet OSHA hole cover requirements
- Locator whiskers help identify buried sleeves and pipe type
HoldRite HFP-P5 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Firestop Telescoping Deck Sleeve |
| Model | HFP-P5 |
| Pipe Compatibility | Plastic or Metal |
| Pipe Size Min | 4 in. |
| Pipe Size Max | 5 in. |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Adjustment Increment | 1/4 in. |
| Minimum Cut Length | 2-1/2 in. |
| UL Rating | W-Rated |
| Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Each Width | 8 in. |
| Each Length | 8 in. |
| Each Height | 8.25 in. |
| Each Shipping Weight | 3.05 lb |
