Description
HoldRite HR-FR-M-0 Description

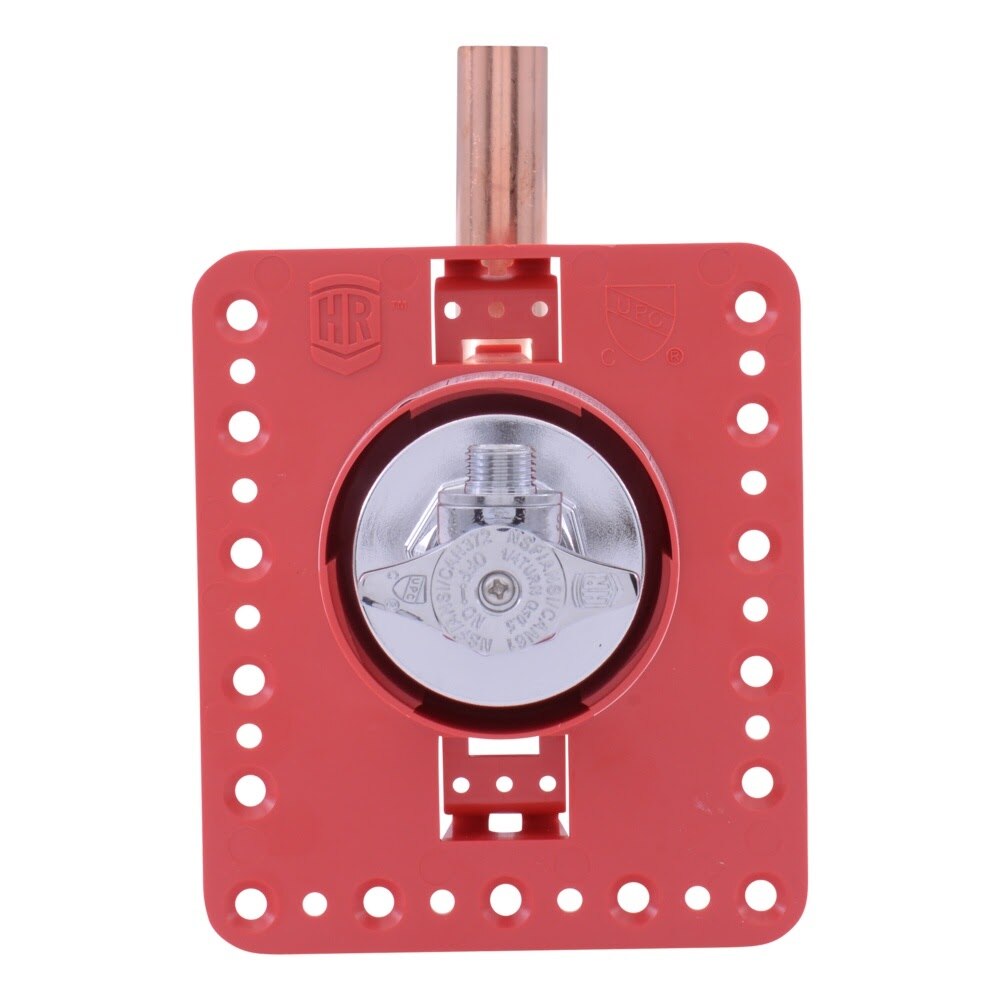

The HoldRite fire rated fixture outlet box assembly is designed for commercial and residential plumbing rough-ins and features a 1/2 in. copper inlet with a 1/4 in. OD compression outlet. It comes fully assembled with a 1/4 turn angle supply valve and protective debris cover, and can be mounted between studs or directly to a stud for lavatory, sink, and toilet installations.
HoldRite HR-FR-M-0 Includes
- (1) Fire Rated Fixture Outlet Box Assembly
- (1) 1/4 Turn Angle Supply Valve
- (1) Protective Debris Cover
HoldRite HR-FR-M-0 Features
- Fire rated outlet box assembly for commercial and residential plumbing applications
- 1/2 in. copper inlet with 1/4 in. OD compression outlet
- Includes a 1/4 turn angle supply valve
- Fully assembled out of the bag
- Tailpiece provides near 360 Degree movement for flexible installation orientation
- Copper tailpiece extends beyond the body for easier inlet connection tool access
- Threaded protective debris cover installs and removes without extra tools or screws
- Chrome lock nut allows z-axis movement for multiple drywall layer and cabinet wall installations
- Small footprint with a 2.5 in. sheetrock hole
- Compatible with bracket mounting or direct stud mounting
- Suitable for lavatory, sink, and toilet installations
HoldRite HR-FR-M-0 Specifications
| Product Type | Fixture Outlet Box Assembly |
| Fire Rated | Yes |
| Inlet Size | 1/2 in. |
| Outlet Size | 1/4 in. |
| Material | Copper |
| Inlet Type | Copper |
| Outlet Type | Compression |
| Valve Type | 1/4 Turn Angle Supply Valve |
| Maximum Pressure | 125 PSI |
| Maximum Temperature | 160 F |
| Application | Plumbing |
| Common Applications | Lavatory, Sink, Toilet |
