Description
HoldRite UDD-2000 Description

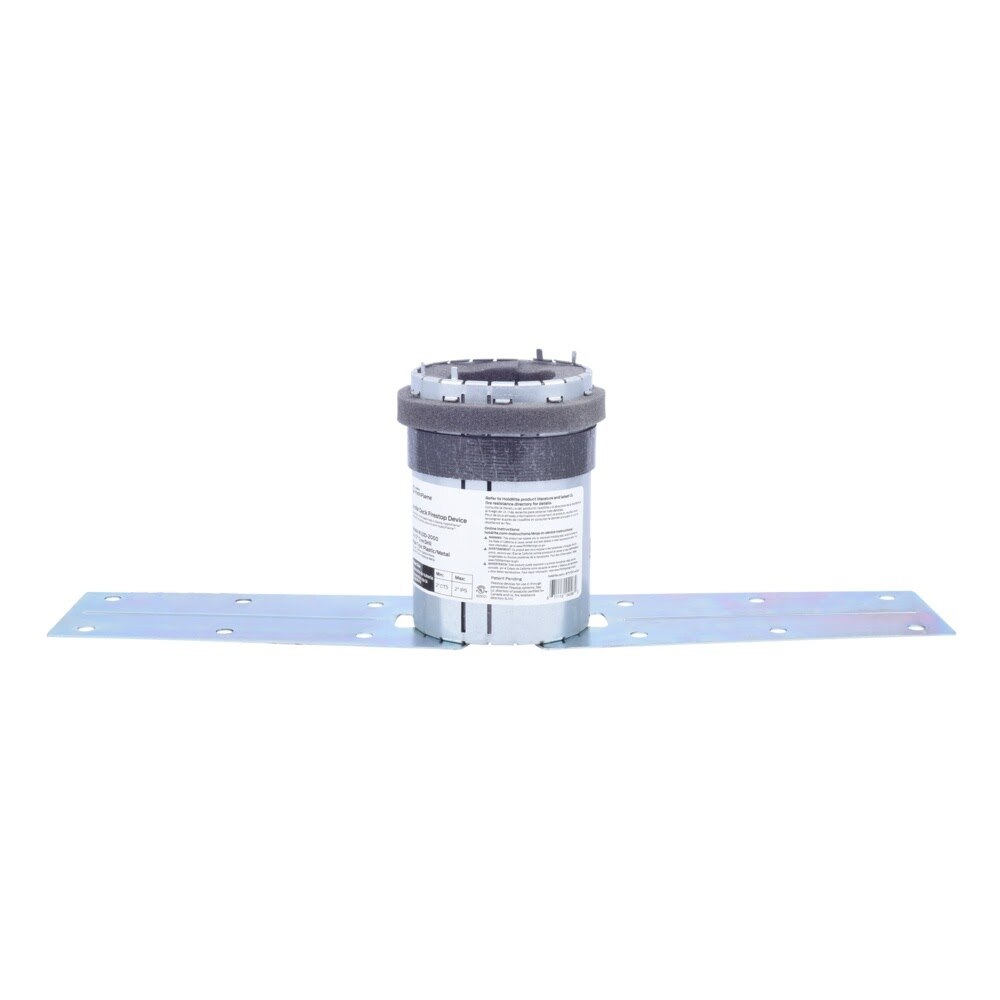

The HoldRite HydroFlame UDD-2000 is a 2 in. under deck firestop device designed for core-drilled holes in concrete floors. It installs from the top or bottom side of the deck and is suitable for corrugated metal, flat form, and precast deck applications with metallic, non-metallic, or insulated metallic penetrants.
HoldRite UDD-2000 Includes
- (1) 2 in. Under Deck Firestop Device
HoldRite UDD-2000 Features
- Designed to provide firestop protection for core-drilled holes in concrete floors
- Modular design allows installation from the top or bottom side of the deck
- Integrated attachment features support standard 1/4 in. expansion bolts or screw anchors
- Sized to span the pitch of corrugated decks for easier placement regardless of hole position
- Compatible with corrugated metal, flat form, and precast decks
- Suitable for metallic, non-metallic, and insulated metallic penetrants
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- UL systems available for concrete thicknesses from 2-1/2 in. to 12 in.
HoldRite UDD-2000 Specifications
| Brand | HoldRite |
| Series | HydroFlame |
| Product Type | Under Deck Firestop Device |
| Device Size | 2 in. |
| Installation | Top or bottom side of deck |
| Compatible Deck Types | Corrugated metal, flat form, precast |
| Compatible Penetrants | Metallic, non-metallic, insulated metallic |
| Anchor Compatibility | 1/4 in. expansion bolts or screw anchors |
| Concrete Thickness Range | 2-1/2 in. to 12 in. |
| Testing Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Product Length (in) | 15.89 |
| Product Width (in) | 3.72 |
| Product Height (in) | 4.96 |
| Shipping Weight (lb) | 1.177 |
| Case Quantity | 6 |
| Minimum Order Quantity | 6 |
