Description
Reed 09165 Description

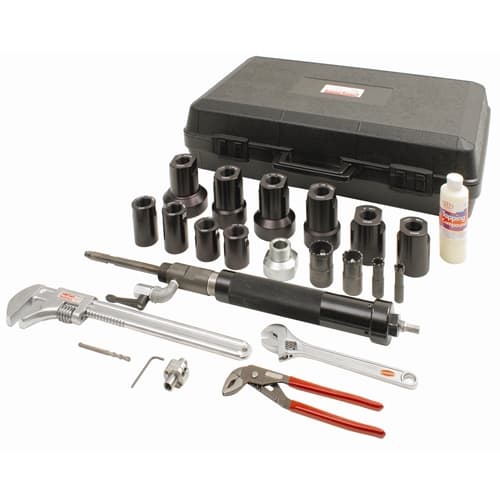

Reed’s Feed Tap™ is a great waterworks tool that drills through PVC, PE, cast iron and ductile iron pipe while under pressure using a corporation stop inserted into a service saddle. The compact design, featuring a separate, independent feed control for advancing the heavy-duty shell cutter into the pipe, allows the user to easily complete the tap using a drill (not included) for cast and ductile iron, or manual power (7/16” wrench) for PVC/PE and other plastic pipe. The independent feed control advances the shell cutter for tapping PVC pipe as recommended by Uni-Bell PVC Pipe Association. The FTB Feed Tap consists of the base unit which allows the user to purchase shell cutters and corporation adapters separately, as needed. A complete kit is sold as FT2000UNIV. The kit contains both a coupon retaining drill bit, CRPD25 and two sets of coupon retaining magnets. The magnets work well on ductile iron taps and the CRPD25 bit works on all types of pipe taps. The retaining method used is up to the individual operator. Plastic Pipe only FTP200UNIV is used for manual drilling operations using Reed’ s proven PE/PVC "PL series" shell cutters. The FTP2000UNIV comes complete with all corporation adapters, shell cutters, shell cutter adapters, and a ratchet wrench with socket to cover ¾” to 2” services in PVC and PE. Each machine ships with a sturdy carrying case. Review the Feed Tap™ Operator’s Manual to choose the model best-suited to the job.
Reed 09165 Includes
- (1) Feed Tap Kit
Reed 09165 Features
- FT2000UNIV kit contains machine, corp adapters and cutters to saddle tap ¾" – 2" for flare, compression and NPT applications.
- Compact design, featuring a separate, independent feed control for advancing the heavy-duty shell cutter into the pipe, allows the user to easily complete the tap using a drill.
- To saddle tap cast/ductile iron pipe, use drill power.
- According to Uni-Bell PVC Pipe Association recommendations, PVC and other plastic pipe must be tapped manually. Add on Reed's #04428 and #04429 as the ratchet wrench and socket to fit the Feed Tap machine.
Reed 09165 Specifications
Length | 25.5 |
Width | 4.5 |
Height | 2.5 |
