Description
Ridgid 40818 Description

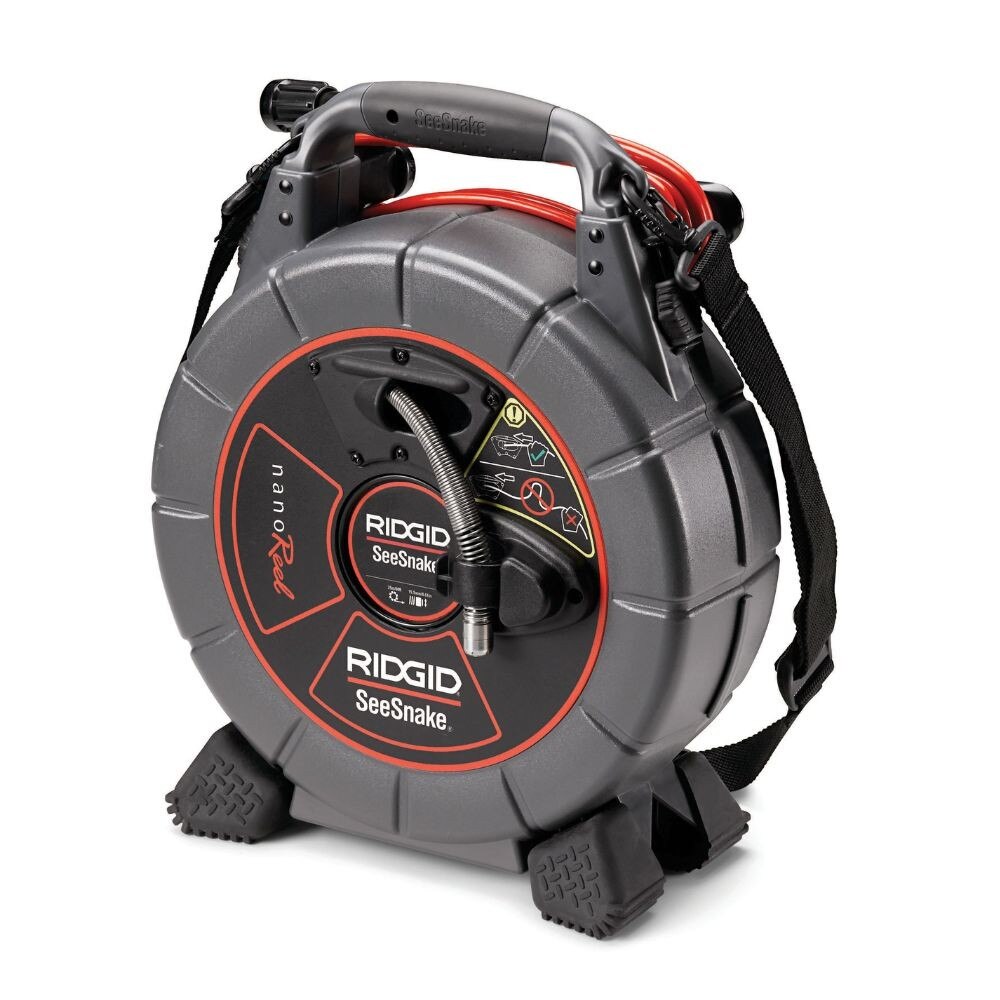

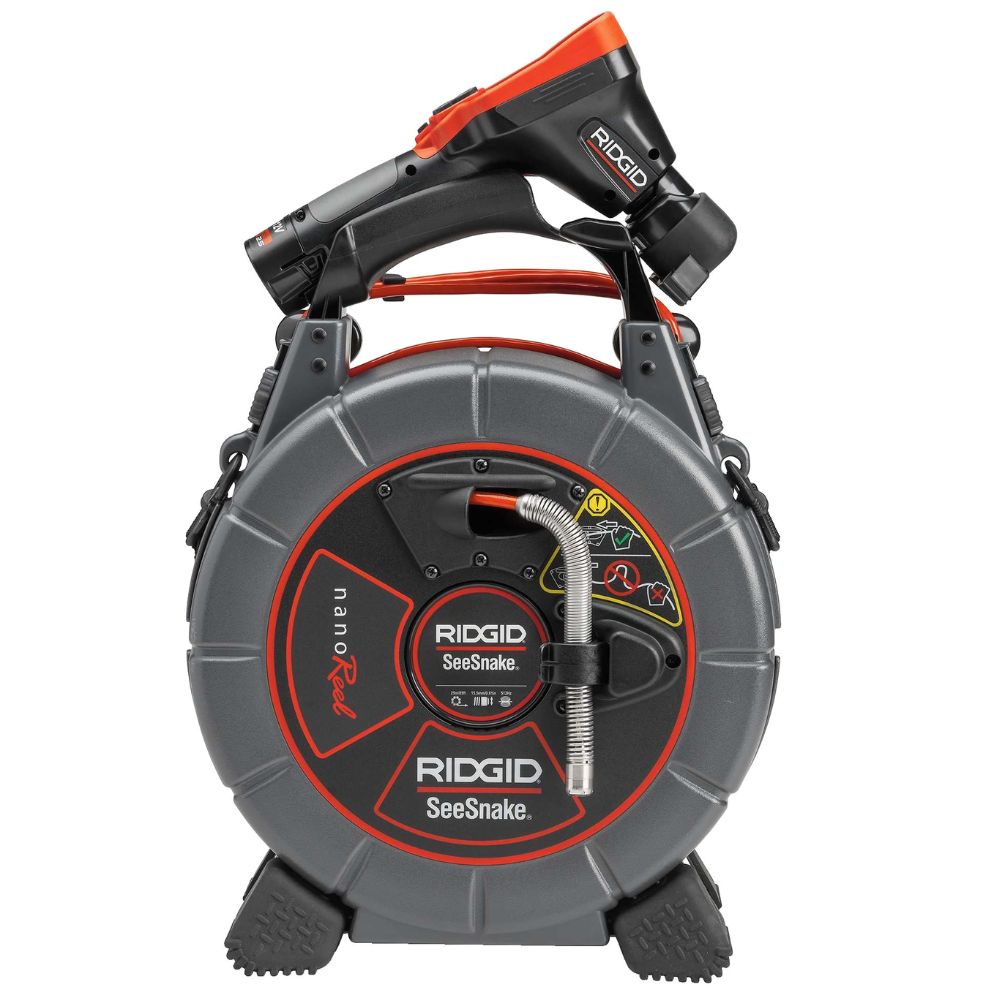

The nanoReel system opens up new possibilities in long run small diameter inspections. Applications, including HVAC and utility lines, where only bore scopes could reach are now easier to inspect: boiler tubes, supply lines, sprinkler systems, and a wide array of specialty applications. Includes connection cable for micro CA-350 monitor.
Ridgid 40818 Includes
- (1) NanoReel N85S Camera, Reel

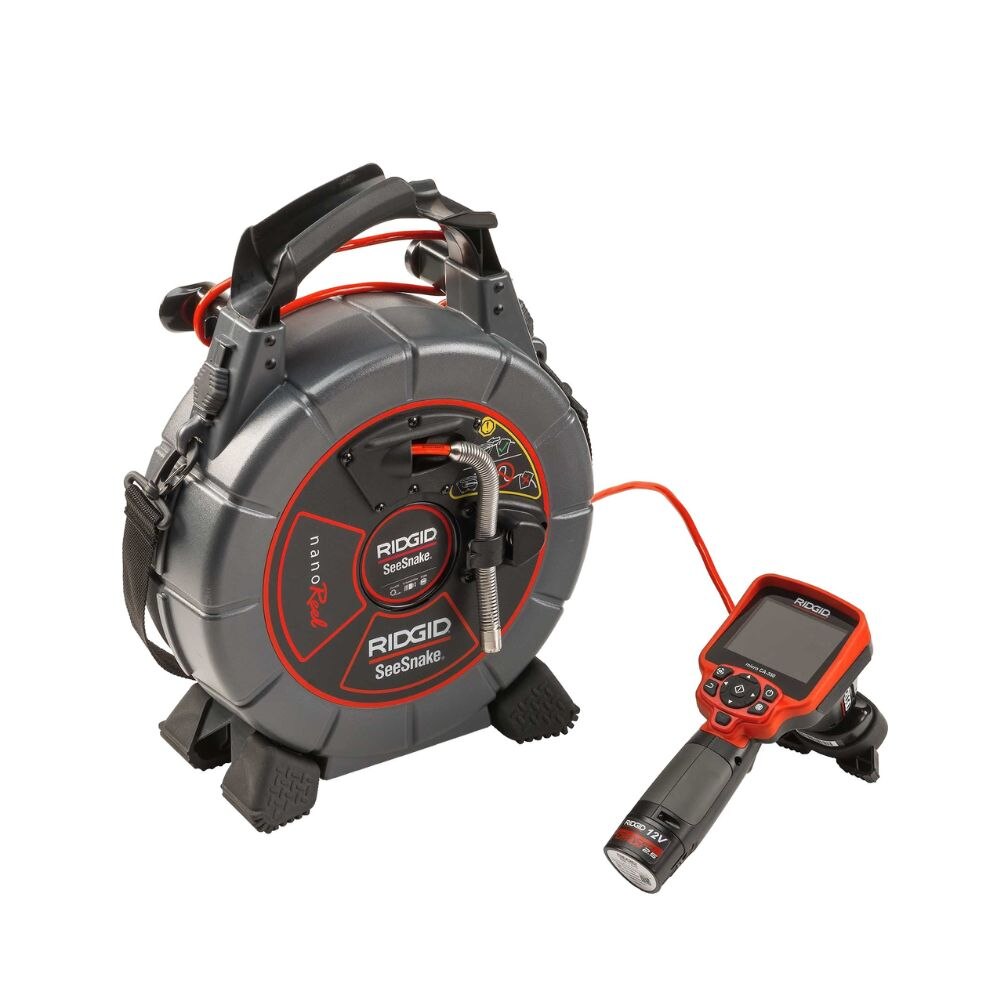

- (1) CA-350 Inspection Camera with Battery/Charger
- (1) Operator’s Manual
- (1) Instructional DVD
- (2) Ball Guides
Ridgid 40818 Features
- Small diameter and tight turn radius camera allows lines up to 85' (25 m) to be inspected with tight turns in 1" (25 mm) lines
- Lightweight and compact unit allows for easy transport and efficient storage
- Interchangeable drums let you change out the inner drum depending on the application
- L100/L100C – 1 1?2" to 5" (40 - 125 mm) lines with a stiffer push cable allowing you to inspect lines up to 100' (30 m)
- D30 and D65S – Small diameter with tight turns, 1 1?2" to 4" (40 - 100 mm) P-traps, toilet traps, pool lines up to 65' (20 m)
- N85S – Ultra small diameter lines 3?4" to 2" (20 - 50 mm) with tight turns for specialized applications
Ridgid 40818 Specifications
Camera Head | 0.62" (15.5 mm) |
Cable Length | 85' (25 m) |
Cable Diameter | 0.25" (6.3 mm) |
Line Capacity | 3/4" to 2" (20 - 50 mm) |
Resolution | 656 x 492 |
Ball Guide | 2 Included |
Sonde | 512 Hz |
Counter | Not available |
Cable Type | Push Cable |
Camera Type | Fixed |
