Description
FACTORY RECONDITIONED

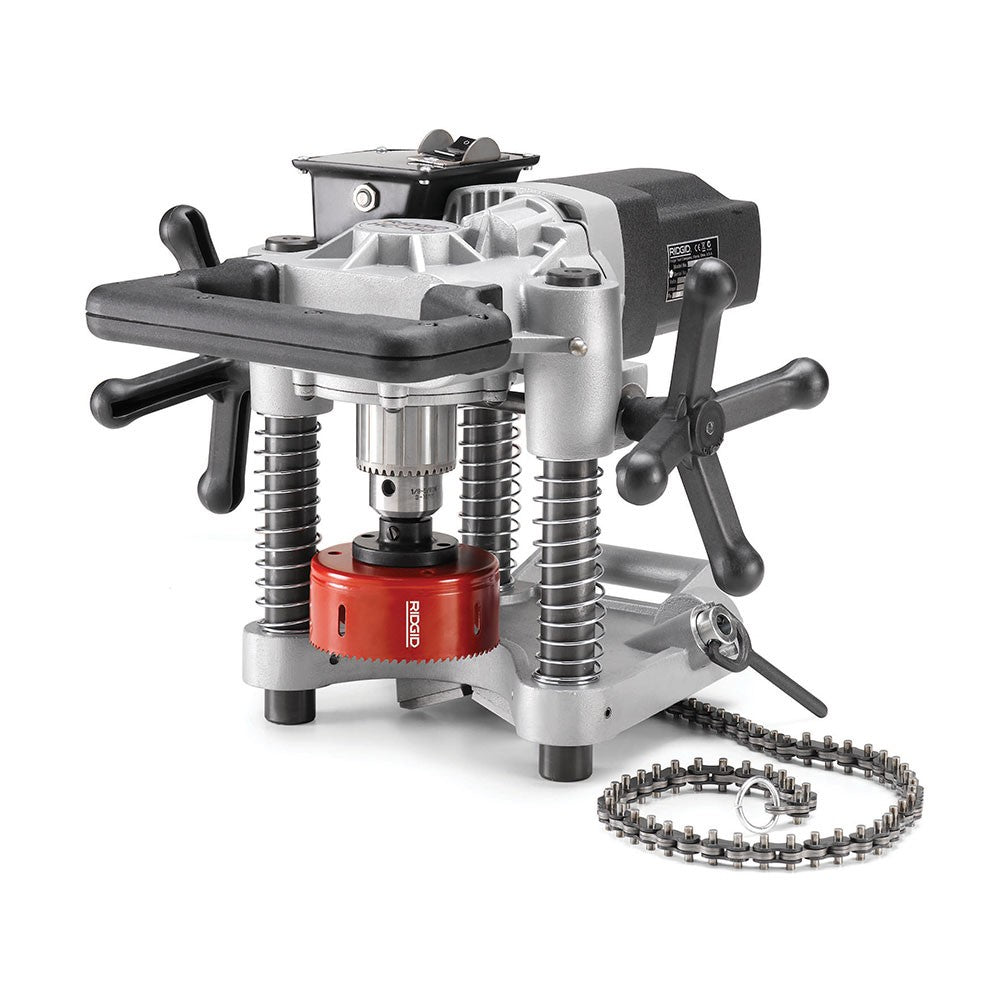

The RIDGID Model HC450 is engineered for continuous 1?4" to 4-3?4" hole cutting in and up to 8" diameter steel unpressurized pipe. The built-in level ensures line up for multiple holes when branching lines using Mechanical T, Vic-O-Let fittings or welded saddles. Dual-side feed handles and switches provide easier operation from any angle. In addition, the HC450’s heavy-duty chuck accommodates 1?8" to 5?8" arbors. The HC450 is ideal for mechanical, industrial maintenance and fire protection contractors since it cuts holes into a wide variety of pipe materials. No off-the-shelf drill-based hole cutter compares in performance or durability to the rugged purposed-built Model 450.
The RIDGID Model HC450 is engineered for continuous 1?4" to 4-3?4" hole cutting in and up to 8" diameter steel unpressurized pipe. The built-in level ensures line up for multiple holes when branching lines using Mechanical T, Vic-O-Let fittings or welded saddles. Dual-side feed handles and switches provide easier operation from any angle. In addition, the HC450’s heavy-duty chuck accommodates 1?8" to 5?8" arbors. The HC450 is ideal for mechanical, industrial maintenance and fire protection contractors since it cuts holes into a wide variety of pipe materials. No off-the-shelf drill-based hole cutter compares in performance or durability to the rugged purposed-built Model 450.
FEATURES:
• 13 amp 1.2 HP worm-gear driven motor delivers unmatched hole cutting power for Schedule 10, 40 and 80 pipe.
• Engineered for 1?4" to 43?4" continuous dry or oiled hole cutting.
• Quickly mounts onto 11?4" to 8" diameter pipe.
• RPM maximizes holesaw life and does not spray lubricant or chips.
• Only 111?2" high for low clearance jobs.
• Dual-side controls provide easy operation.
• GFCI and a built-in circuit breaker for operator protection.
• Two carrying handles ease mounting and alignment
SPECIFICATIONS:
• Motor: Universal, 115V 25-60Hz 13 amp, 1.2 HP.
• RPM: 110 (no load).
• Hole Cutting Capacity: up to 4-3?4".
• Chuck Size: 5?8".
• Pipe Diameter Mounting Range: 11?4" to 8".
• Weight: 42 lbs.
• Height: 11-1?2".
• Length: 17".
• Width: 17".
• Approved by CSA to CSA and UL standards.
