Description
INCLUDES:
• (1) 63673 - SeeSnake Compact M40 | Reel, Compact M40 25mm SL TruSense
• (1) 64943 - CS6x VERSA System
FEATURES:
• Quick-release docking system for fast, efficient job setup with the SeeSnake CS6xPak monitor.
• Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
• Powerful FleXmitter¨ sonde has long range and preserves the camera's ability to make turns.
• High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
• TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.
SPECIFICATIONS:
• Line Capacity: 1.5" to 8" (38 mm to 203 mm)
• Push Cable Length: 131' (40 m)
• Push Cable Diameter: 0.36" (9.1 mm)
• Push Cable Core: 0.14" (3.5 mm)
• Fiberglass Push Cable Bend Minimum Radius: 3" (76 mm)
• Weight (without batteries): 22 lbs. (10 kg)
• Size Length: 25" (63.5 cm)
• Width: 14" (35.6 cm)
• Height: 17" (43.2 cm)
• Camera Type: 1" (25 mm)
• Frequency: 512Hz
• Operating Temperature: 14¡F to 122¡F (-10¡C to 50¡C)
• Storage Temperature: 14¡F to 158¡F (-10¡C to 70¡C)
• Ingress Protection (without Monitor): IPx5

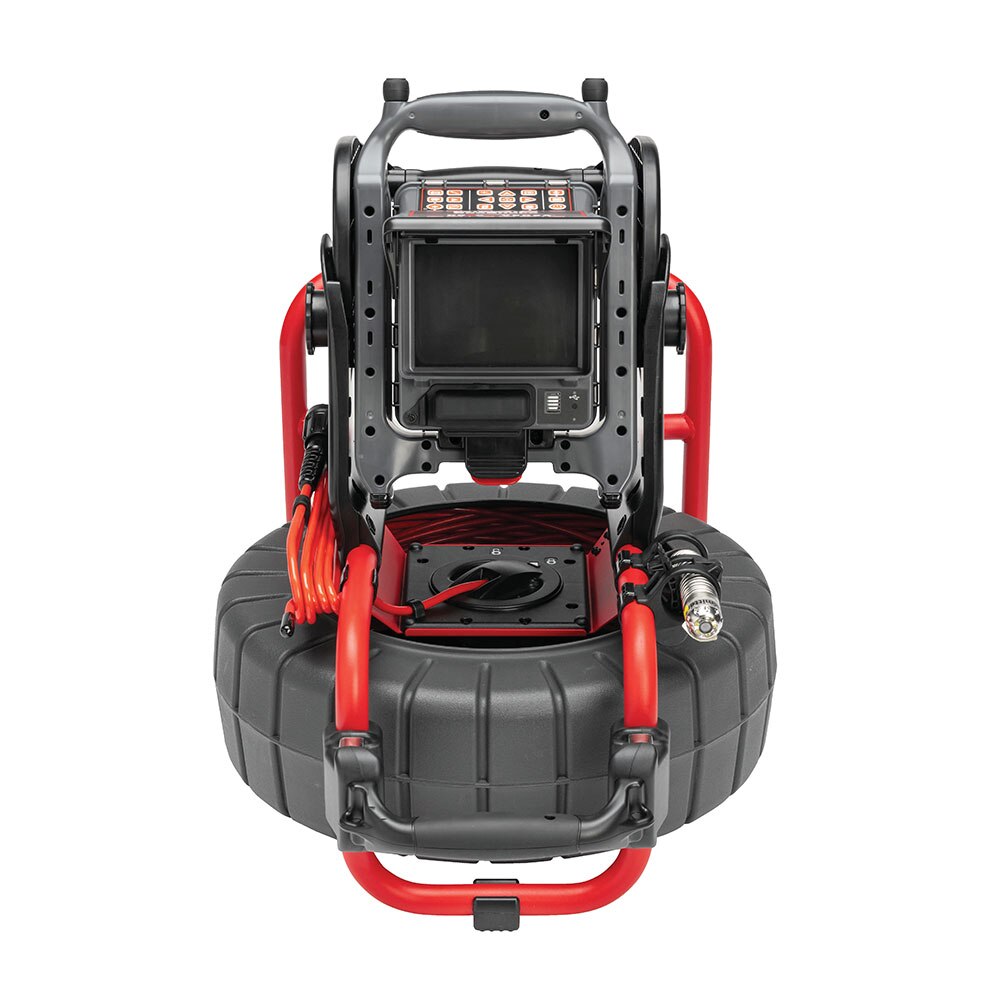

63813 Ridgid SeeSnake Compact 131' M40 w/ CS6x Versa Monitor. SeeSnake Compact M40 Camera System. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns. The Compact M40 offers similar performance to the SeeSnake Mini in the popular Compact form factor, combining a small package and all-in-one monitor capability. Now available with TruSenseª technology. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns.
