Description
Ridgid 65103 Description
65103 RIDGID SeeSnake® Compact 2 System packed with CS6x Versa monitor delivers big performance in a small package. The Compact 2 delivers 100’ (30 m) of push cable with a 2.5” (63 mm) min bend radius. Self-leveling camera head provides an image that is always upright. Quick-release dock for the CS6x Versa Digital Recording Monitor with Wi-Fi provides fast, efficient job setup. Tilt the monitor to the desired viewing angle while docked or remove it for convenient jobsite placement.

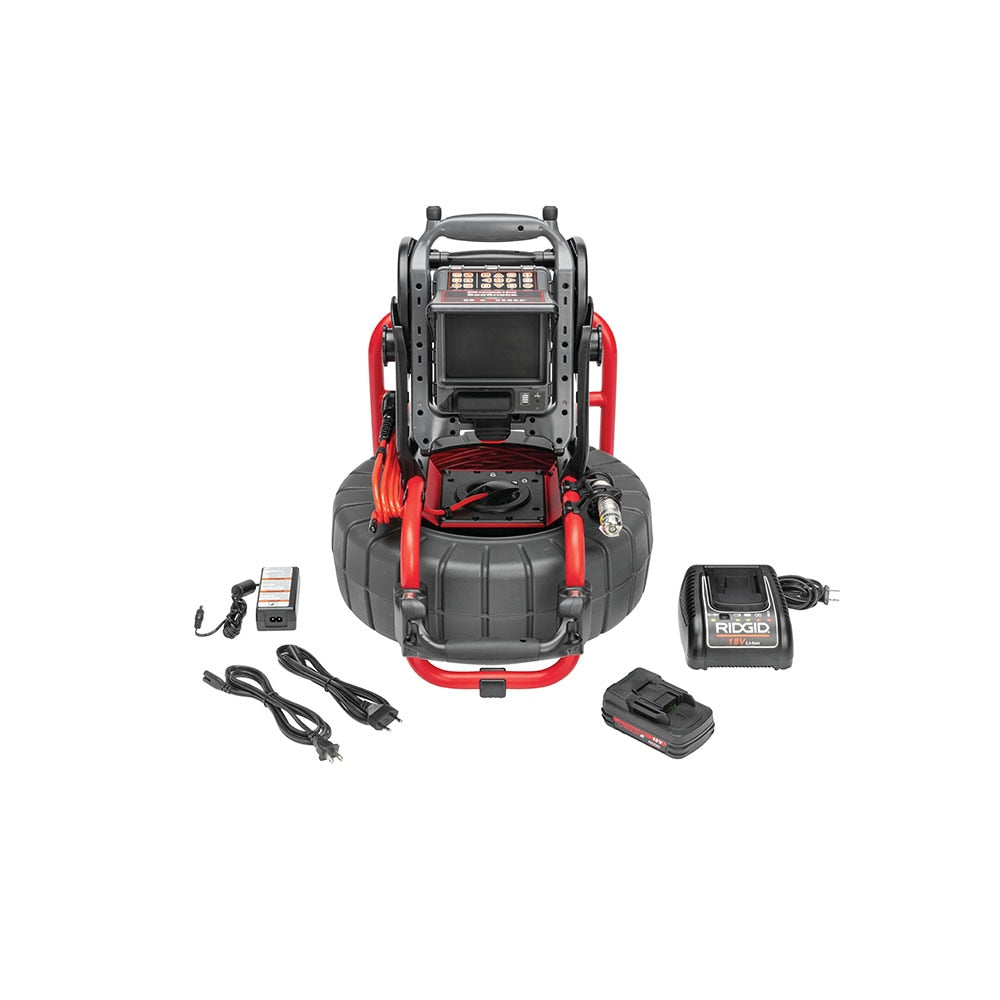

Ridgid 65103 Includes
- (1) 48093 SeeSnake® Compact2 (Reel Only)
- (1) 64943 CS6x VERSA System
- (1) 2.0Ah Battery
- (1) 120V Charger
Ridgid 65103 Features
- Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x Versa monitor.
- Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
- Powerful FleXmitter® sonde has long range and preserves the camera's ability to make turns.
- The Compact 2 comes in the popular Compact formfactor, combining a small package and all-in-one monitor capability (when used with the SeeSnake CS6x Versa monitor).
- The Compact 2 has 100' (30 m) of flexible push cable, providing good ability to fit in smaller diameter pipes and navigate through tight turns.
Ridgid 65103 Specifications
Line Capacity | 1.5" to 6" (40 mm to 150 mm) |
Push Cable Length | 100' (30 m) |
Push Cable Diameter | 0.27" (6.7 mm) with 3 mm [0.12 in] Fiberglass core |
Push Cable Bend Minimum Radius | 2.5" (63.5 mm) |
Weight (without batteries) | 16.6 lbs. (7.5 kg) |
Size Length | 25" (63.5 cm), Width 14" (35.6 cm), Height 17" (43.2 cm) |
Camera Type | 1" (25 mm) Self-Leveling |
Resolution | 656 x 492 (NTSC), 768 X 576 (PAL) |
Light Source | 6 LEDs |
Sonde | 512 Hz |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
Ingress Protection without Monitor | IPx5 |
