Description
Specifications:
• Pipe Capacity: 1/8" - 2" (3 mm - 50 mm)
• Bolt Capacity: 1/4" - 2" (6 mm - 50 mm)
• Motor: 1/2 HP, 115V Universal 25-60 Hz
• Motor Control: Heavy-duty rotary FOR/OFF/REV with integral foot switch
• Spindle Speed: 38 RPM (52 or 57 RPM available)
• Chuck: Hammer-type with replaceable, rocker-action jaw inserts
• Oiling System: Through-the-head, with integral oil reservoir. Self-priming, constant-flow, gerotor pump

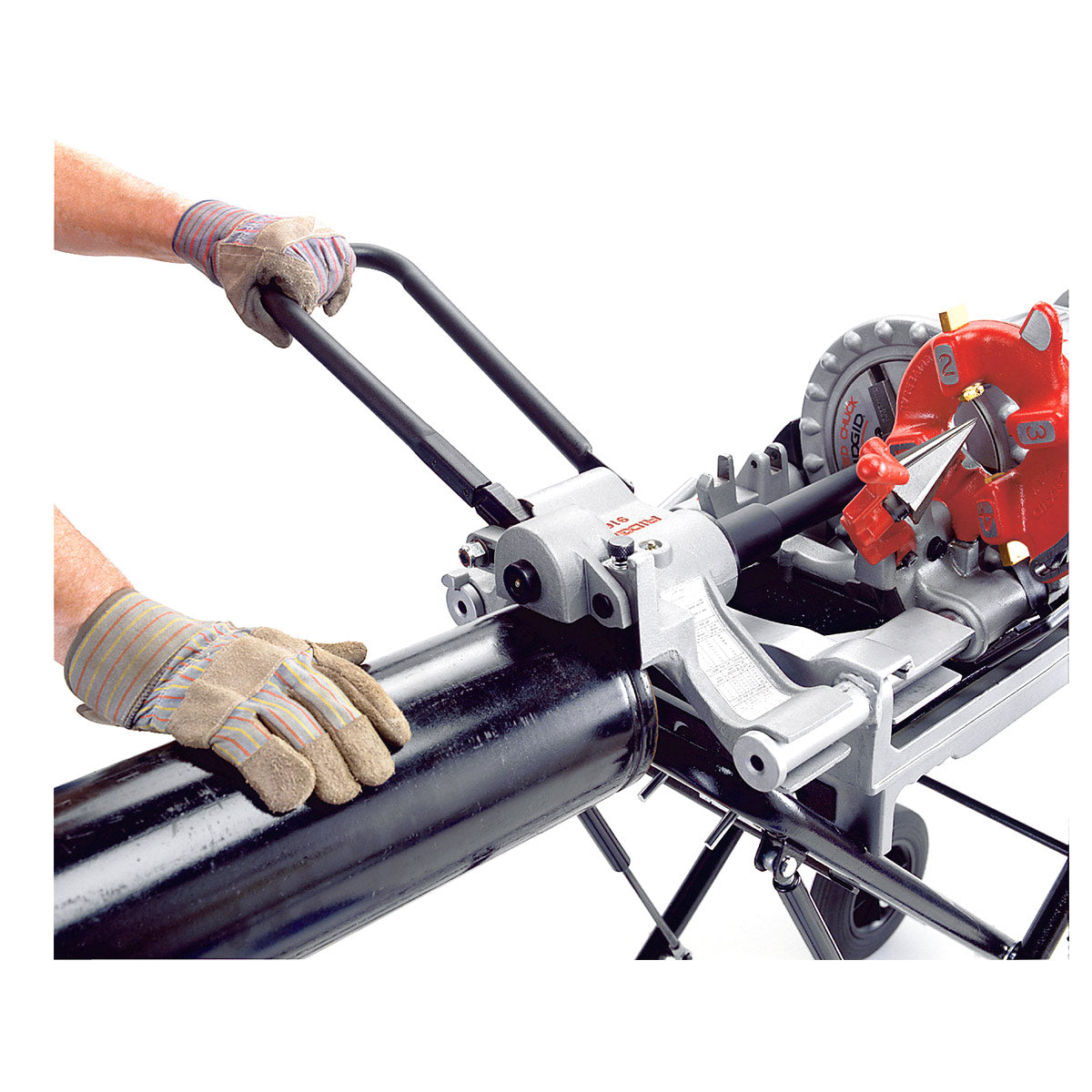

• Cutter: Model 360, roll-type cut-off, self-centering, full-floating
• Reamer: Model 344, 1/8" - 2", five flute cone, right hand only
Includes:

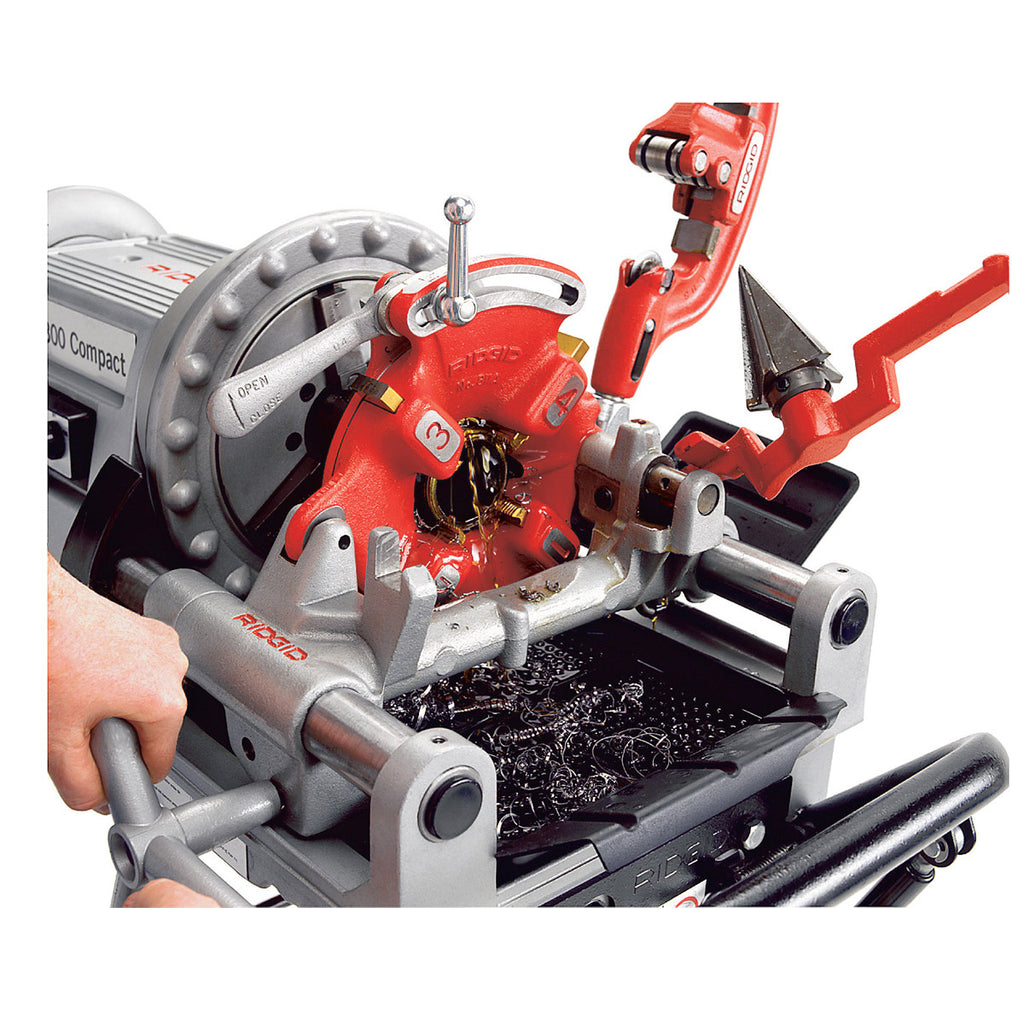

• (1) No. 811A Quick-opening die head.
• (1) No. 344 Reamer.
• (1) No. 360 Cutter with E-1032 Cutter Wheel.
• (1) Set 1/2" - 3/4" Alloy Universal Dies.
• (1) Set 1"- 2" Alloy Universal Dies
• (1) Gallon Nu-Clear Threading Cutting Oil.

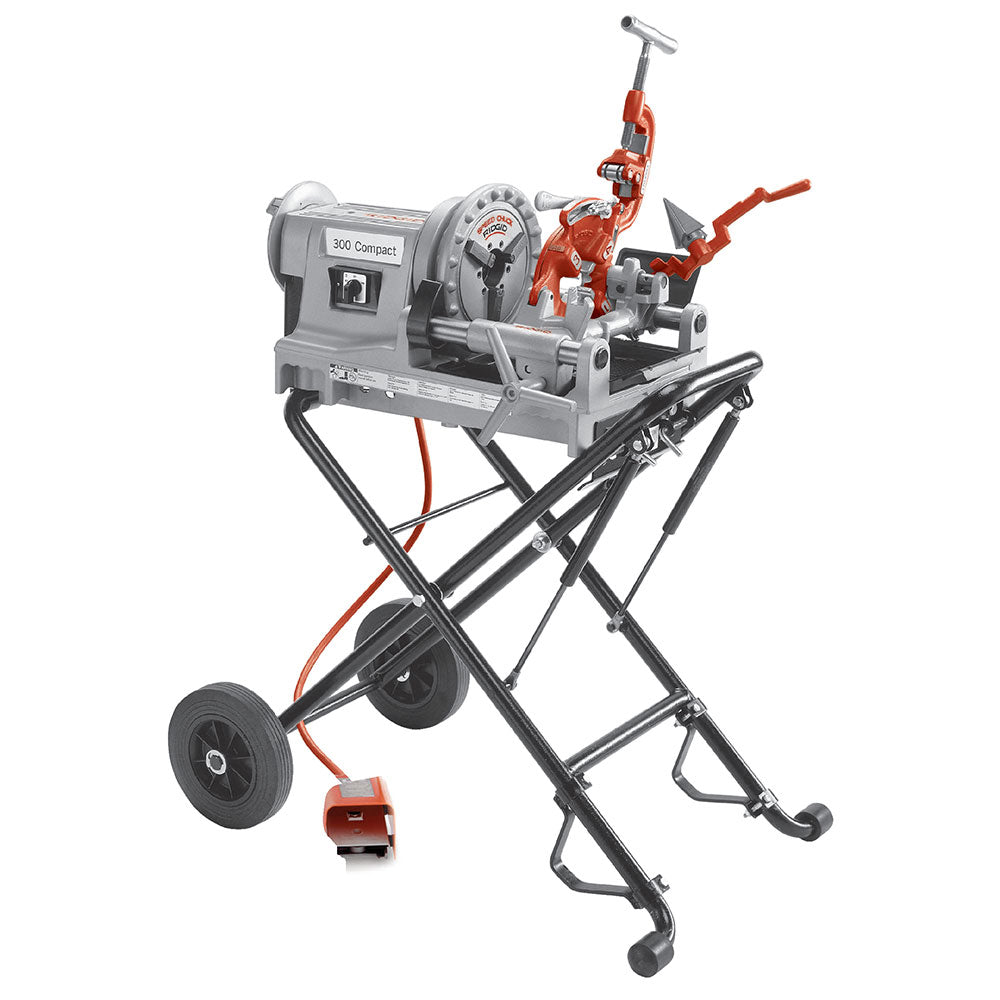

• 250 Stand
Features:
• Heavy-duty proven performance

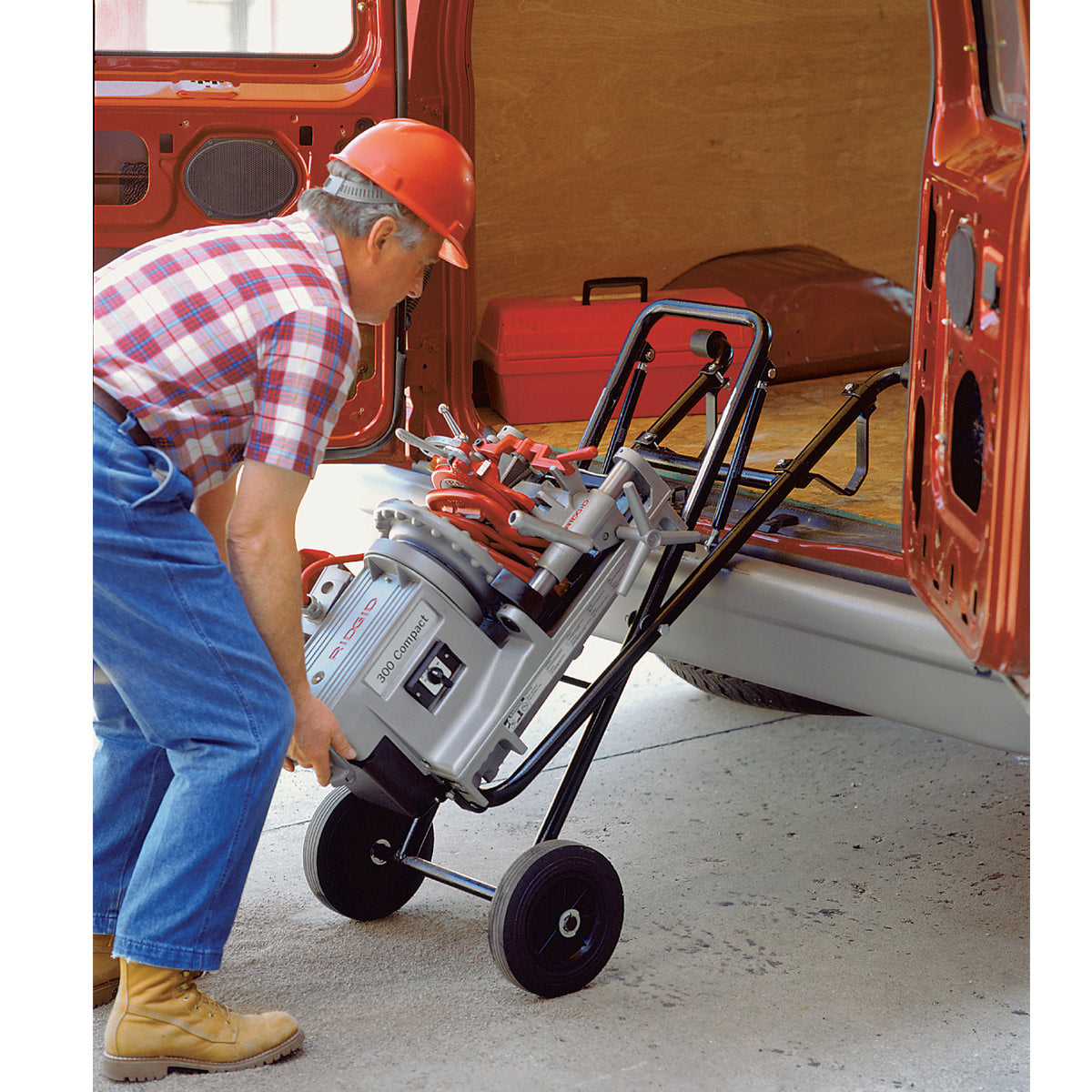

• Lightweight, portable design
• Fast transport and set-up
