Description
• (1) No. 811A Quick-opening die head.
• (1) Set 1/2" - 3/4" Alloy Universal Dies.
• (1) Set 1"- 2" Alloy Universal Dies
• (1) No. 360 Cutter with E-1032 Cutter Wheel.
• (1) No. 344 Reamer.
• (1) Gallon Nu-Clear Threading Cutting Oil.
• (1) Stand
Ridgid 75602 Features:
• Heavy-duty proven performance.

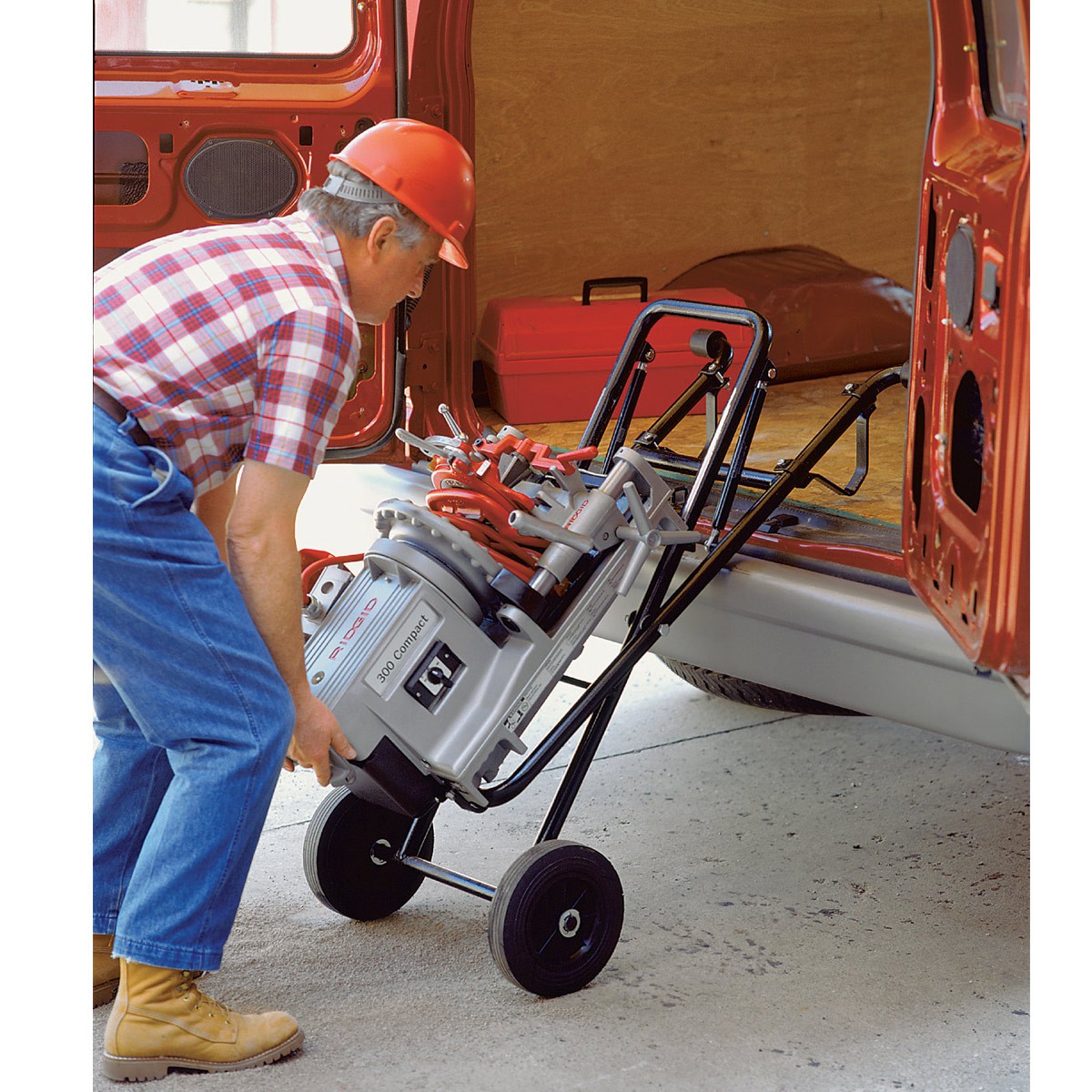

• Lightweight, portable design.
• Fast transport and set-up.
• Self-Contained Oil System with adjustable flow control.
• Versatility for threading and grooving.
• Quiet operation.
• Approved by CSA to CSA and UL standards (115V only).
• Motor Control: Heavy duty rotary FOR/OFF/REV with integral foot switch.
• Spindle Speed: 38 RPM (52 RPM available).
• Chuck: Hammer-type with replaceable, rocker-action jaw inserts.
• Oiling System: Through-the-head, with integral oil reservoir.
• Self-priming, constant-flow, gerotor pump.

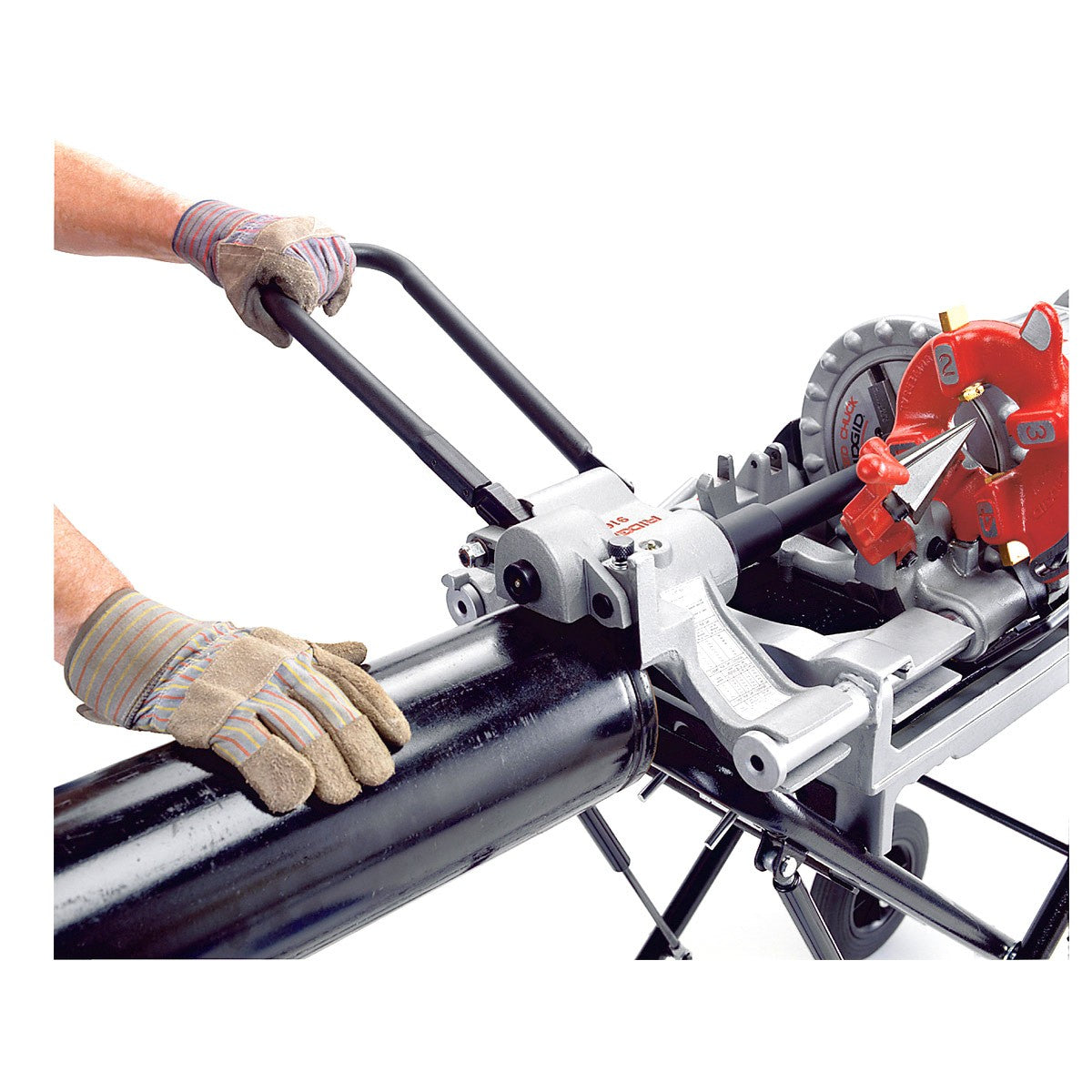

• Cutter: Model 360, roll-type cutoff, self-centering, full-floating.
• Reamer: Model 344, 1/8"-2", five flute cone, right hand only.
Ridgid 75602 Specifications:
• Model #: 300 Compact Kit
• RPM: 52
• NPT: 1/2" - 2"
• Voltage: 115V
• Hz: 50/60
