Description
SharkBite U335LFA Description

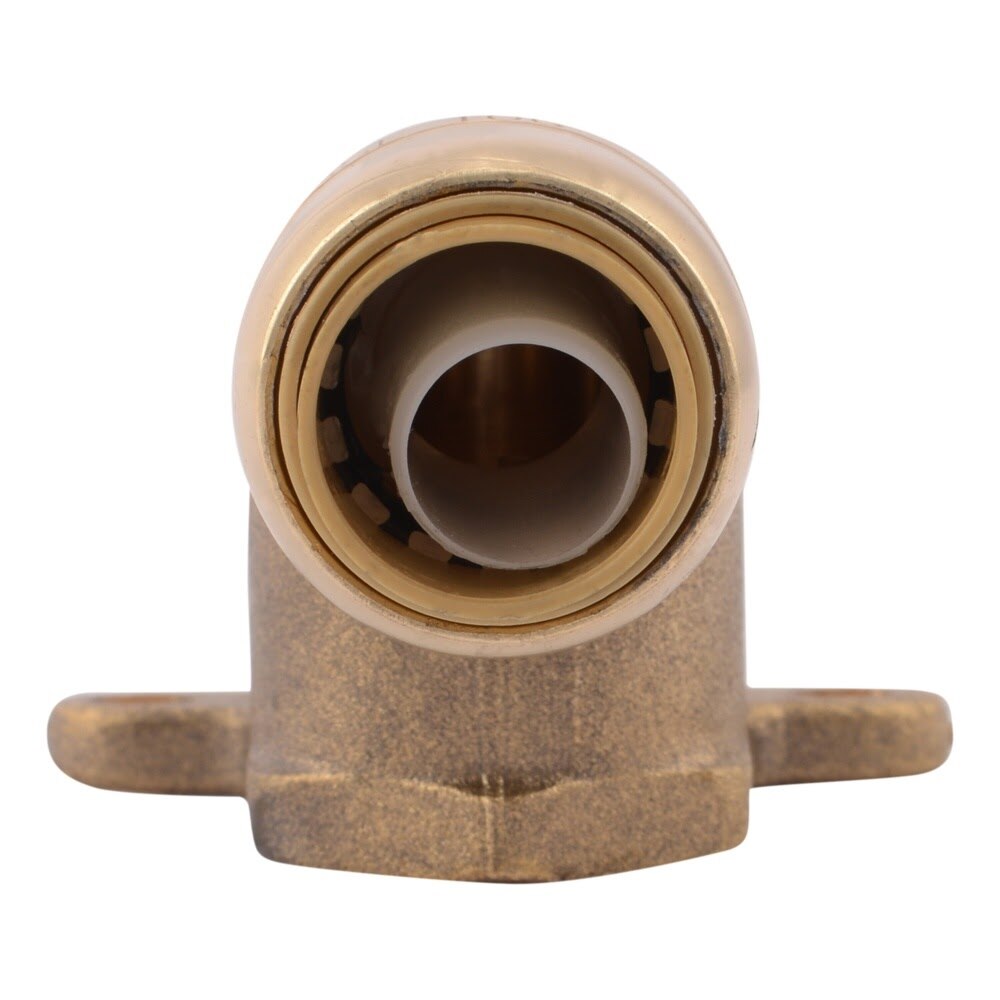

The SharkBite U335LFA 1/2 in push-to-connect x 1/2 in FNPT 90 Degree Hy-Ear Elbow provides a fast, secure connection for water supply lines and threaded fittings. Made from low-lead DZR brass, it installs without soldering or special tools and is compatible with copper, PEX, CPVC, PE-RT, and HDPE pipe for hot or cold water applications.
SharkBite U335LFA Includes
- (1) 1/2 in Push-to-Connect x 1/2 in FNPT 90 Degree Hy-Ear Elbow
SharkBite U335LFA Features
- Push-to-connect inlet and FNPT outlet allow fast installation
- Compatible with copper, PEX, CPVC, PE-RT, and HDPE pipe
- No soldering, clamps, glue, or special tools required
- Works on wet or dry lines for hot and cold water applications
- Rotatable after installation and removable with a disconnect tool
- Ideal for installation in tight spaces
- Low-lead DZR corrosion-resistant brass body
- Rated to 200 Degree F and 200 PSI
- Approved for underground and behind-the-wall applications when installed per requirements
- IAPMO listed and code approved
SharkBite U335LFA Specifications
| Type | Hy-Ear Elbow |
| Angle | 90 Degree |
| Material | Brass |
| Body Material | Low-lead DZR brass |
| Connection Type End 1 | Push-to-connect |
| Connection Type End 2 | FNPT |
| Diameter End 1 | 1/2 in. |
| Diameter End 2 | 1/2 in. |
| Maximum Working Temperature | 200 Degree F |
| Minimum Working Temperature | 33 Degree F |
| Maximum Working Pressure | 200 PSI |
| Removable | Yes |
| For Use With Copper | Yes |
| For Use With CPVC | Yes |
| For Use With PEX | Yes |
| Package Quantity | 1 |
| Each Length | 7.00 in. |
| Each Width | 4.50 in. |
| Each Height | 1.52 in. |
| Each Shipping Weight | 0.22 lb |
