Description
SharkBite UC08414116 Description

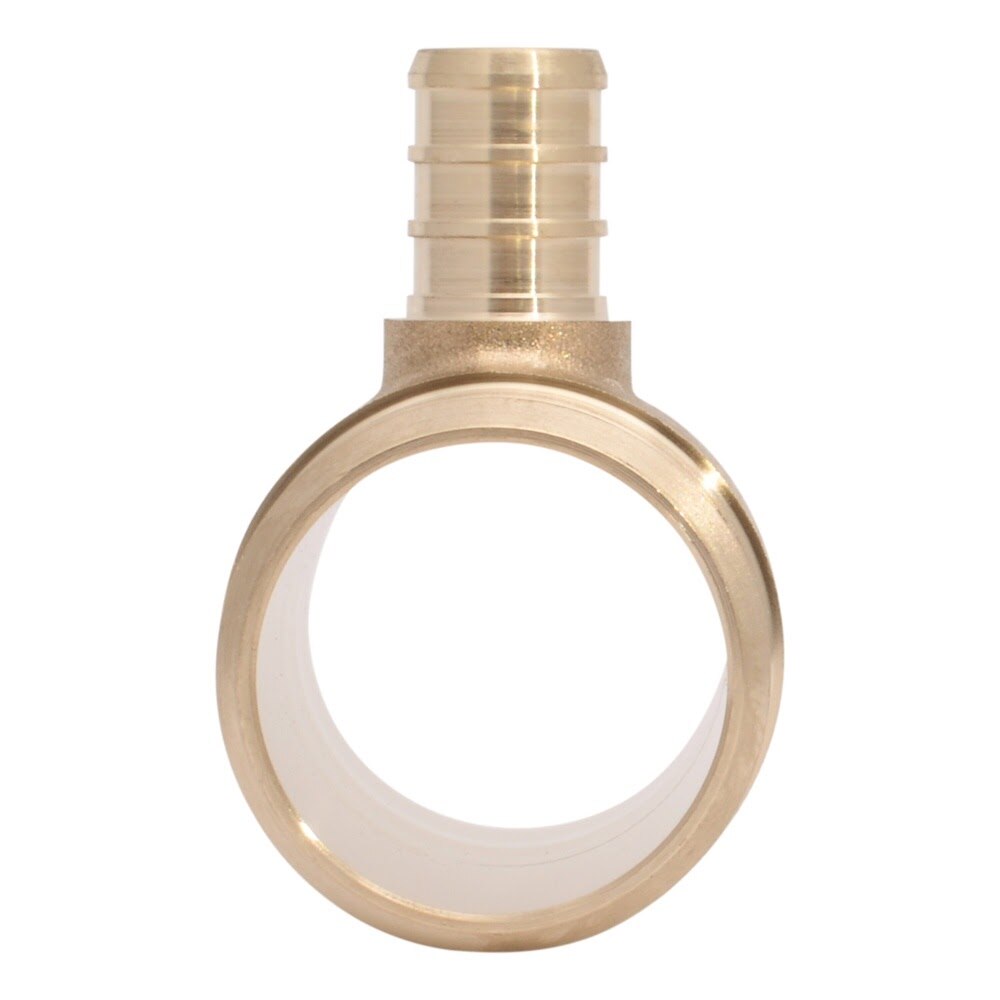

The SharkBite brass PEX barb reducing tee provides a durable way to branch large-bore PEX lines to a smaller outlet. Made from lead-free DZR brass, this fitting is compatible with PEX-A, PEX-B, and PEX-C tubing for potable water distribution and hydronic heating applications.
SharkBite UC08414116 Includes
- (1) 1-1/2 in. x 1-1/2 in. x 1/2 in. Brass PEX Barb Reducing Tee
SharkBite UC08414116 Features
- Lead-free DZR brass construction
- Reducing tee design connects two 1-1/2 in. PEX lines to one 1/2 in. branch line
- Compatible with PEX-A, PEX-B, and PEX-C tubing
- Crimp/barb style connection for secure installation
- Suitable for potable water distribution and hydronic heating applications
- No flames, glue, fluxes, or solvents required for installation
- Maximum working pressure of 160 PSI
- Working temperature range from 33 F to 200 F
- Complies with federal lead guidelines
- Approved to ASTM F1807, NSF 372, and NSF/ANSI 61 standards
SharkBite UC08414116 Specifications
| Brand | SharkBite |
| Type | Reducing tee |
| Material | Lead-free DZR brass |
| Connection Type | Crimp/barb |
| Compatible Pipe Type | PEX-A, PEX-B, PEX-C |
| End 1 Diameter | 1-1/2 in. |
| End 2 Diameter | 1-1/2 in. |
| End 3 Diameter | 1/2 in. |
| Application | Potable water and hydronic heating |
| Maximum Working Pressure | 160 PSI |
| Minimum Working Temperature | 33 F |
| Maximum Working Temperature | 200 F |
| Complies with Federal Lead Guidelines | Yes |
| Safety Listing | NSF safety listing |
| Code Approvals | ASTM F1807, NSF 372, NSF/ANSI 61 |
| Product Length | 8.00 in. |
| Product Width | 5.20 in. |
| Product Height | 3.30 in. |
| Product Weight | 0.34 lb. |
