Description
SharkBite UR016A Description

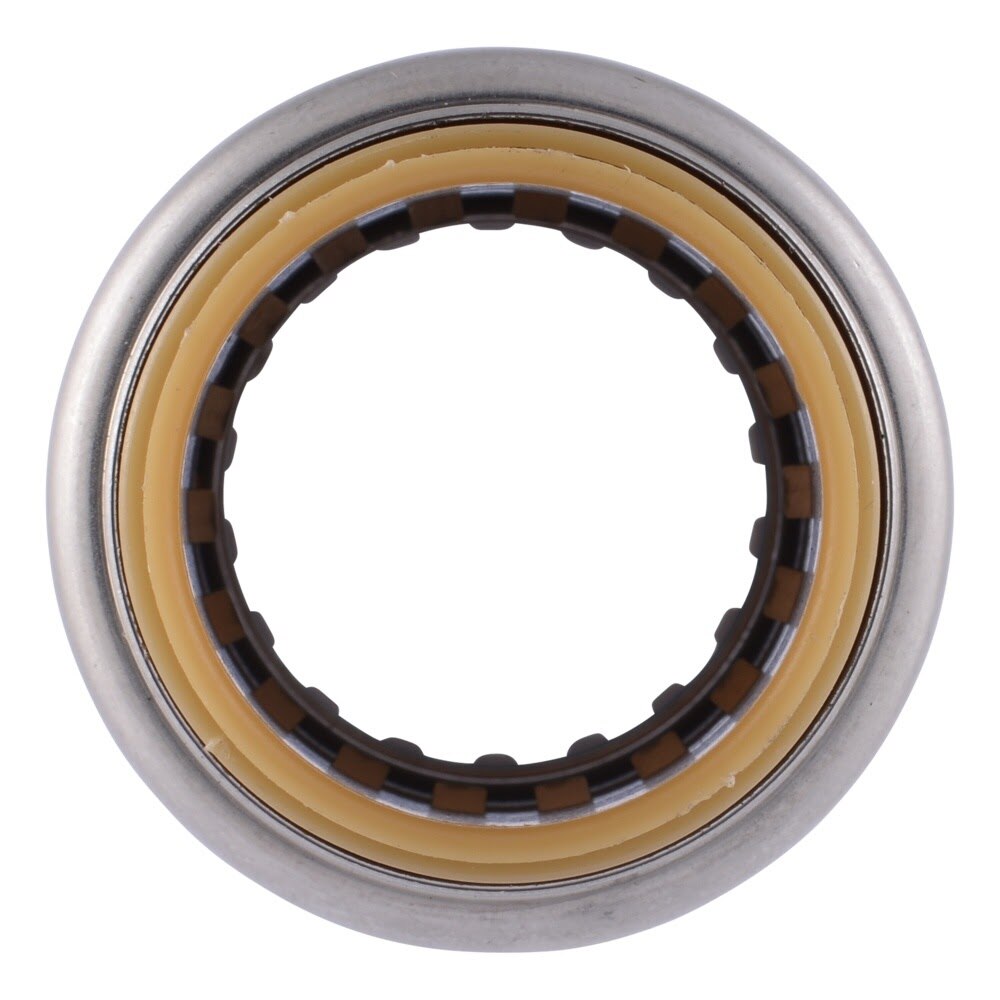

The SharkBite Max 3/4 in. x 3/4 in. push-to-connect brass coupling provides a fast, tool-free way to join PEX, copper, CPVC, or PE-RT pipe in potable water applications. It can be installed on wet lines, pressure tested immediately, and is rated up to 200 F and 400 PSI.
SharkBite UR016A Includes
- (1) 3/4 in. x 3/4 in. SharkBite Max Push-to-Connect Brass Coupling
SharkBite UR016A Features
- Push-to-connect design for fast installation
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Can be installed on wet lines and pressure tested immediately
- Requires no special tools, crimping, soldering, or glue
- Half the insertion force with double the burst pressure
- High-performance DZR lead-free brass body
- Stainless steel retainer adds strength and durability
- Removable and rotatable after installation
- No PEX tube liner required
- Approved for behind-the-wall and underground applications with proper burial wrap
- Rated up to 200 F and 400 PSI
SharkBite UR016A Specifications
| Application | Potable Water |
| Material | Brass |
| Connection Type | Push-to-Connect x Push-to-Connect |
| Fitting Type | Coupling |
| Fitting Size | 3/4 in. x 3/4 in. |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Features | Removable |
| Product Length | 2.795 in. |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
