Description
SharkBite UR2016A Description

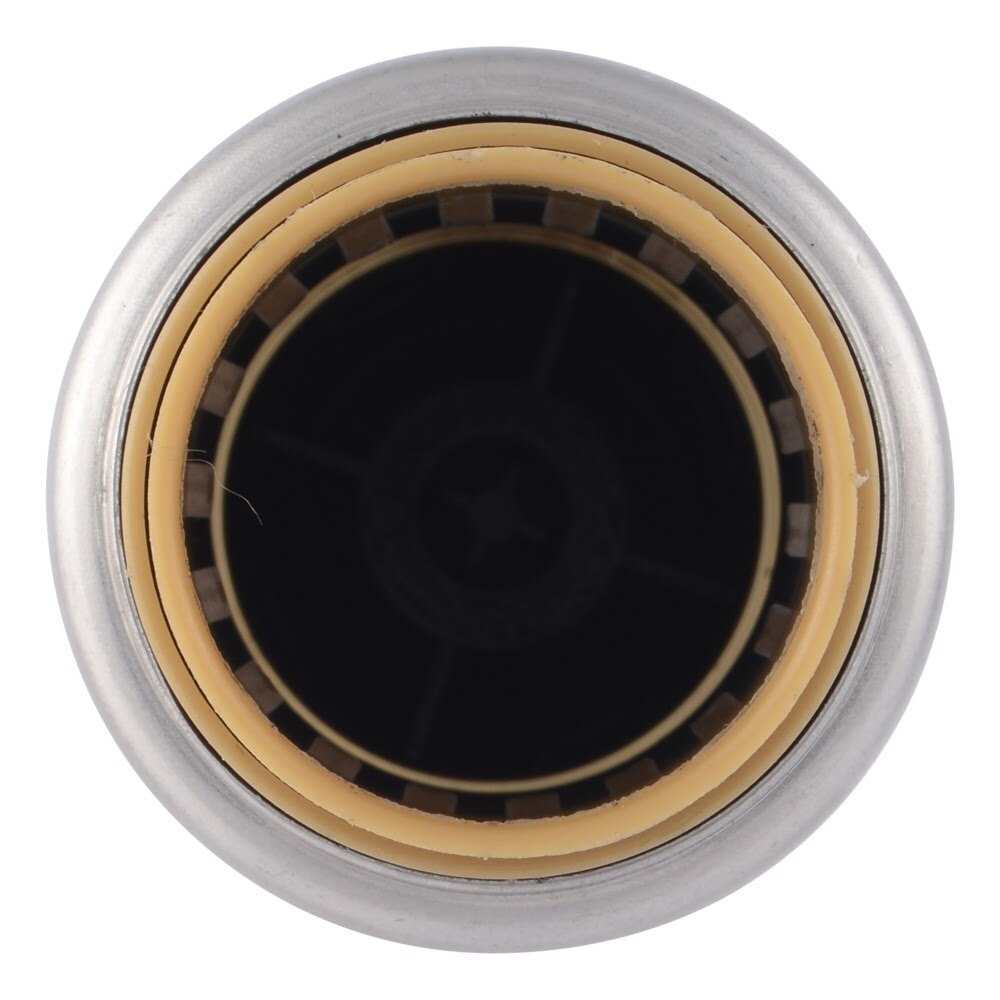

The SharkBite Max 3/4 in. x 3/4 in. brass push-to-connect check valve provides reliable one-way flow control for potable water systems. It connects to PEX, copper, CPVC, and PE-RT pipe without soldering, crimping, or glue, and it can be installed on wet lines for immediate pressure testing.
SharkBite UR2016A Includes
- (1) 3/4 in. x 3/4 in. Max Brass Push-to-Connect Check Valve
SharkBite UR2016A Features
- Push-to-connect design for fast installation
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Can be installed on wet lines and pressure tested immediately
- Half the insertion force with double the burst pressure
- Lead-free DZR brass body for durability
- Stainless steel retainer adds strength
- No special tools, crimping, soldering, or glue required
- Removable and rotatable after installation
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications with wrap required for burial
- Rated for up to 200 F and 250 PSI
SharkBite UR2016A Specifications
| Product Type | Check Valve |
| Size | 3/4 in. x 3/4 in. |
| Material | Brass |
| Connection Type | Push-to-Connect x Push-to-Connect |
| Application | Potable Water |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Inlet Diameter (In.) | 3/4 |
| Outlet Diameter (In.) | 3/4 |
| Maximum Pressure (PSI) | 250 PSI |
| Maximum Working Temperature (F) | 200 |
| Features | Lead Free, Removable |
| Indoor/Outdoor | Indoor, Outdoor |
| Product Length (in.) | 3.54 |
| Product Width (in.) | 1.32 |
| Product Height (in.) | 1.32 |
