SharkBite UR24617 Description

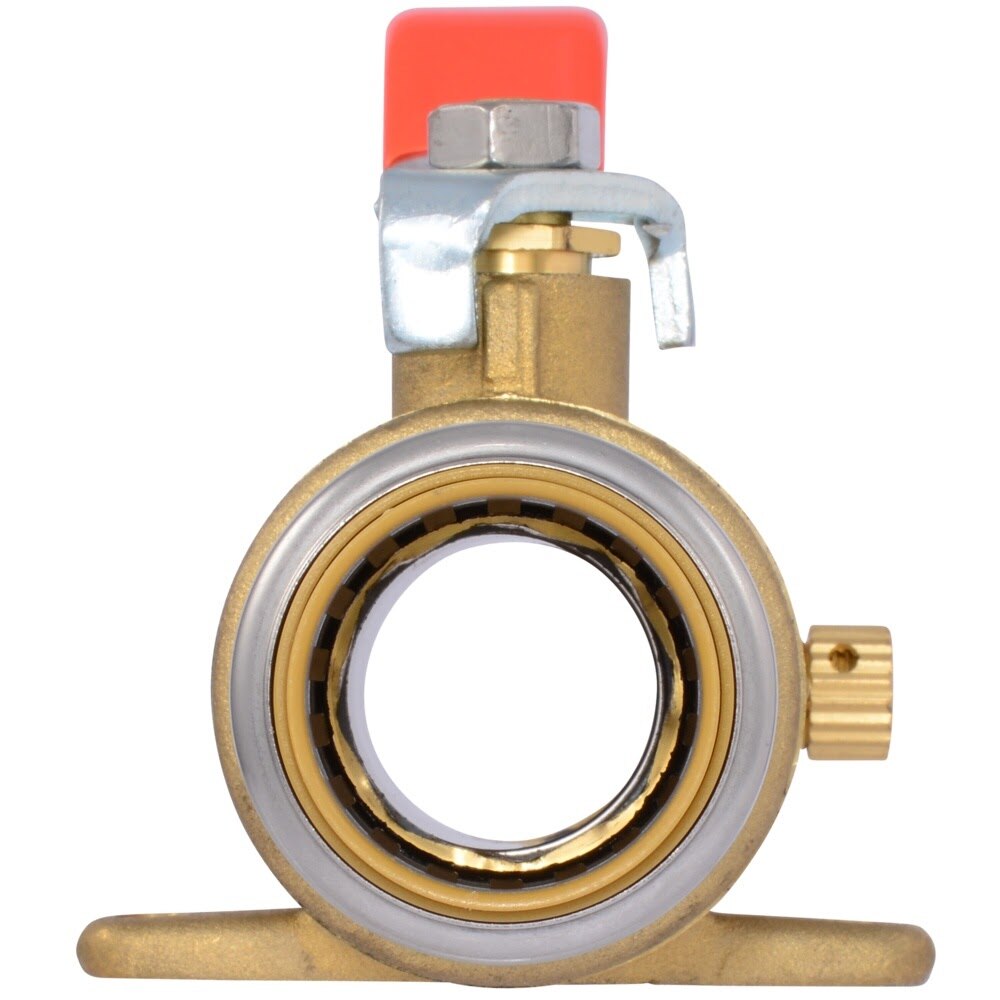

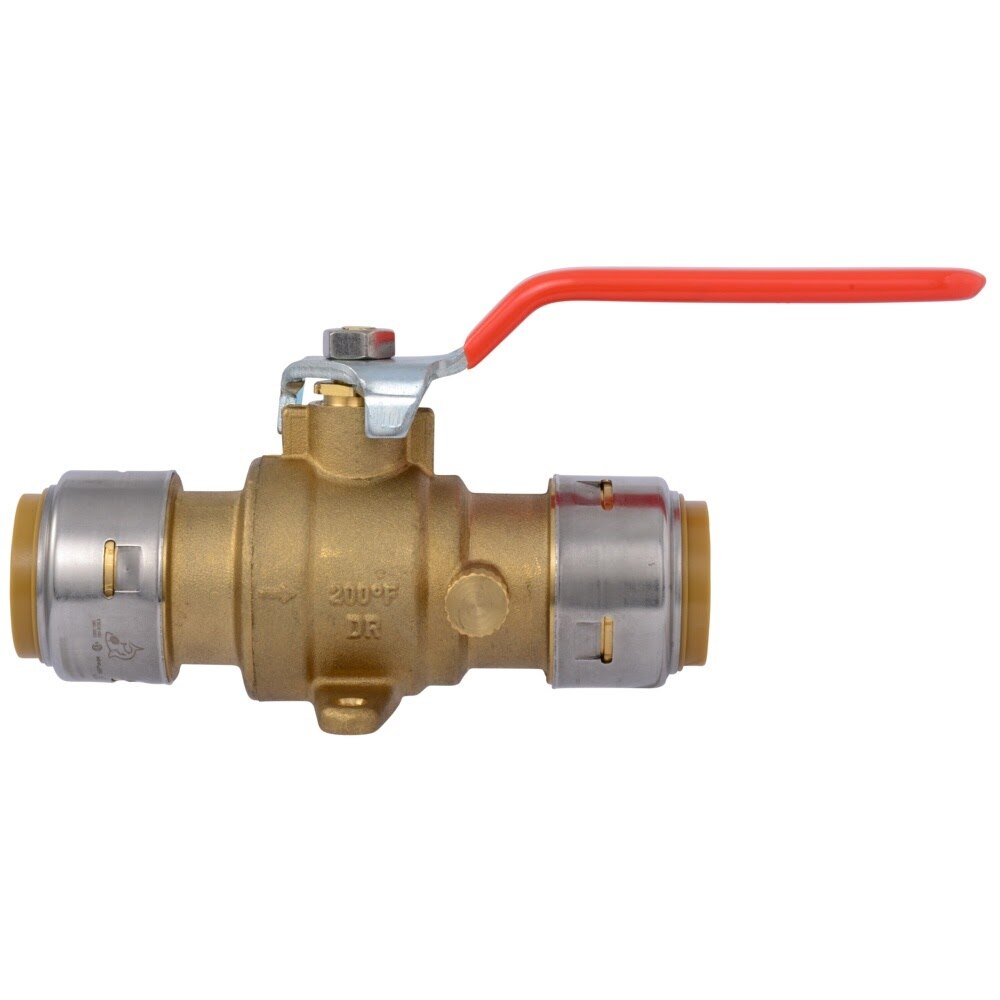

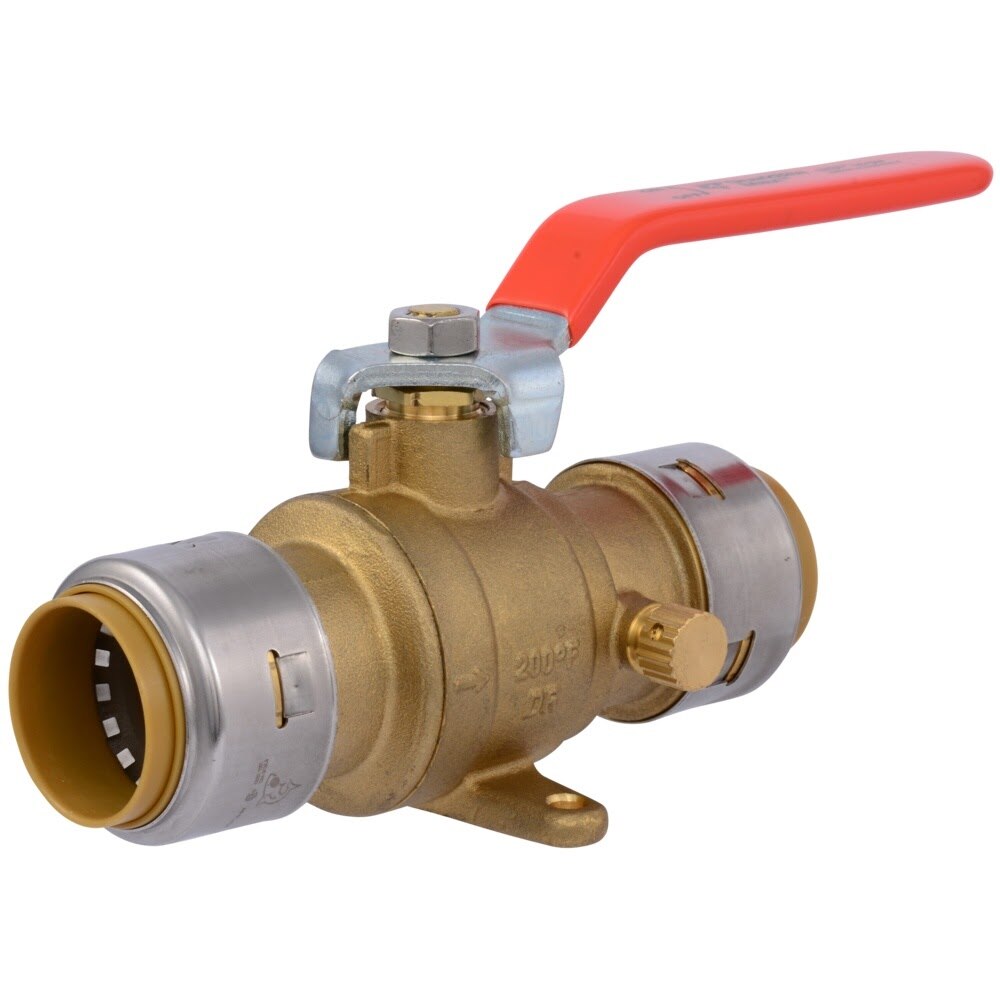

The SharkBite Max quarter-turn ball valve provides a fast push-to-connect solution for controlling water flow in plumbing systems. This 1 in. x 1 in. valve features an integrated drain and mounting bracket for added installation flexibility and stability, and it is compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe. Built with a high-performance DZR lead-free brass body and stainless steel retainer, it can be installed on wet lines, pressure tested immediately, and is rated up to 200 degrees F and 400 psi.
SharkBite UR24617 Includes
- (1) 1 in. x 1 in. Max Quarter-Turn Ball Valve with Drain and Mounting Bracket
SharkBite UR24617 Features
- Push-to-connect design enables fast installation
- Quarter-turn ball valve with integrated drain / vent
- Mounting bracket provides added stability during installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 degrees F and 400 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR24617 Specifications
| Brand | SharkBite |
| Part Number | UR24617 |
| Product Type | Quarter-Turn Ball Valve |
| Connection Type | Push-to-Connect |
| Valve Size | 1 in. x 1 in. |
| Drain Size | 1/8 in. NPSM |
| Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 400 psi |
| Maximum Temperature | 200 degrees F |
| Mounting Bracket | Yes |
| Product Length (in) | 2.76 |
| Product Width (in) | 7.20 |
| Product Height (in) | 3.35 |
| Product Weight (lb) | 1.38 |
