Description
SharkBite UR24656 Description

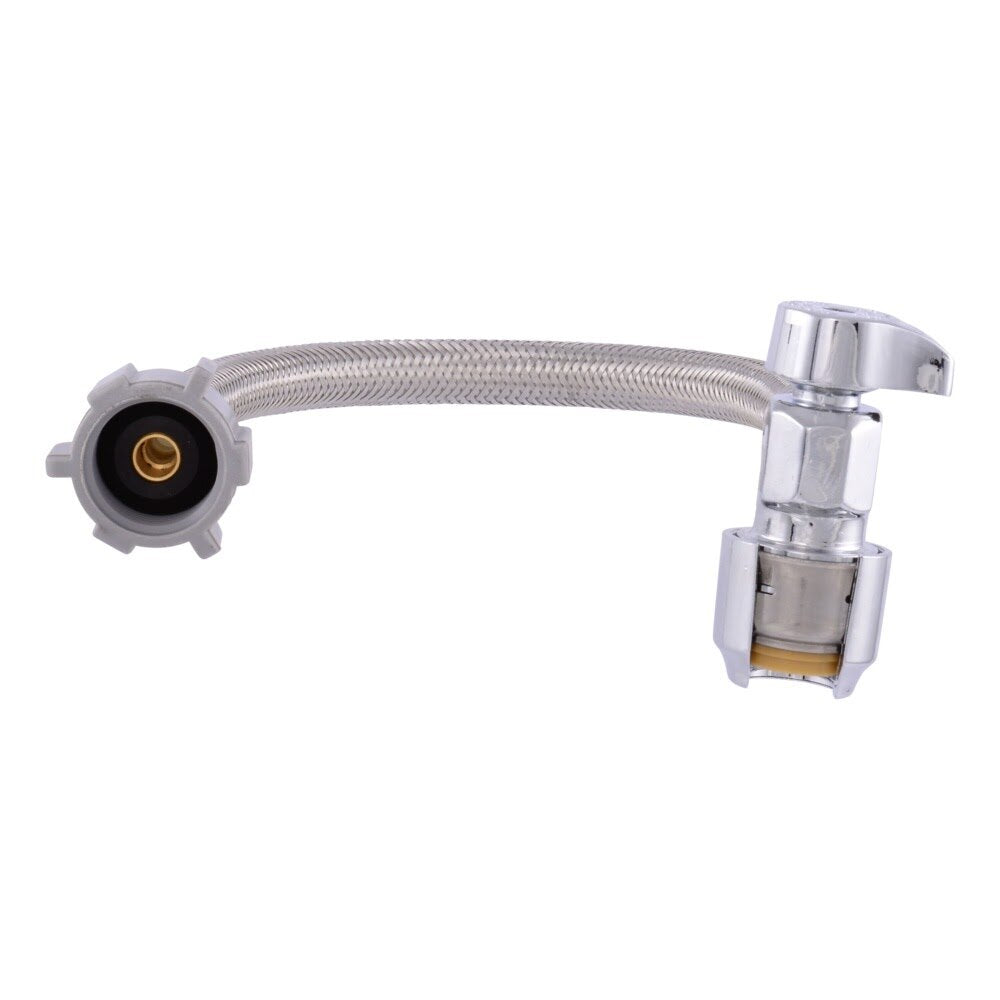

The SharkBite Max toilet connector combines a 12 in. stainless steel braided supply line with an integrated 1/2 in. push-to-connect angle stop valve and 7/8 in. ballcock connection for fast, reliable toilet installations. It installs without special tools and provides a secure, watertight connection on compatible PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe.
SharkBite UR24656 Includes
- (1) 12 in. Max stainless steel braided toilet connector with integrated 1/2 in. angle stop valve and 7/8 in. ballcock connection
SharkBite UR24656 Features
- Integrated 1/2 in. push-to-connect angle stop valve for quick toilet supply installation
- 12 in. stainless steel braided supply line with 7/8 in. ballcock connection
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Installs on wet lines and can be pressure-tested immediately
- No special tools, crimping, soldering, or glue required
- Stainless steel retainer adds strength and durability
- DZR lead-free brass body with quarter-turn full-port ball valve
- Allows rotation after installation and no tube liner is required for PEX
- Removable with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR24656 Specifications
| Inlet Size | 1/2 in. |
| Outlet Size | 7/8 in. Ballcock |
| Connector Length | 12 in. |
| Connection Type | Push-to-connect x Ballcock |
| Valve Type | Integrated angle stop valve |
| Supply Line Material | Stainless steel braided |
| Body Material | DZR lead-free brass |
| Maximum Pressure | 125 psi |
| Maximum Temperature | 160 DegreeF |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Valve Operation | Quarter-turn full-port brass ball valve |
