Description
SharkBite UR24687 Description

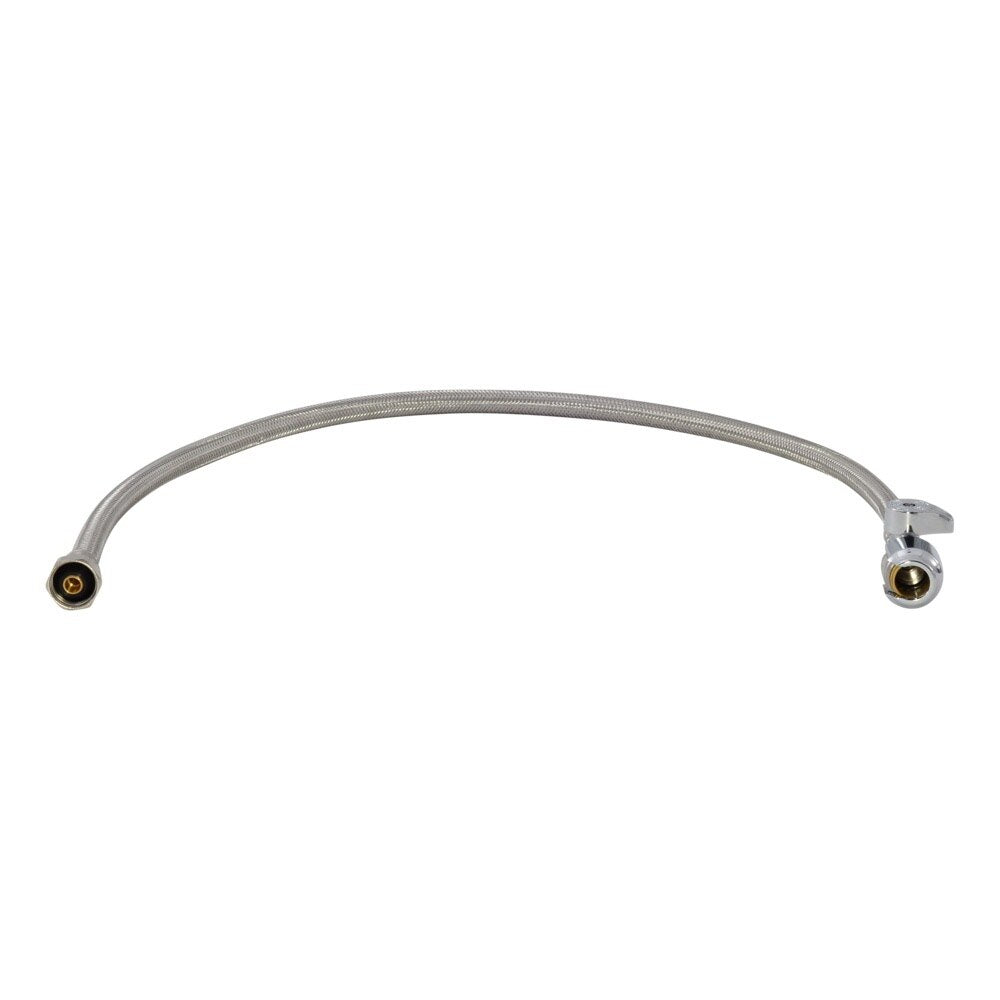

The SharkBite Max faucet connector features a 30 in. stainless steel braided supply line with an integrated straight stop valve for fast, reliable plumbing connections. Its 1/2 in. push-to-connect inlet simplifies installation on compatible pipe types without soldering, crimping, or glue.
SharkBite UR24687 Includes
- (1) Faucet Connector with Straight Stop Valve
SharkBite UR24687 Features
- Integrated straight stop valve for fixture water shutoff
- 30 in. stainless steel braided supply line
- 1/2 in. push-to-connect inlet for quick installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure-tested immediately
- Stainless steel retainer adds strength and durability
- DZR lead-free brass body
- Allows rotation after installation
- Rated up to 160 DegreeF and 125 psi
- Removable with disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR24687 Specifications
| Brand | SharkBite |
| Part Number | UR24687 |
| Product Type | Faucet Connector with Straight Stop Valve |
| Connection Size | 1/2 in. x 1/2 in. NPSM |
| Length | 30 in. |
| Inlet Connection | 1/2 in. Push-to-Connect Straight Stop |
| Outlet Connection | 1/2 in. NPSM |
| Supply Line Material | Stainless Steel Braided |
| Body Material | DZR Lead-Free Brass |
| Compatible Pipe | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 125 psi |
| Maximum Temperature | 160 DegreeF |
| Each Length | 36.83 in. |
| Each Width | 9.76 in. |
| Each Height | 3.91 in. |
| Each Shipping Weight | 0.58 lb |
