Description
SharkBite UR260A Description

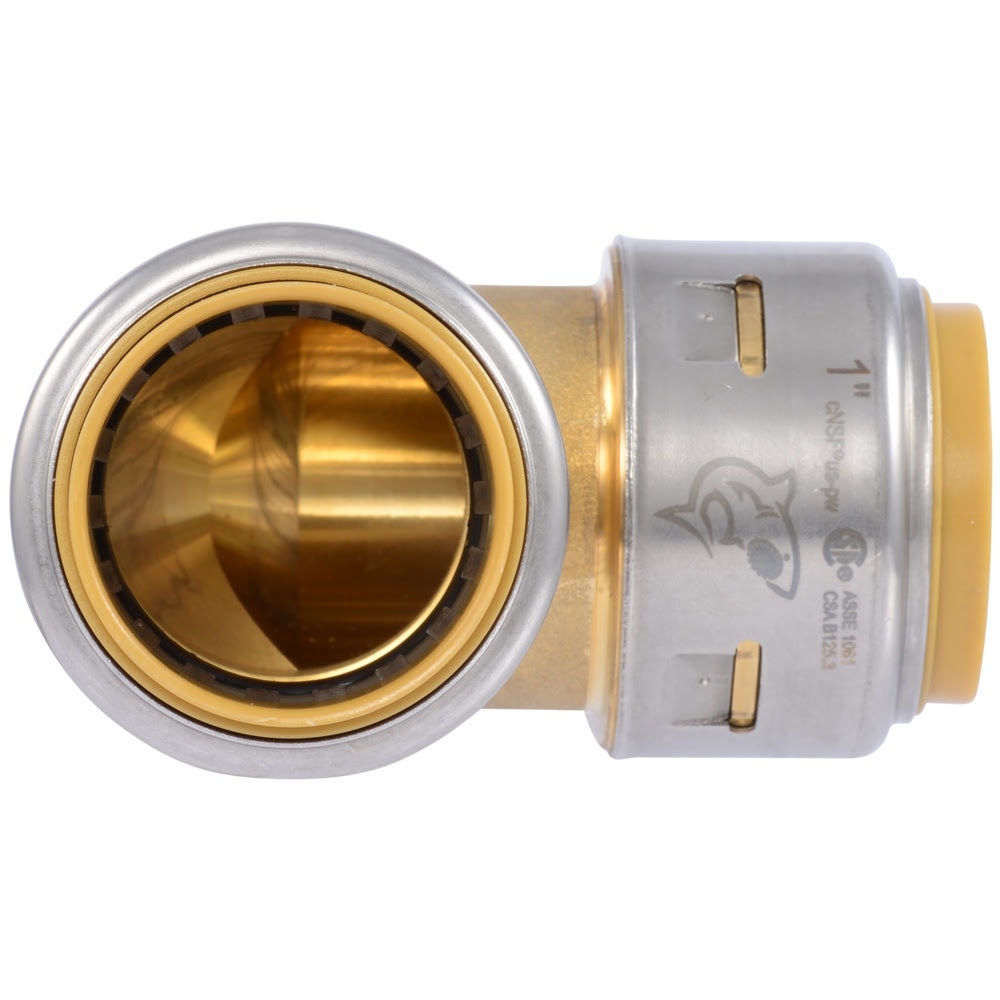

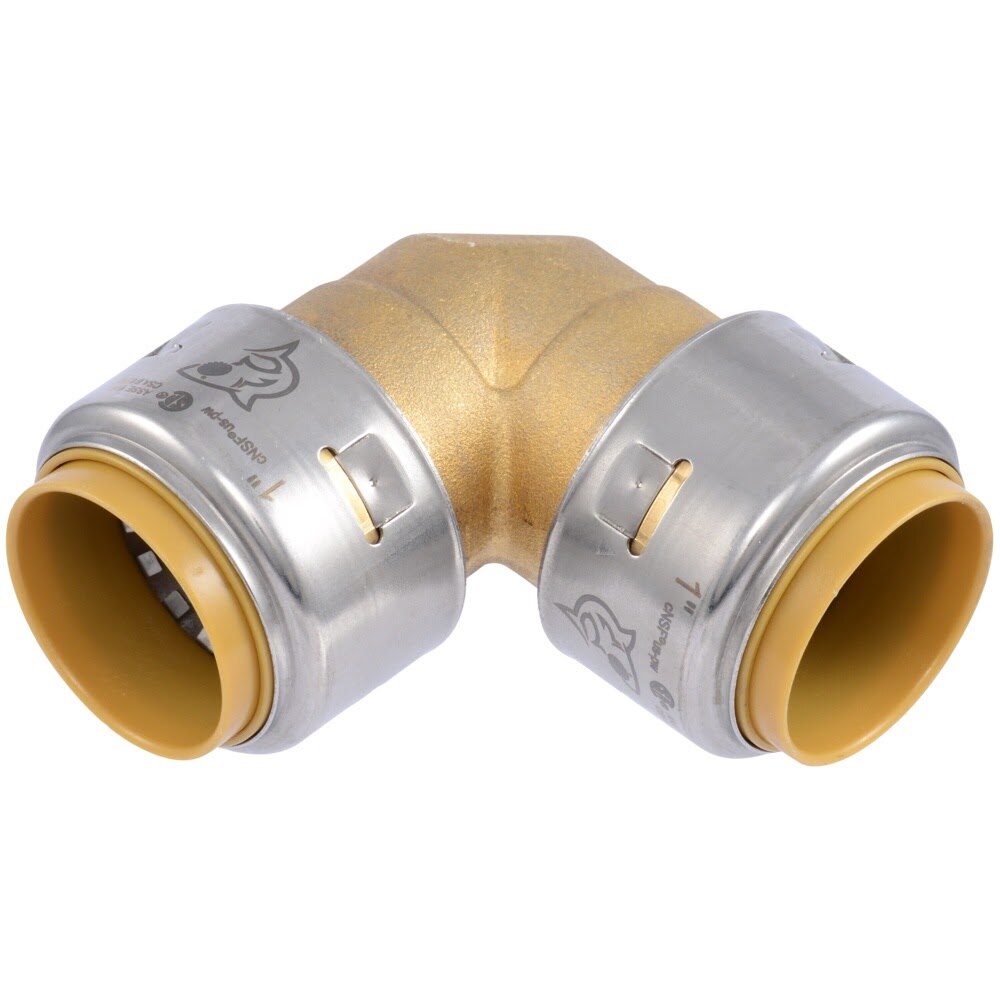

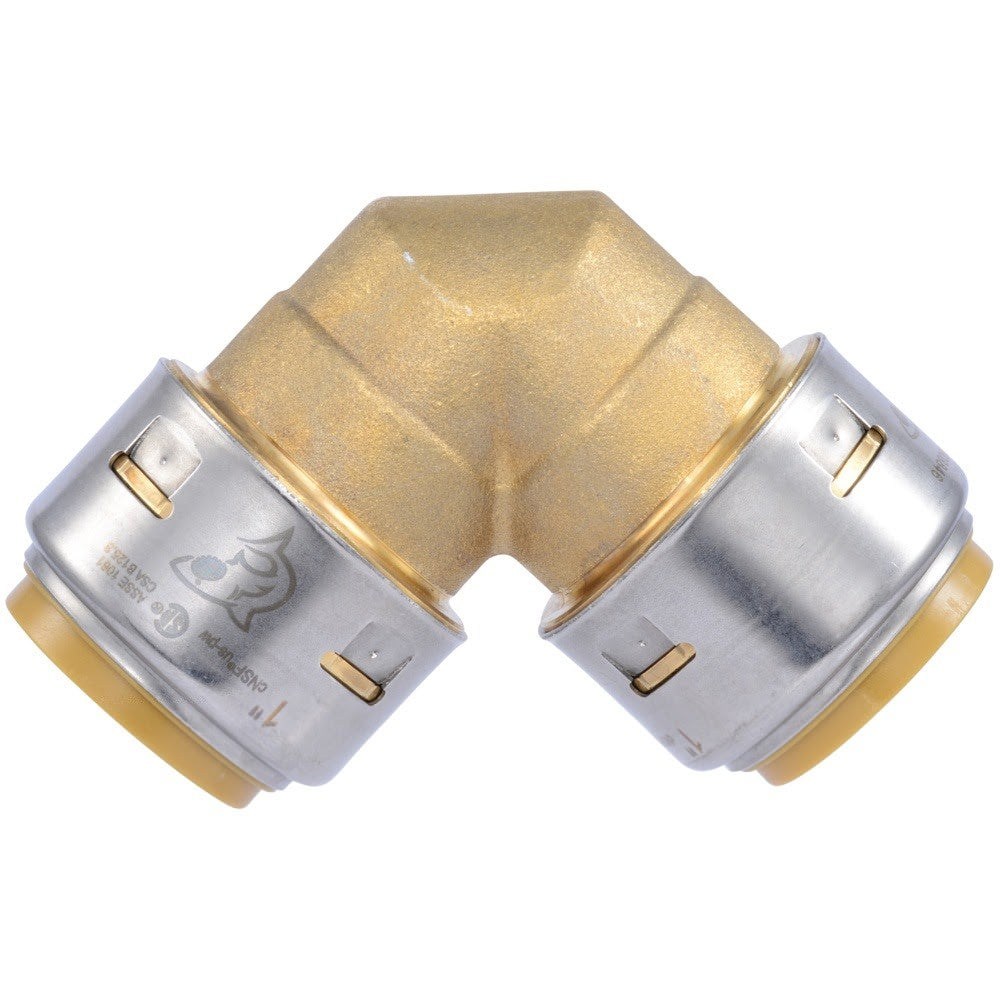

The SharkBite Max 1 in. x 1 in. 90 Degree elbow fitting provides a fast push-to-connect connection for potable water systems using PEX, copper, CPVC, or PE-RT pipe. Its low-lead DZR brass body can be installed on wet lines, rotated after installation, and removed when needed, with ratings up to 200 F and 400 psi.
SharkBite UR260A Includes
- (1) 1 in. x 1 in. Max Push-to-Connect Brass 90 Degree Elbow Fitting
SharkBite UR260A Features
- Push-to-connect design for fast installation
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner not required
- Approved for underground and behind-the-wall applications with required underground wrapping
- Low-lead DZR corrosion-resistant brass body
- Rated up to 200 F and 400 psi
- Code approved and IAPMO listed
SharkBite UR260A Specifications
| Application | Potable Water |
| Bend Degree | 90 Degree |
| Material | Brass |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Connection | PTC x PTC |
| Connectivity | Push Fit |
| Fitting Type | Elbow |
| Fitting Size | 1 in. x 1 in. |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Features | Removable |
