Description
SharkBite UR286A Description

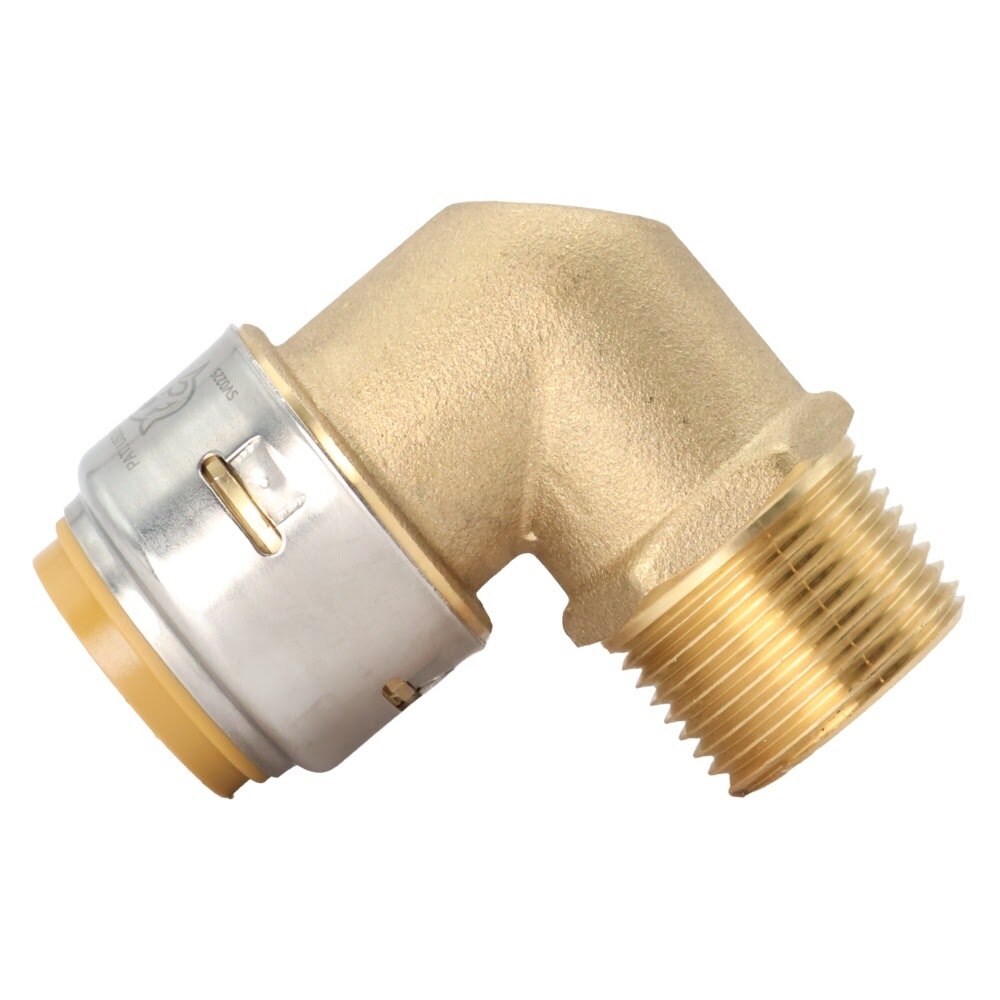

The SharkBite UR286A is a 3/4 in. x 3/4 in. Max MNPT adapter elbow designed to create a fast 90 Degree transition from push-to-connect pipe connections to male NPT threads. Made from lead-free brass, it is compatible with PEX, CPVC, and OD controlled copper and is rated for up to 200 PSI and 200 Degree F for potable water and hydronic heating applications.
SharkBite UR286A Includes
- (1) 3/4 in. x 3/4 in. Max MNPT Adapter Elbow
SharkBite UR286A Features
- Push-to-connect design allows fast installation with no soldering required
- Creates a 90 Degree transition from pipe connection to male NPT threaded connection
- Compatible with PEX, CPVC, and OD controlled copper pipe
- Lead-free brass construction offers corrosion-resistant durability
- Rated for up to 200 PSI and 200 Degree F
- Suitable for potable water and hydronic heating systems
- Integrated design with no loose components
- Approved for underground and behind-wall applications without access panels
SharkBite UR286A Specifications
| Size | 3/4 in. x 3/4 in. |
| Fitting Type | Adapter Elbow |
| Angle | 90 Degree |
| Connection 1 Type | Push-to-Connect |
| Connection 2 Type | Male NPT |
| Thread Size | 3/4 in. |
| Material | Brass |
| Lead Free | Yes |
| Compatible Pipe Material | PEX, CPVC, OD Controlled Copper |
| Insertion Depth | 1-1/8 in. |
| Maximum Pressure | 200 PSI |
| Maximum Temperature | 200 Degree F |
| Application | Heating, Plumbing |
| Warranty | 25 Year |
