Description
SharkBite UR3068FX12 Description

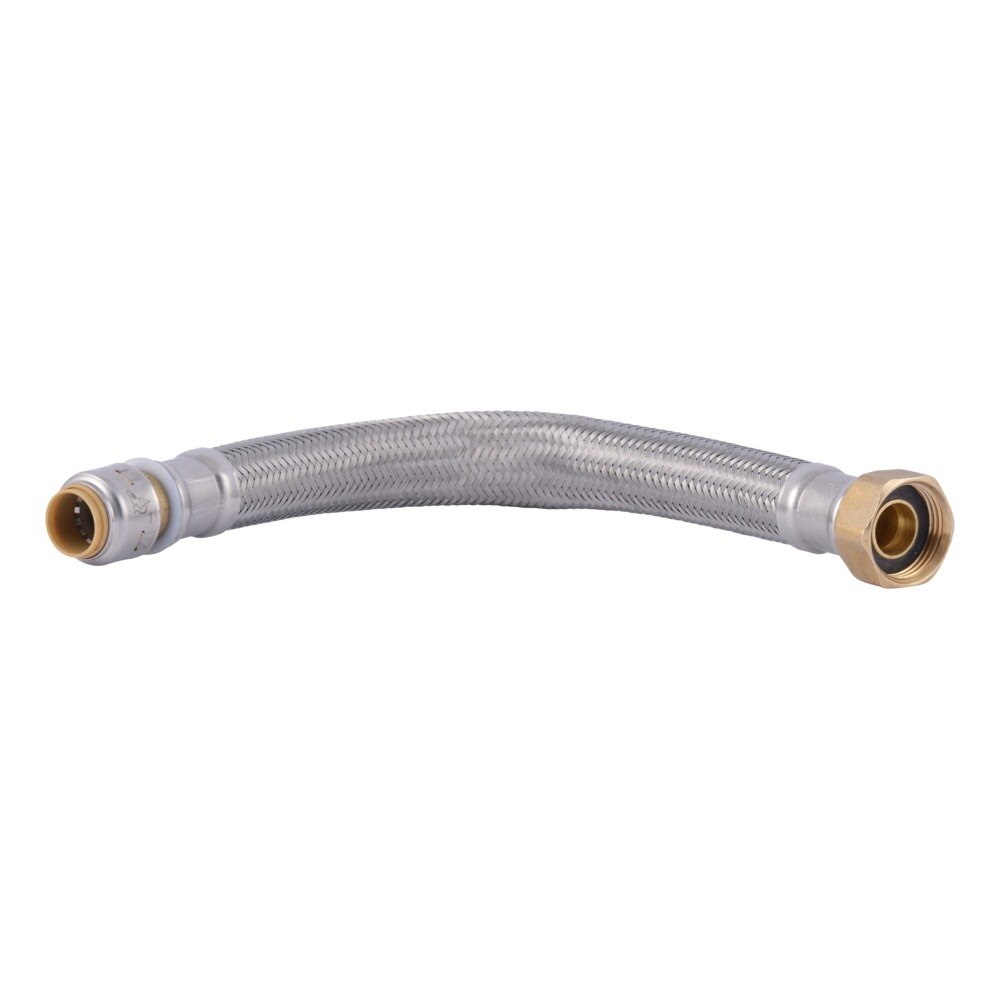

The SharkBite Max braided water heater connector is designed to simplify water heater connections in tight spaces or where existing pipes do not line up. This 12 in stainless steel braided connector features a 1/2 in push-fit connection and a 3/4 in FIP connection for fast installation without soldering, crimping, or glue.
SharkBite UR3068FX12 Includes
- (1) SharkBite Max Water Heater Connector
SharkBite UR3068FX12 Features
- 12 in braided connector helps connect water heaters in tight spaces
- 1/2 in push-fit x 3/4 in FIP connection
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 140 F and 200 psi
- Can be removed using a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR3068FX12 Specifications
| Product Type | Water Heater Connector |
| Connection Size | 1/2 in x 3/4 in |
| Connection Type | Push-Fit x FIP |
| Thread Type | Female |
| Type | Braided |
| Nominal Length | 12 in |
| Material | Stainless Steel |
| Body Material | DZR Lead-Free Brass |
| Fitting System Compatibility | Push Fit |
| Tubing Compatibility | CPVC, PEX, OD Controlled Copper |
| Insertion Depth | 1-1/4 in |
| Max Pressure | 200 psi |
| Max Temperature | 140 F |
| Standards Met | NSF |
| Product Length (in) | 12.01 |
| Product Width (in) | 1.26 |
| Product Height (in) | 1.26 |
| Product Weight (lb) | 0.43 |
