Description
SharkBite UR3086FX24 Description

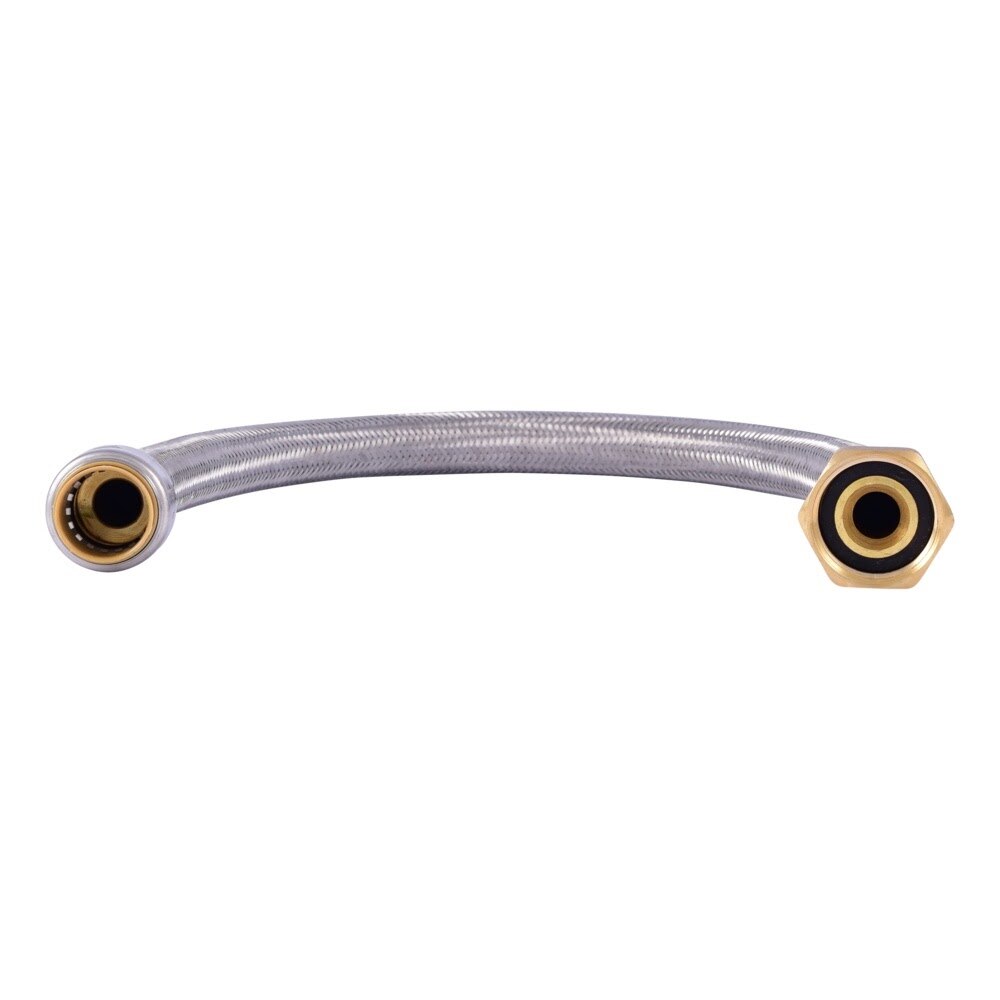

The SharkBite Max 24 in. stainless steel braided water softener connector provides a fast, flexible connection between 3/4 in. pipe and 1 in. FIP fittings. Its push-to-connect design works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe, installs without special tools, and is rated for up to 140 Degree F and 200 psi.
SharkBite UR3086FX24 Includes
- (1) 3/4 in. x 1 in. FIP 24 in. SharkBite Max Water Softener Connector
SharkBite UR3086FX24 Features
- Flexible braided connector helps connect existing pipes that do not line up
- Push-to-connect end installs without crimping, soldering, or glue
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 140 Degree F and 200 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR3086FX24 Specifications
| Brand | SharkBite |
| Series | SharkBite Max |
| Product Type | Water Softener Connector |
| Pipe Size | 3/4 in. x 1 in. FIP |
| Length | 24 in. |
| Material | Stainless Steel |
| End 1 Connection | Push-to-Connect |
| End 2 Connection | Female Iron Pipe (FIP) |
| Compatible Pipe Materials | PEX, Copper, CPVC, PE-RT, HDPE SDR-9 |
| Body Material | DZR Lead-Free Brass |
| Retainer Material | Stainless Steel |
| Maximum Temperature | 140 Degree F |
| Maximum Pressure | 200 psi |
| Product Length (in) | 24.02 |
| Product Width (in) | 1.61 |
| Product Height (in) | 1.61 |
| Shipping Weight (lb) | 0.79 |
