Description
SharkBite UR3088FX12 Description

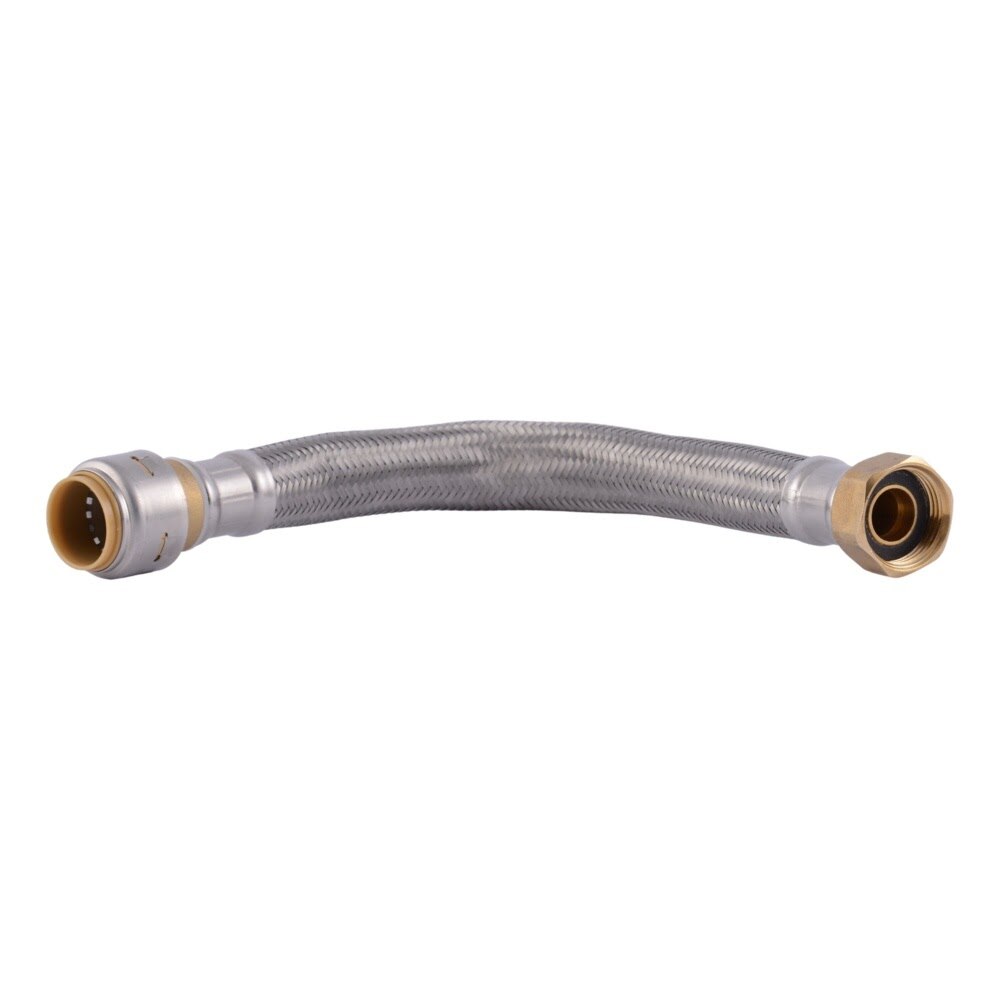

This SharkBite Max 12 in. braided water heater connector helps simplify water heater hookups in tight spaces or where existing pipes do not align. It features a 3/4 in. push-to-connect inlet, a 3/4 in. FIP outlet, and durable stainless steel braided construction for fast, reliable installation.
SharkBite UR3088FX12 Includes
- (1) Max 3/4 in. x 3/4 in. FIP 12 in. Stainless Steel Braided Water Heater Connector
SharkBite UR3088FX12 Features
- 3/4 in. push-to-connect x 3/4 in. FIP connection for water heater installations
- 12 in. flexible braided hose helps connect water heaters in tight spaces
- Stainless steel braided exterior adds durability
- Push-to-connect design requires no crimping, soldering, or glue
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- Lead-free DZR brass body for reliable performance
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 140 Degree F and 200 psi
SharkBite UR3088FX12 Specifications
| Series | Max |
| Application | Water heater connection |
| Connector Length | 12 in. |
| End 1 Connection | 3/4 in. Push-to-Connect |
| End 2 Connection | 3/4 in. FIP |
| Material | Stainless steel braided hose with lead-free brass fittings |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Temperature | 140 Degree F |
| Maximum Pressure | 200 psi |
| Product Length (in) | 12.01 |
| Product Width (in) | 1.32 |
| Product Height (in) | 1.32 |
| Product Weight (lb) | 0.46 |
