Description
SharkBite UR3088FX18 Description

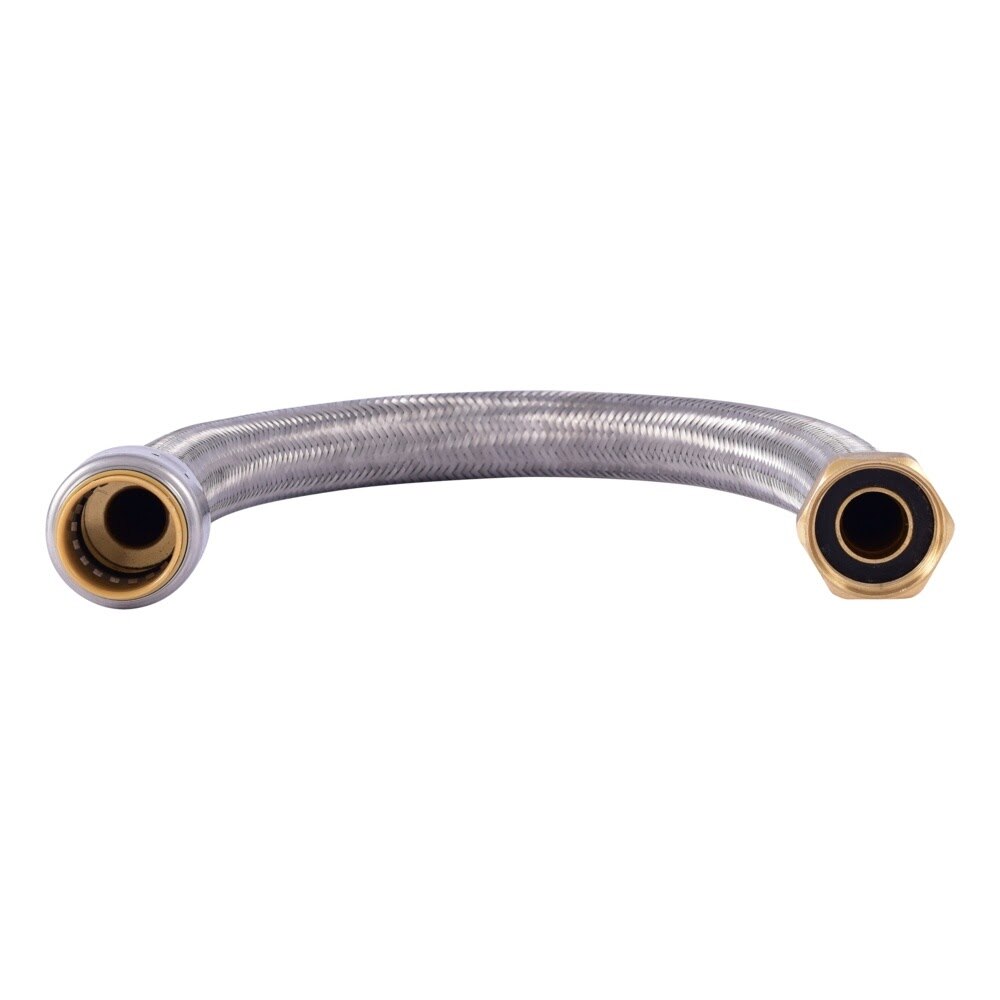

SharkBite Max UR3088FX18 is a 3/4 in. push-to-connect x 3/4 in. FIP x 18 in. braided stainless steel water heater connector designed for fast, tool-free installation on water heater supply lines. It is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe, can be installed on wet or dry lines, and allows immediate pressure testing after installation.
SharkBite UR3088FX18 Includes
- (1) Braided Stainless Steel Water Heater Connector
SharkBite UR3088FX18 Features
- 3/4 in. push-to-connect x 3/4 in. FIP connection
- 18 in. braided stainless steel connector for water heater supply lines
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- No special tools required for installation
- Can be installed on wet or dry lines
- Can be pressure tested immediately after installation
- Rotatable after installation and removable
- PEX tube liner not required
- Low-lead DZR corrosion-resistant brass body
- Approved for electric and gas water heaters with flue vent
- Rated to 140 Degree F and 200 psi
- 25-year warranty when used with compatible pipe types
SharkBite UR3088FX18 Specifications
| Connection Type 1 | Push-to-Connect |
| Connection Size 1 | 3/4 in. |
| Connection Type 2 | FIP |
| Connection Size 2 | 3/4 in. |
| Connector Length | 18 in. |
| Material | Stainless Steel |
| Body Material | Low-lead DZR brass |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE |
| Application | Water heater supply lines |
| Water Heater Compatibility | Electric and gas water heaters with flue vent |
| Maximum Temperature | 140 Degree F |
| Maximum Pressure | 200 psi |
| Product Height (in.) | 1.32 |
| Product Width (in.) | 1.32 |
| Product Length (in.) | 18 |
| Product Weight (lb) | 0.60 |
| Finish Family | Silver Metallic |
| Pack Size | 1 |
