Description

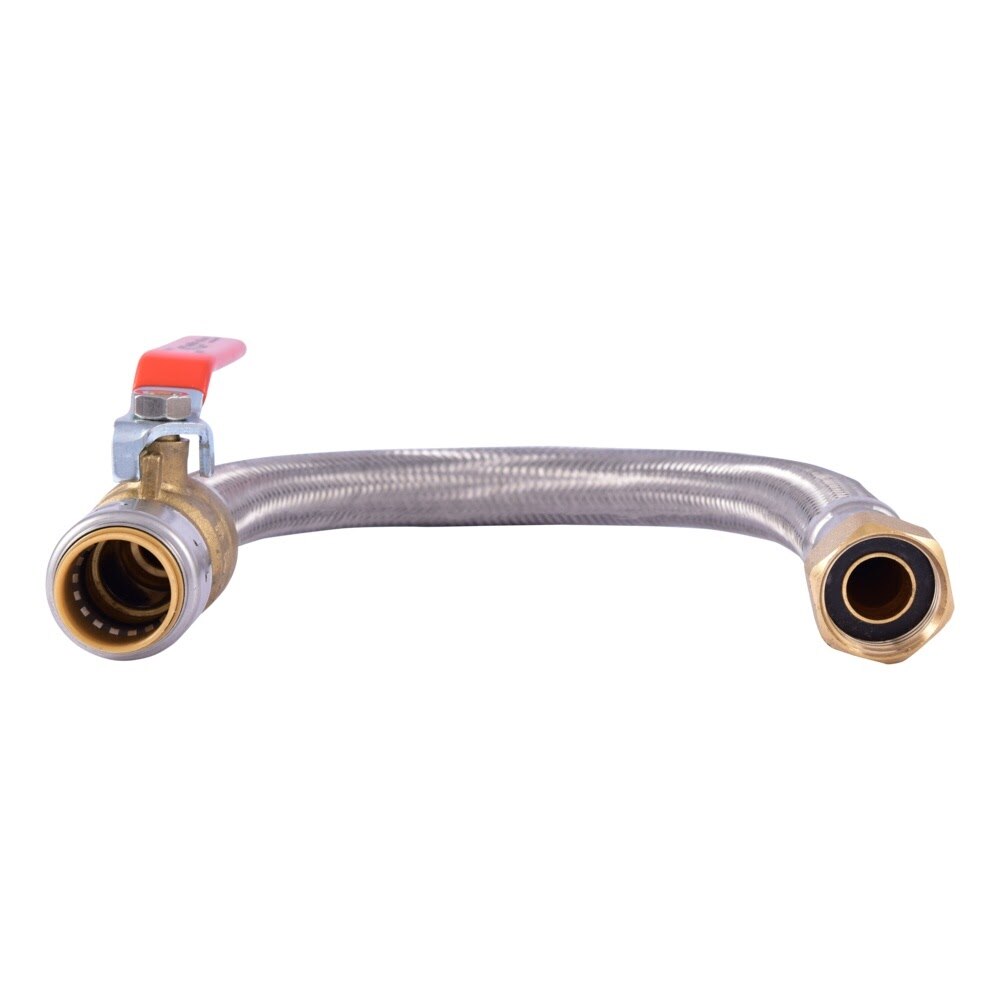

SharkBite UR3088FX18BV Description
The SharkBite Max 18 in. braided stainless steel water heater connector features a 3/4 in. push-to-connect end, a 3/4 in. FIP connection, and an integrated ball valve for fast, tool-free installation on compatible water heater lines.
SharkBite UR3088FX18BV Includes
- (1) SharkBite Max Water Heater Connector with Ball Valve
SharkBite UR3088FX18BV Features
- 3/4 in. push-to-connect x 3/4 in. FIP x 18 in. connector configuration
- Braided stainless steel construction
- Integrated ball valve for shutoff control
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- No special tools required for installation
- Can be installed on wet or dry lines and pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner not required
- Low-lead DZR corrosion-resistant brass body
- Rated to 140 DegreeF and 200 psi
- Approved for electric and gas water heaters with flue vent
- Approved for underground and behind-the-wall applications with wrapping required for underground burial
- Half the insertion force with double the burst pressure
SharkBite UR3088FX18BV Specifications
| Series | Max |
| Product Type | Water Heater Connector |
| Connection 1 | 3/4 in. Push-to-Connect |
| Connection 2 | 3/4 in. FIP |
| Connector Length | 18 in. |
| Material | Stainless Steel |
| Body Material | DZR Brass |
| Valve Included | Ball Valve |
| Compatible Pipe Materials | PEX, Copper, CPVC, PE-RT, HDPE |
| Application | Electric and Gas Water Heaters with Flue Vent |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 140 DegreeF |
| Finish Family | Silver Metallic |
| Pack Size | 1 |
| Product Height (in.) | 2.41 in. |
| Product Length (in.) | 18 in. |
| Product Width (in.) | 1.41 in. |
| Warranty | 25-year warranty when used with PEX, copper, CPVC, and PE-RT pipe |
