SharkBite UR4256A Description

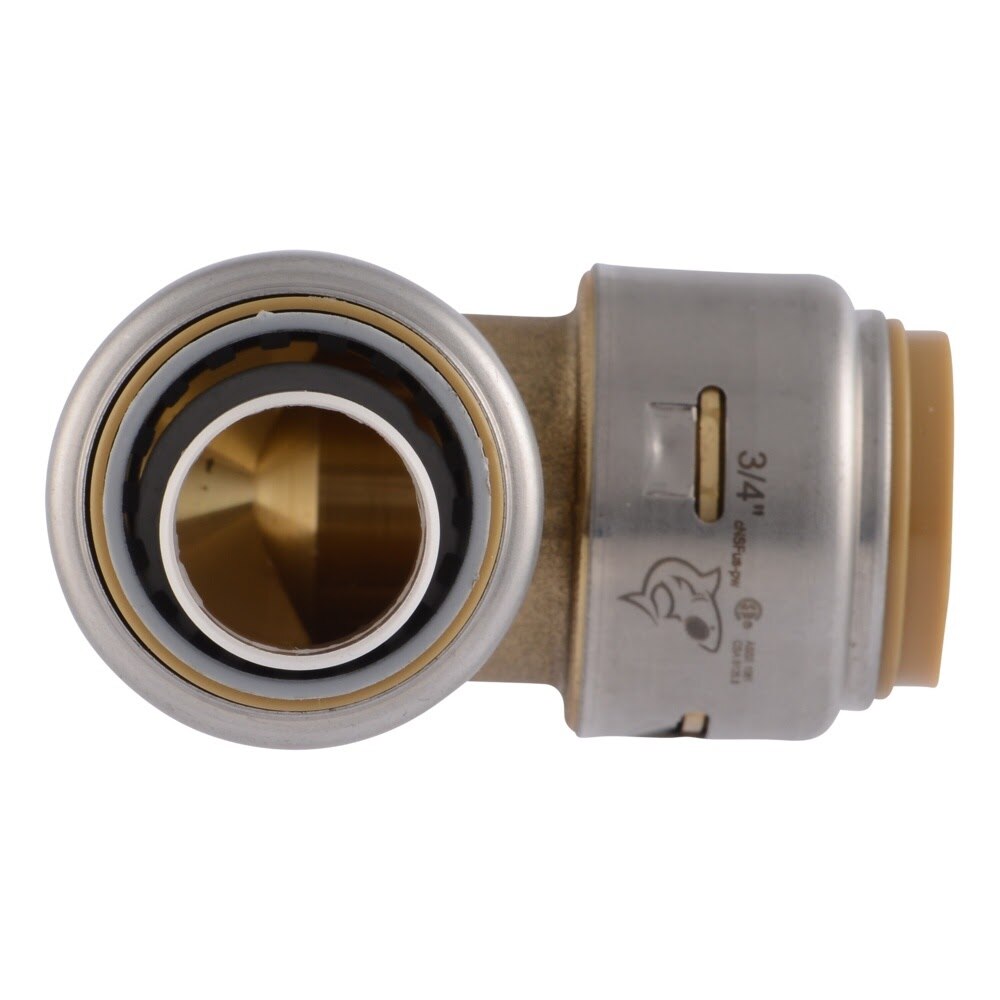

The SharkBite Max 3/4 in. transition elbow provides a push-to-connect 90 Degree connection between 3/4 in. polybutylene pipe and 3/4 in. CTS pipe. The gray collar identifies the PB side and the tan collar identifies the CTS side, which is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE. Built with a DZR lead-free brass body and stainless steel retainer, it installs without crimping, soldering, or glue, works on wet lines, and is rated for up to 200 F and 400 psi.
SharkBite UR4256A Includes
- (1) 3/4 in. PB x 3/4 in. CTS Max Transition Elbow
SharkBite UR4256A Features
- Connects 3/4 in. polybutylene pipe to 3/4 in. CTS pipe in a 90 Degree elbow configuration
- CTS side is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe
- Push-to-connect design installs without special tools, crimping, soldering, or glue
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Can be rotated after installation for easier alignment
- Rated for up to 200 F and 400 psi
- Color-coded collars help identify PB and CTS connection ends
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR4256A Specifications
| Product Type | Transition Elbow |
| Angle | 90 Degree |
| Size | 3/4 in. PB x 3/4 in. CTS |
| Connection Method | Push-to-Connect |
| PB Side | 3/4 in. Polybutylene |
| CTS Side Compatibility | PEX, copper, CPVC, PE-RT, and SDR-9 HDPE |
| Body Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Maximum Temperature | 200 F |
| Maximum Pressure | 400 psi |
| Collar Colors | Gray PB side, tan CTS side |
| Rotatable After Installation | Yes |
| Wet Line Installation | Yes |
| Removable | Yes |
| Shipping Weight | 0.24 lb |
