Description
SharkBite UR514A Description

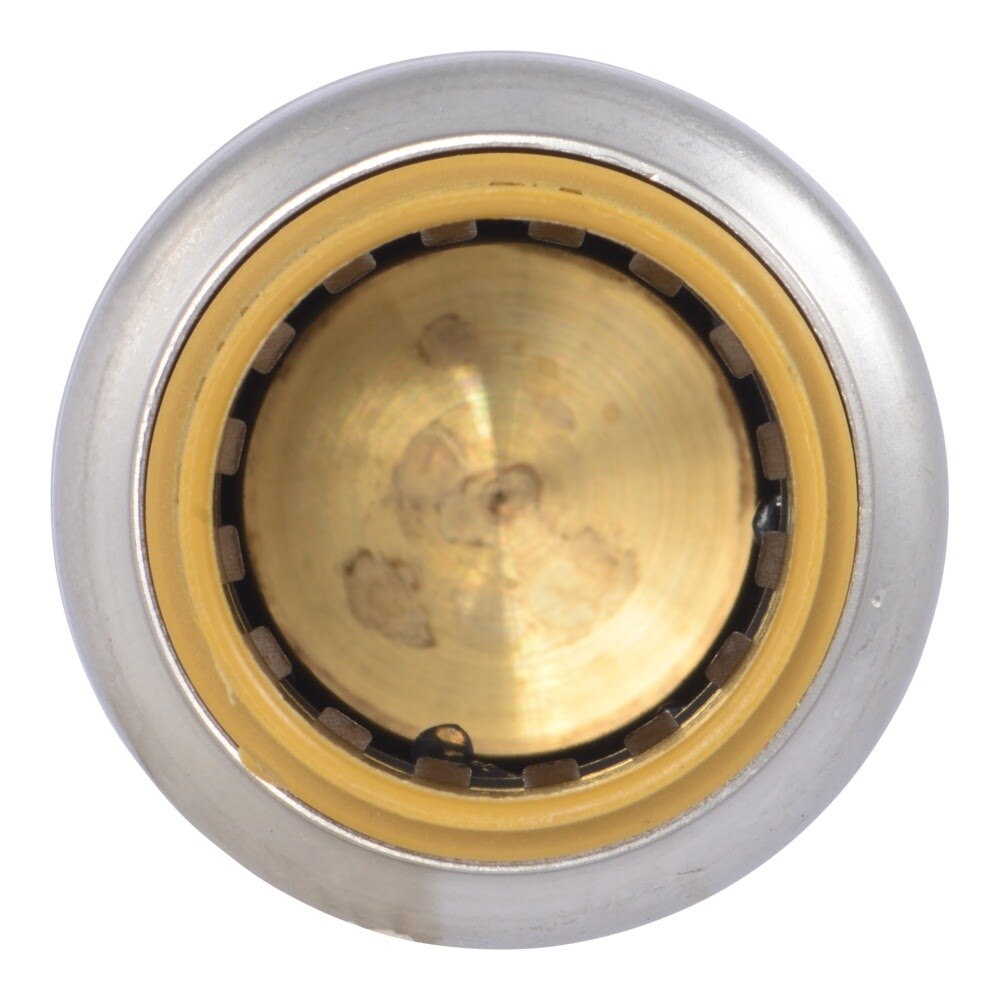

The SharkBite UR514A 1/2 in. Max Push End Cap is a push-to-connect fitting designed to plug the end of PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe. Its DZR lead-free brass body and stainless steel retainer deliver durable performance, while the no-tool design allows fast installation on wet lines with immediate pressure testing.
SharkBite UR514A Includes
- (1) 1/2 in. SharkBite Max Push End Cap
SharkBite UR514A Features
- Push-to-connect design plugs the end of PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Half the insertion force compared to SharkBite 1st Generation fittings
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 F and 400 psi
- Can be removed using a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR514A Specifications
| Product Type | Push-to-Connect End Cap |
| Nominal Size | 1/2 in. |
| Compatible Pipe Types | PEX, Copper, CPVC, PE-RT, HDPE SDR-9 |
| Body Material | DZR Lead-Free Brass |
| Retainer Material | Stainless Steel |
| Maximum Temperature | 200 F |
| Maximum Pressure | 400 psi |
| Wet Line Installation | Yes |
| PEX Tube Liner Required | No |
| Removable With | Disconnect Clip, Disconnect Tongs, or Pro Disconnect Tool |
| Shipping Weight | 0.06 lb |
