Description
SharkBite UR520A Description

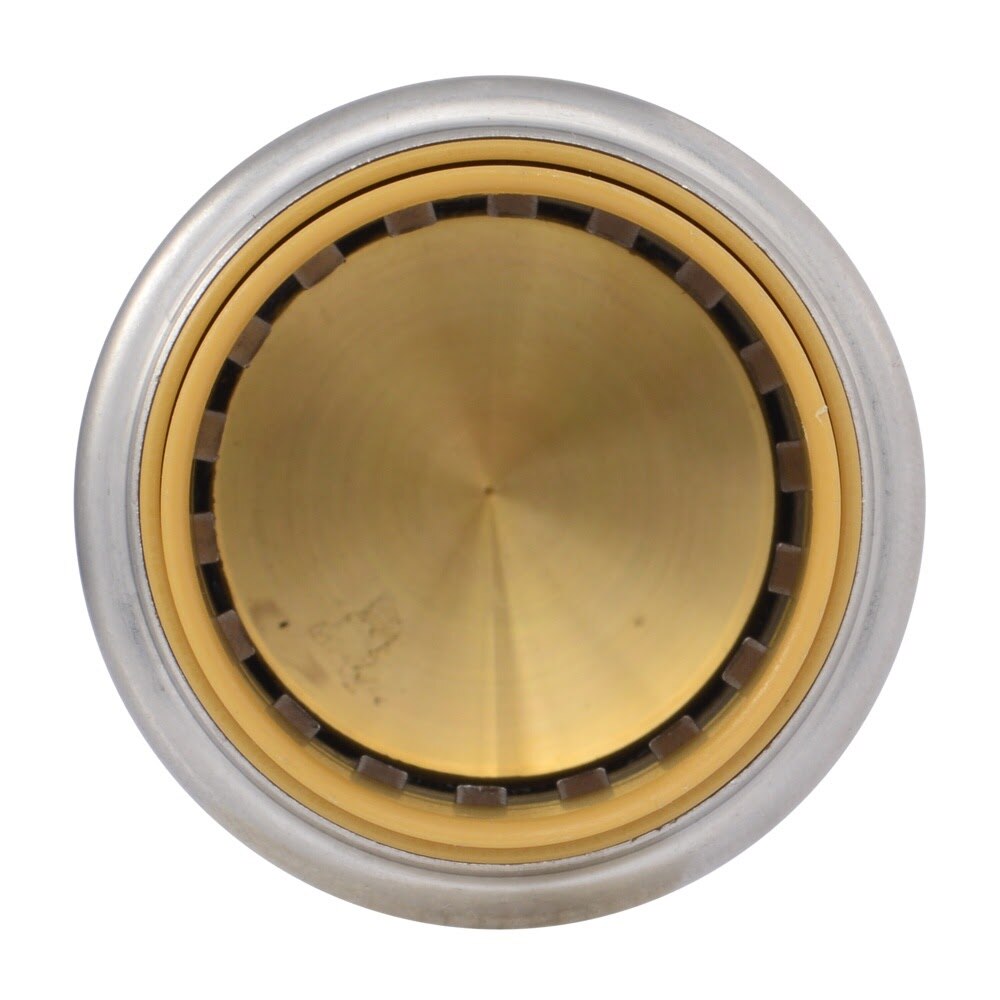

The SharkBite Max 1 in. push-to-connect brass end stop fitting provides a fast way to cap PEX, copper, CPVC, PE-RT, and HDPE pipe without soldering, clamps, unions, or glue. Built with a low-lead DZR corrosion-resistant brass body and stainless steel collet retainer, it can be installed on wet lines, pressure tested immediately, and is rated for up to 200 F and 400 psi.
SharkBite UR520A Includes
- (1) 1 in. SharkBite Max Push-to-Connect Brass End Stop Fitting
SharkBite UR520A Features
- Push-to-connect design for fast installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- No soldering, clamps, unions, or glue required
- Newly designed stainless steel collet retainer for added strength
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner not required
- Low-lead DZR corrosion-resistant brass body
- Approved for underground and behind-the-wall applications with wrapping required for underground burial
- Rated up to 200 F and 400 psi
- Code approved and IAPMO listed
SharkBite UR520A Specifications
| Series | SharkBite Max |
| Fitting Type | Cap / End Stop |
| Fitting Size | 1 in. |
| Connection Type | Push-to-Connect (PTC) |
| Material | Brass |
| Application | Potable Water |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE |
| Features | Removable; rotatable after installation |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Pack Size | 1 |
| Product Depth (in.) | 1.80 |
| Shipping Weight (lb.) | 0.31 |
