Description

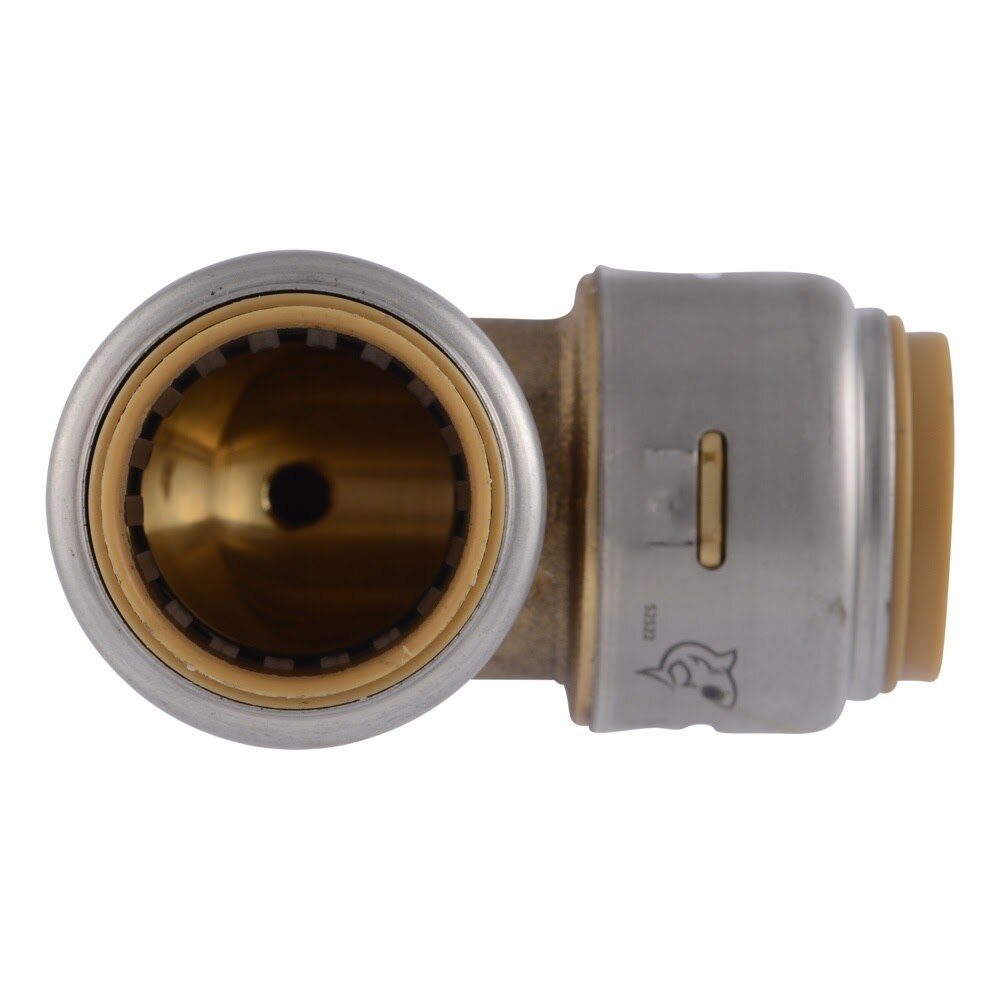

SharkBite UR5256A Description
The SharkBite Max 90 Degree elbow with 1/8 in. NPSM drain provides a fast push to connect solution for changing direction in plumbing lines while allowing water to be drained from the line for service or winterization. Designed for use with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe, it features a lead-free DZR brass body, stainless steel retainer, and installation without crimping, soldering, or glue.
SharkBite UR5256A Includes
- (1) SharkBite Max 90 Degree Elbow with 1/8 in. NPSM Drain
SharkBite UR5256A Features
- Push to connect design works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- 1/8 in. NPSM drain and vent allows water to be drained from lines
- Ideal for draining irrigation systems and winterizing hose bibbs
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- Lead-free DZR brass body supports long-lasting performance
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated for temperatures up to 200 DegreeF
SharkBite UR5256A Specifications
| Series | SharkBite Max |
| Product Type | 90 Degree Elbow with Drain/Vent |
| Fitting Size | 3/4 in. x 3/4 in. x 1/8 in. |
| Connection Type | Push to Connect |
| Angle | 90 Degree |
| Drain Thread Type | 1/8 in. NPSM |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Material | Lead-free DZR brass body with stainless steel retainer |
| Maximum Temperature | 200 DegreeF |
| Insertion Depth | 1-1/8 in. |
| Application | Plumbing, Heating |
| Lead Free | Yes |
| Each Length | 7.75 in. |
| Each Width | 4.30 in. |
| Each Height | 1.29 in. |
| Each Shipping Weight | 0.26 lb |
