Description

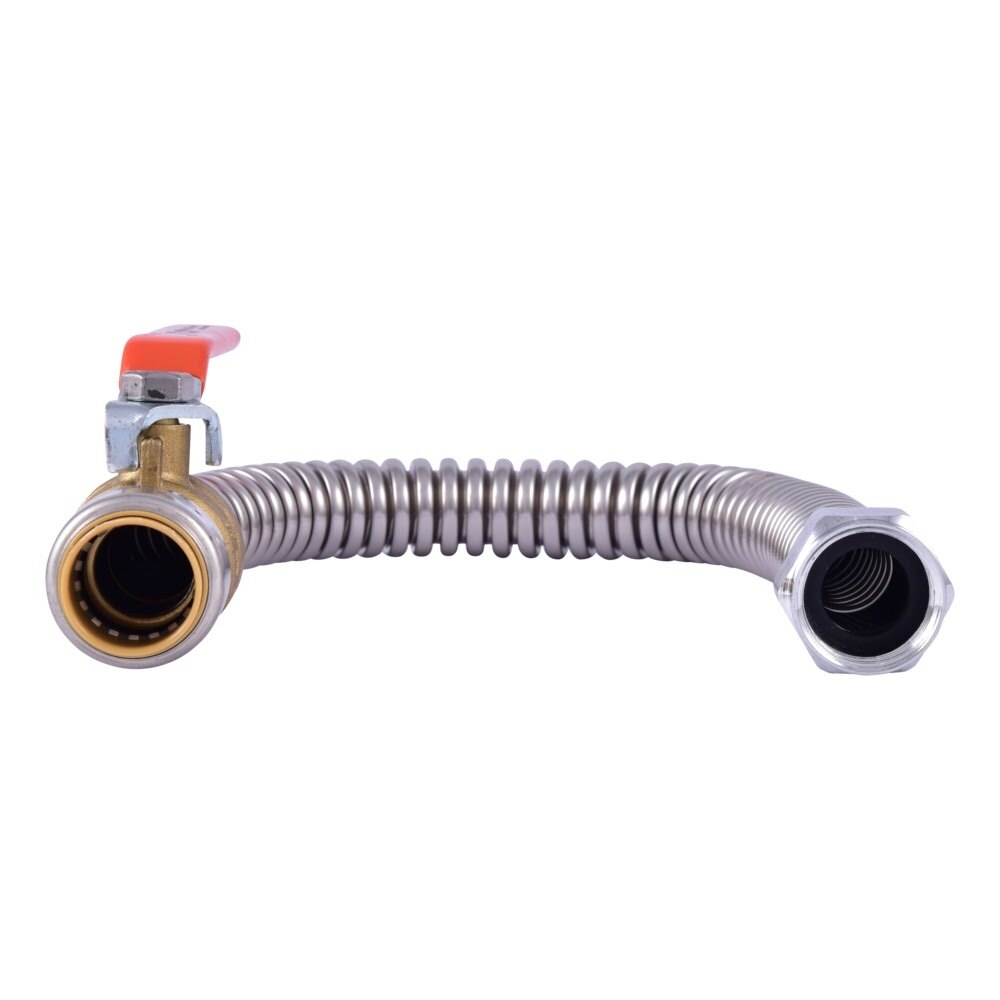

SharkBite URSS3088FX18BV Description
The SharkBite Max stainless steel corrugated water heater connector with ball valve helps speed up water heater hookups in tight spaces and simplifies connections where pipes do not line up. Its push-to-connect end installs without soldering, crimping, or glue, while the integrated ball valve provides convenient shutoff for electric or gas water heaters with a flue vent.
SharkBite URSS3088FX18BV Includes
- (1) 18 in. Stainless Steel Corrugated Water Heater Connector with Ball Valve
SharkBite URSS3088FX18BV Features
- Push-to-connect design speeds water heater installation
- Flexible corrugated hose helps connect water heaters to misaligned existing pipe in tight spaces
- Integrated ball valve allows easy shutoff
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- No special tools, crimping, soldering, or glue required
- Stainless steel retainer adds strength and durability
- Lead-free DZR brass fitting body
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 180 F and 200 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite URSS3088FX18BV Specifications
| Connection Size | 3/4 in. x 3/4 in. |
| Connector Length | 18 in. |
| Inlet Connection Type | Push-to-connect with ball valve |
| Outlet Connection Type | FIP |
| Hose Material | Stainless steel corrugated |
| Fitting Material | Lead-free DZR brass |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Temperature | 180 F |
| Maximum Pressure | 200 psi |
| Application | Electric or gas water heaters with a flue vent |
| Product Length (in) | 18.11 |
| Product Height (in) | 2.40 |
| Product Width (in) | 1.40 |
| Shipping Weight (lb) | 0.94 |
