SharkBite UXL0254 Description

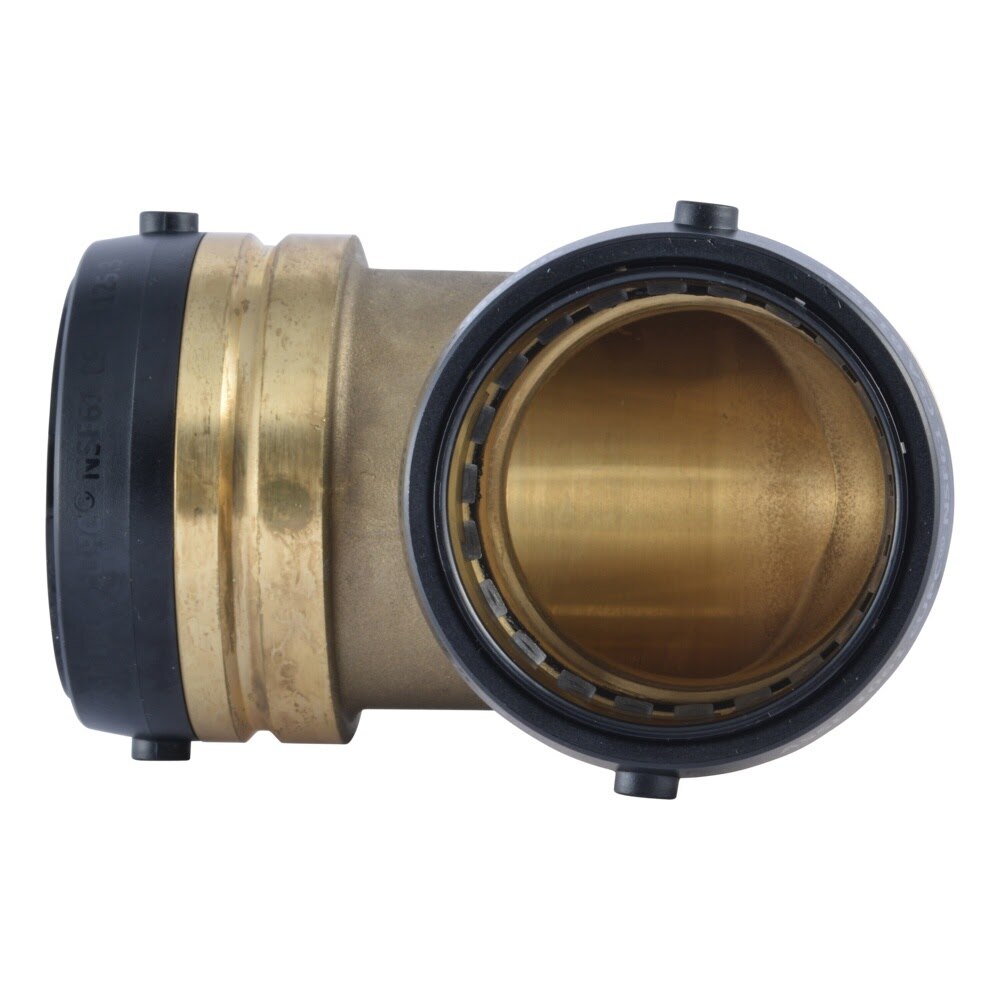

The SharkBite UXL0254 is a 2 in. x 2 in. brass push to connect 90 degree elbow designed to join two potable water pipes in tight spaces. Its push fit design installs quickly without soldering, crimping, glue, or special tools, and it is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe.
SharkBite UXL0254 Includes
- (1) 2 in. x 2 in. Brass Push to Connect 90 Degree Elbow
SharkBite UXL0254 Features
- Brass push to connect elbow joins two 2 in. pipes at a 90 degree angle
- Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe
- No special tools, crimping, glue, or soldering required
- Fast installation helps reduce errors when working in tight spaces
- Can be installed in wet lines
- Approved for underground and behind the wall applications when properly wrapped for burial
- UXL series fitting is rated up to 400 psi and 200 Degrees F
- Removable with a disconnect clip or disconnect tongs
- Large diameter PEX installations require a stiffener sold separately
- Lead free brass construction for potable water applications
SharkBite UXL0254 Specifications
| Manufacturer | SharkBite |
| Part Number | UXL0254 |
| Product Type | 90 Degree Elbow |
| Material | Lead Free Brass |
| Connection Type | Push to Connect |
| Inlet Size | 2 in. |
| Outlet Size | 2 in. |
| Angle | 90 Degree |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, and SDR-9 HDPE |
| Pressure Rating | 400 psi |
| Maximum Temperature | 200 Degrees F |
| Wet Line Compatible | Yes |
| Underground or Behind Wall Use | Yes |
| PEX Stiffener Required | Yes, for 1-1/4 in. to 2 in. PEX connections |
| Product Length (in) | 10.50 |
| Product Width (in) | 10.13 |
| Product Height (in) | 2.72 |
| Product Weight (lb) | 1.60 |
