Description

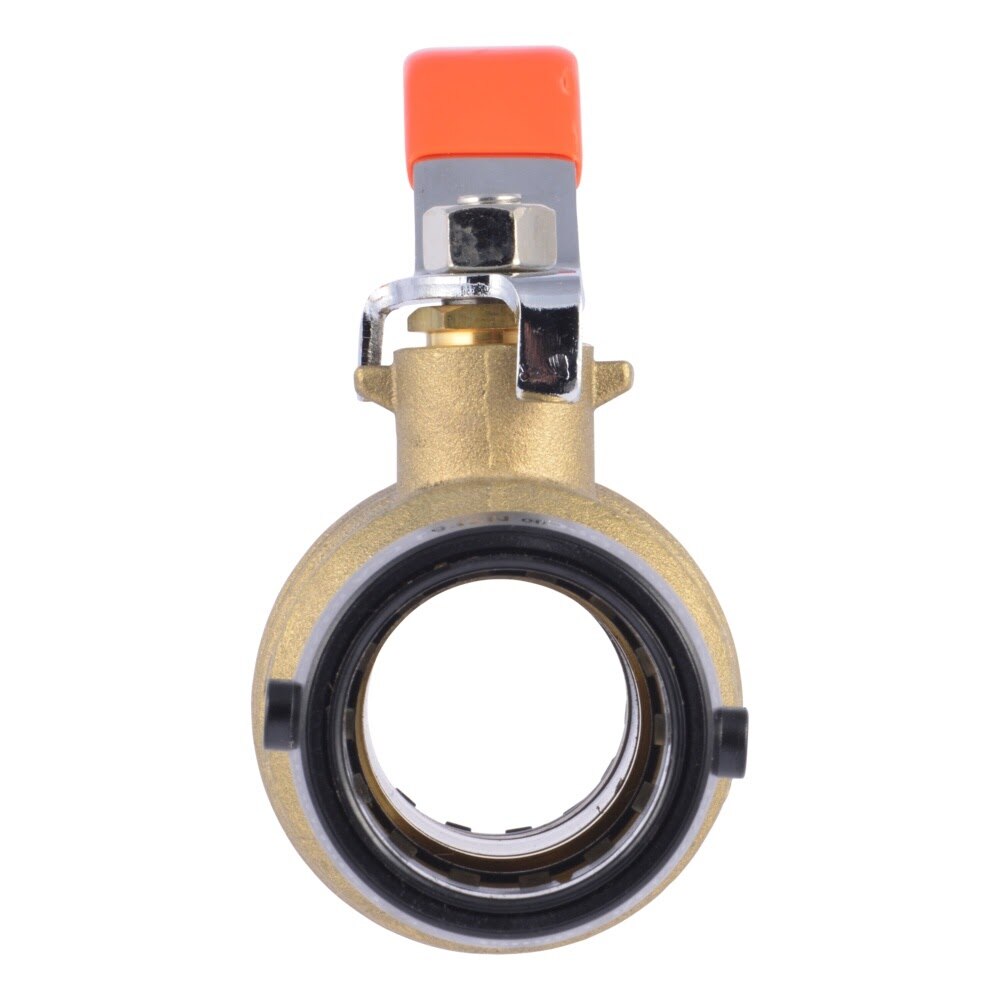

SharkBite UXLBV35 Description
The SharkBite UXLBV35 is a 1-1/4 in. brass push-to-connect quarter-turn ball valve designed for potable water applications. Its PTC x PTC connections install quickly on PEX, copper, CPVC, PE-RT, and HDPE pipe without special tools, and the valve can be installed on wet or dry lines for immediate pressure testing.
SharkBite UXLBV35 Includes
- (1) 1-1/4 in. Brass Push-to-Connect Quarter-Turn Ball Valve
SharkBite UXLBV35 Features
- Push-to-connect design allows fast installation in tight spaces
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Quarter-turn lever handle provides easy on/off control
- No special tools required for installation on hot or cold water lines
- Can be installed on wet or dry lines and pressure tested immediately
- Rotatable after installation and removable with a disconnect tool
- Lead-free DZR corrosion-resistant brass body
- Rated for up to 200 PSI and 200 F
- Approved for underground and behind-the-wall applications when properly wrapped for burial
- Designed for potable water applications
SharkBite UXLBV35 Specifications
| Application | Potable Water |
| Compatible Pipe Materials | PEX, Copper, CPVC, PE-RT, HDPE |
| Connection | PTC x PTC |
| Valve Type | Ball Valve |
| Operation | Quarter Turn |
| Handle Style | Lever |
| Material | Brass |
| Lead Free | Yes |
| Indoor/Outdoor | Indoor |
| Maximum Pressure | 200 PSI |
| Maximum Working Temperature | 200 F |
| Inlet Diameter | 1-1/4 in. |
| Outlet Diameter | 1-1/4 in. |
| Product Length | 8.28 in. |
| Product Width | 4.35 in. |
| Product Height | 1.88 in. |
| Product Weight | 2.14 lb |
| Pack Size | 1 |
