Description
Viega 28885 Description

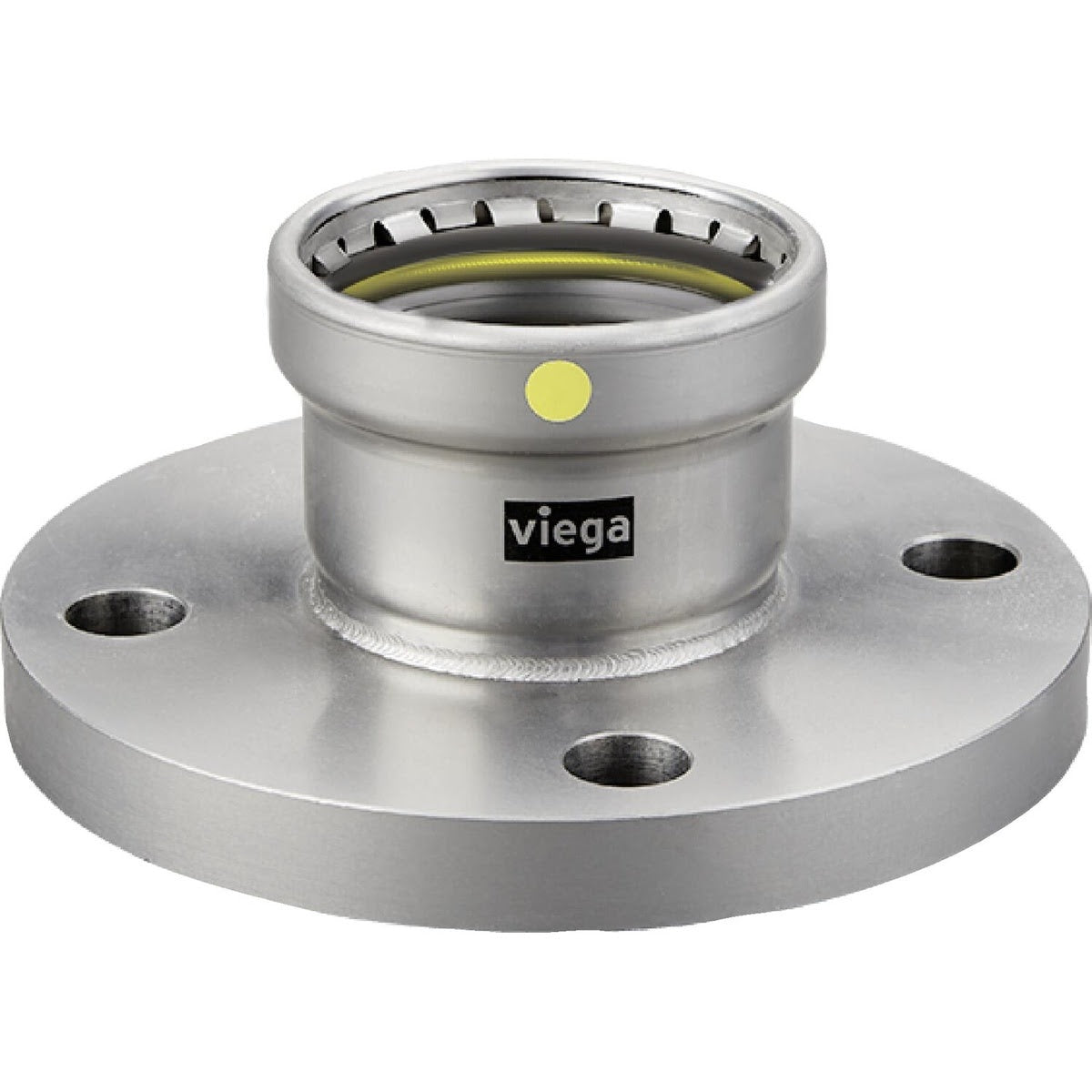

The Viega MegaPressG flange provides a press connection to a flat faced Class 125 flange for use with Schedule 10 to Schedule 40 carbon steel pipe. Made from carbon steel with a zinc-nickel coating, it features Smart Connect Technology and is designed for use with MegaPress XL rings and a PressBooster/Z3 actuator.
Viega 28885 Includes
- (1) Viega MegaPressG flange
Viega 28885 Features
- Press connection with flat faced flange design
- For use with Schedule 10 to Schedule 40 carbon steel pipe
- Carbon steel construction with zinc-nickel coating
- Class 125 flat face flange
- Smart Connect Technology
- Components include HNBR sealing element, grip ring, and separator ring
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 28885 Specifications
| Product Type | Flange |
| Series | MegaPressG |
| Model | 6659.5XL |
| Pipe Size | 4 in |
| Connection Type | Press |
| Flange Face Type | Flat faced |
| Flange Class | Class 125 |
| Compatible Pipe Schedule | Sch. 10 to Sch. 40 |
| Material | Carbon steel |
| Coating | Zinc-nickel |
| Bolt Pattern | 8 |
| Bolt Circle Diameter | 7 1/2 in |
| Country of Origin | DE |
| Manufacturer Material Number | 697894 |
| Unit of Measure | PC |
| Product Length | 9.055 in |
| Product Width | 9.055 in |
| Product Height | 4.953 in |
| Shipping Weight | 13.874 lb |
