Description
Viega 91200 Description

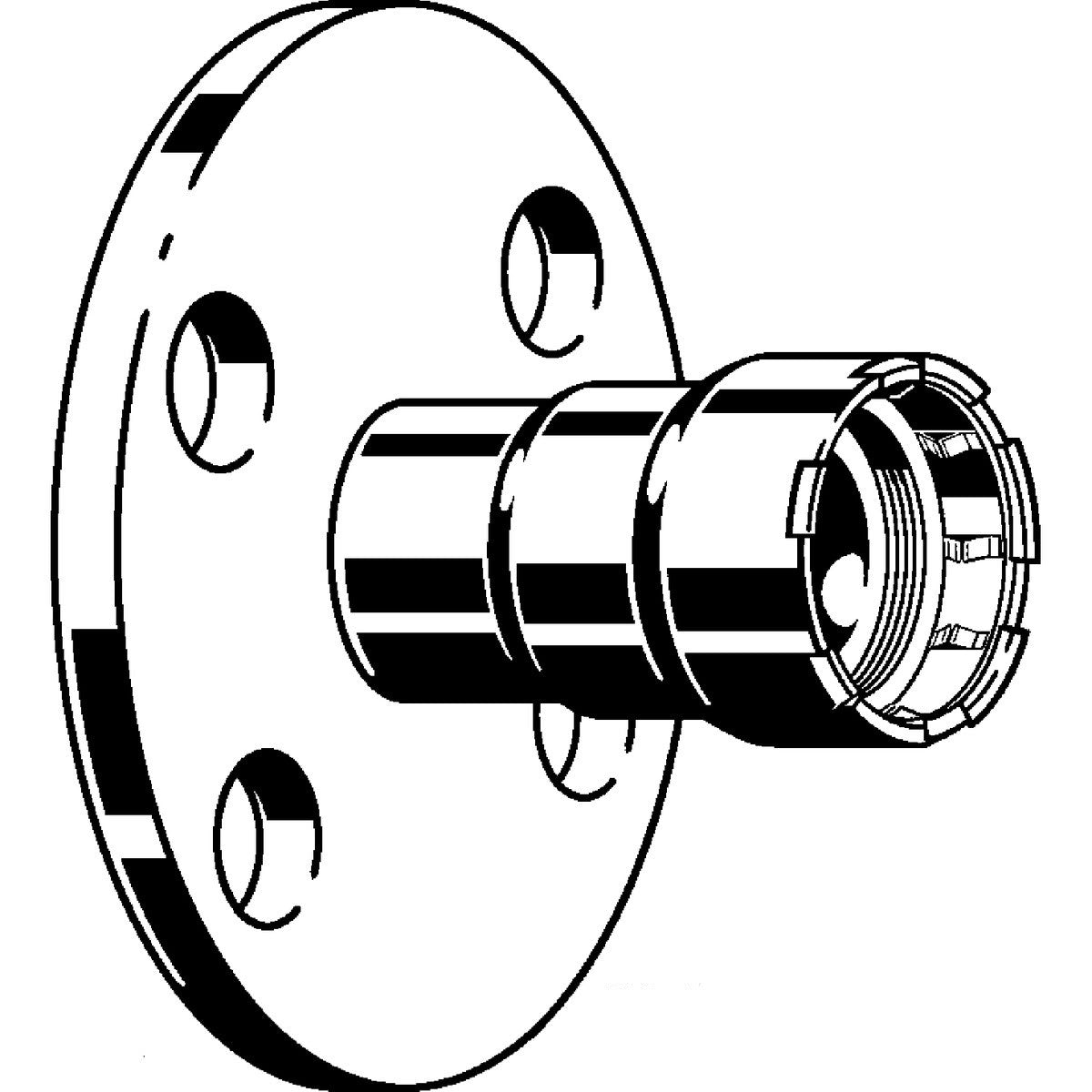

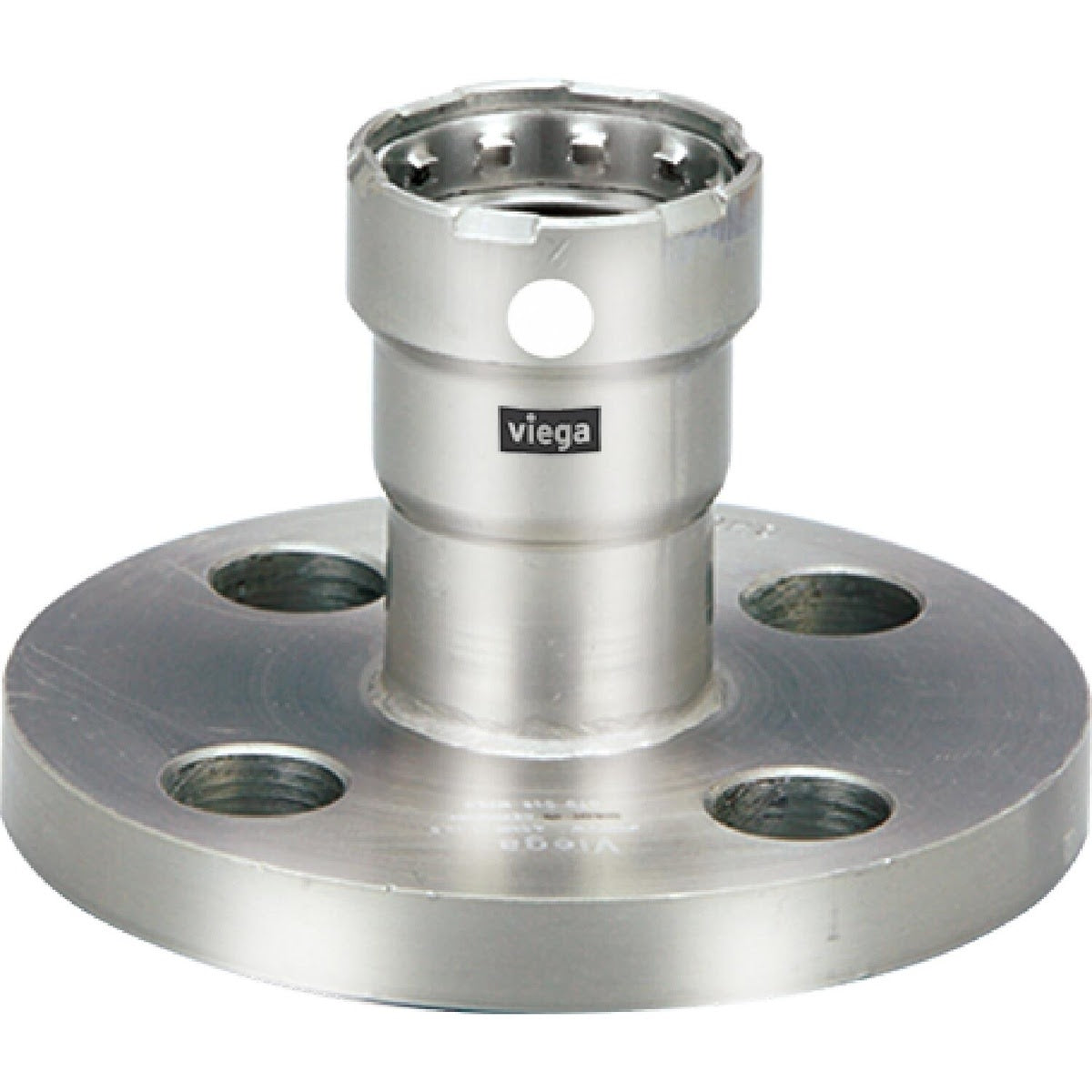

The Viega MegaPress 316 FKM flange is a 316 stainless steel press connection flange designed for use with Schedule 5 through Schedule 40 stainless steel pipe. It features a Class 150 raised face flange for secure piping connections and includes an FKM sealing element with integrated grip and separator rings.
Viega 91200 Includes
- (1) Viega MegaPress flange
Viega 91200 Features
- 316 stainless steel construction for corrosion resistance
- Press connection design for fast installation
- Class 150 raised face flange
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- Smart Connect Technology
- Includes FKM sealing element, grip ring, and separator ring
Viega 91200 Specifications
| Series | MegaPress 316 FKM |
| Material | 316 stainless steel |
| Connection Type | Press |
| Flange Class | Class 150 |
| Flange Face | Raised Face |
| Seal Material | FKM |
| Compatible Pipe Schedule | Sch. 5 to Sch. 40 stainless steel pipe |
| Press Size P | 2 in |
| Bolt Pattern BP | 4 |
| Bolt Pattern Diameter BPd | 4 3/4 in |
| Country of Origin | DE |
| Item Length (in) | 6.142 |
| Item Width (in) | 6.142 |
| Item Height (in) | 3.606 |
| Item Shipping Weight (lb) | 5.444 |
